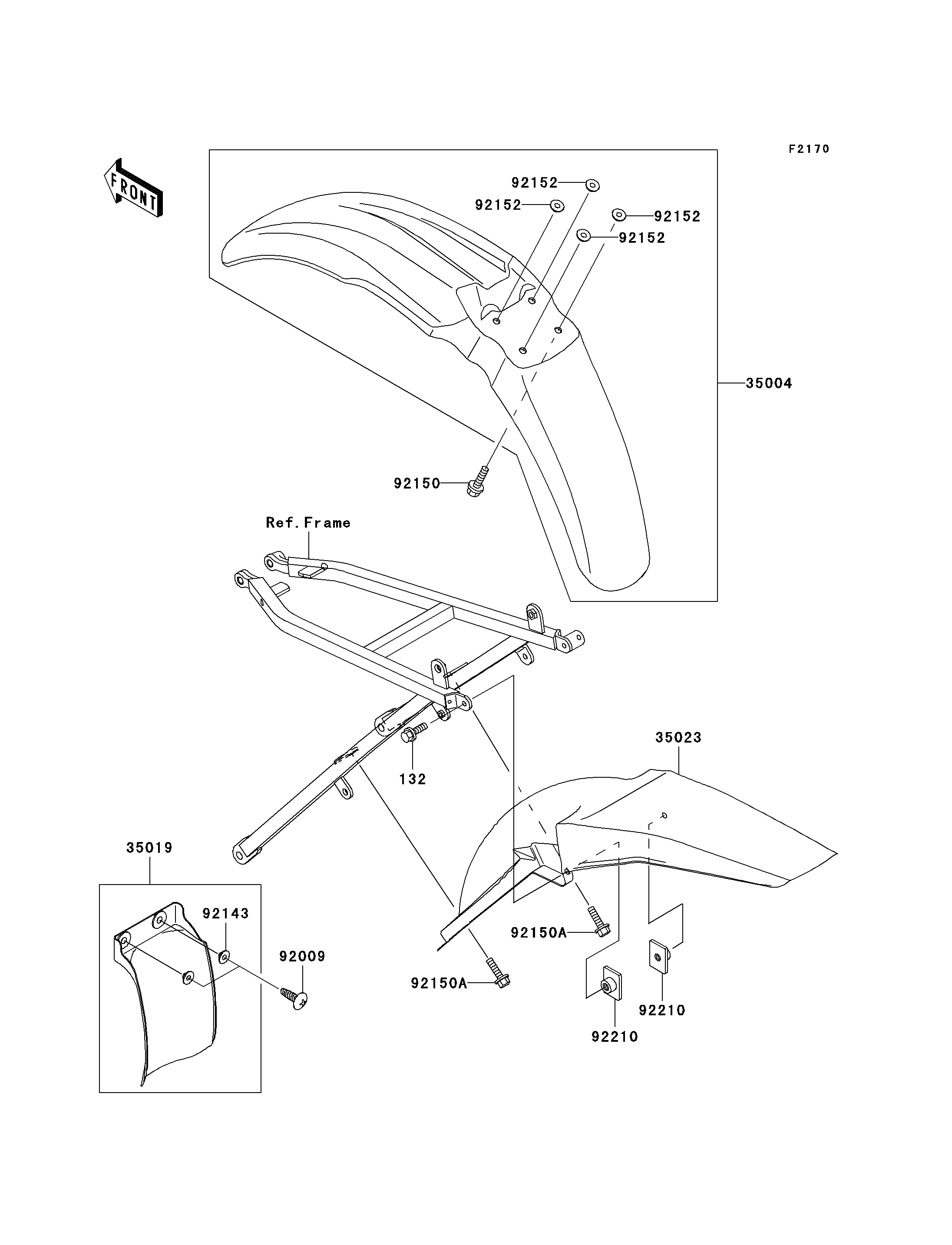

132
35004
35019
35023
92009
92143
92150
92150A
92150A
92152
92152
92152
92152
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0614 1
FENDER-FRONT,L.GREEN 35004 35004-1460-6W 1
FLAP,AIR FILTER,F.BLACK 35019 35019-1402-6Z 1
FENDER-REAR,L.GREEN 35023 35023-1587-6W 1
SCREW,TAPPING,5X20 92009 92009-1993 2
COLLAR 92143 92143-1087 2
BOLT,6X20 92150 92150-1339 4
BOLT,FLANGED,6X22 92150A 92150-1481 2
COLLAR 92152 92152-1422 4
NUT,PLATE,6MM 92210 92210-1352 2
