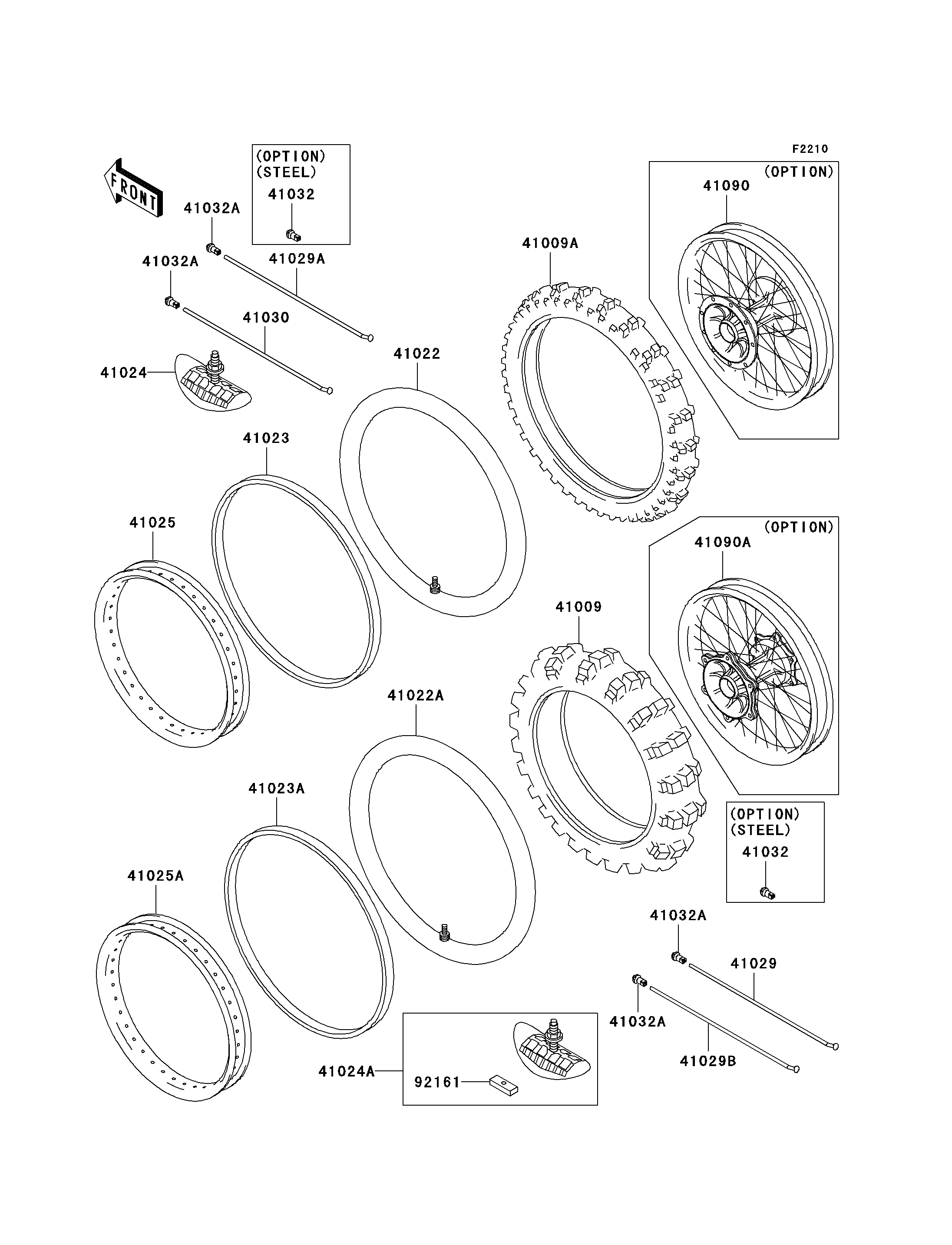

2003 KX125 - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41029B
41030
41032
41032
41032A
41032A
41032A
41032A
41090
41090A
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,RR,100/90-19 57M,D739(D) 41009 41009-1241 1
TIRE,FR,80/100-21 51M,D739FA(D 41009A 41009-1293 1
TUBE-TIRE,80/100-21(D) 41022 41022-1118 1
TUBE-TIRE,100/90-19(D) 41022A 41022-1129 1
BAND-RIM,80/100-21(D) 41023 41023-1069 1
BAND-RIM,90.100/90-19(D) 41023A 41023-1074 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
STOPPER-RIM,1.85-M(DUNLOP) 41024A 41024-011 1
RIM,FR,1.60X21 41025 41025-1377 1
RIM,RR,1.85X19 41025A 41025-1435 1
SPOKE-INNER,RR,202MMX160D 41029 41029-1204 27
SPOKE-INNER,FR,230MMX165D 41029A 41029-1295 27
SPOKE-INNER,RR,204MMX159D 41029B 41029-1330 9
SPOKE-OUTER,FR,231.5MMX170D 41030 41030-1165 9
NIPPLE-SPOKE,STEEL 41032 41032-1085 72 (OPTION)
NIPPLE-SPOKE,ALUMINIUM 41032A 41032-1086 72
WHEEL,FR,1.60X21,ALUM NIPPLE 41090 41090-1150 1 (OPTION)
WHEEL,RR,1.85X19,ALUM NIPPLE 41090A 41090-1151 1 (OPTION)
DAMPER,RIM STOPPER 92161 92161-1184 1
