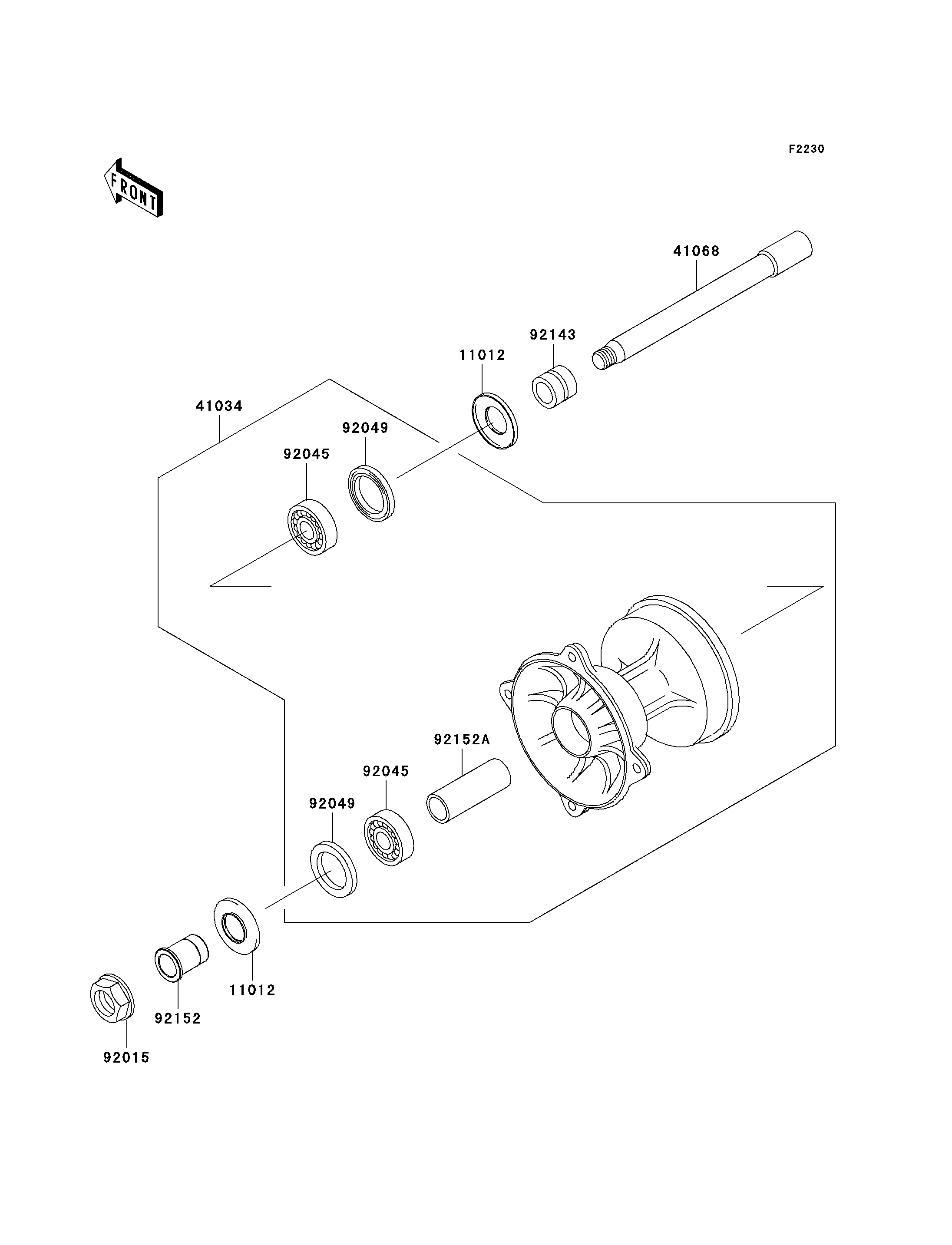

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AXLE 11012 11012-1581 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1346 1
AXLE,FR 41068 41068-1406 1
NUT,16MM 92015 92015-1465 1
BEARING-BALL,69042RS 92045 92045-1284 2
SEAL-OIL,BJNC-2 25X37X5 92049 92049-1403 2
COLLAR,FR AXLE,L=20 92143 92143-1581 1
COLLAR,FR AXLE,L=36 92152 92152-1097 1
COLLAR,FRONT BRAKE DRUM,L=72 92152A 92152-1472 1
