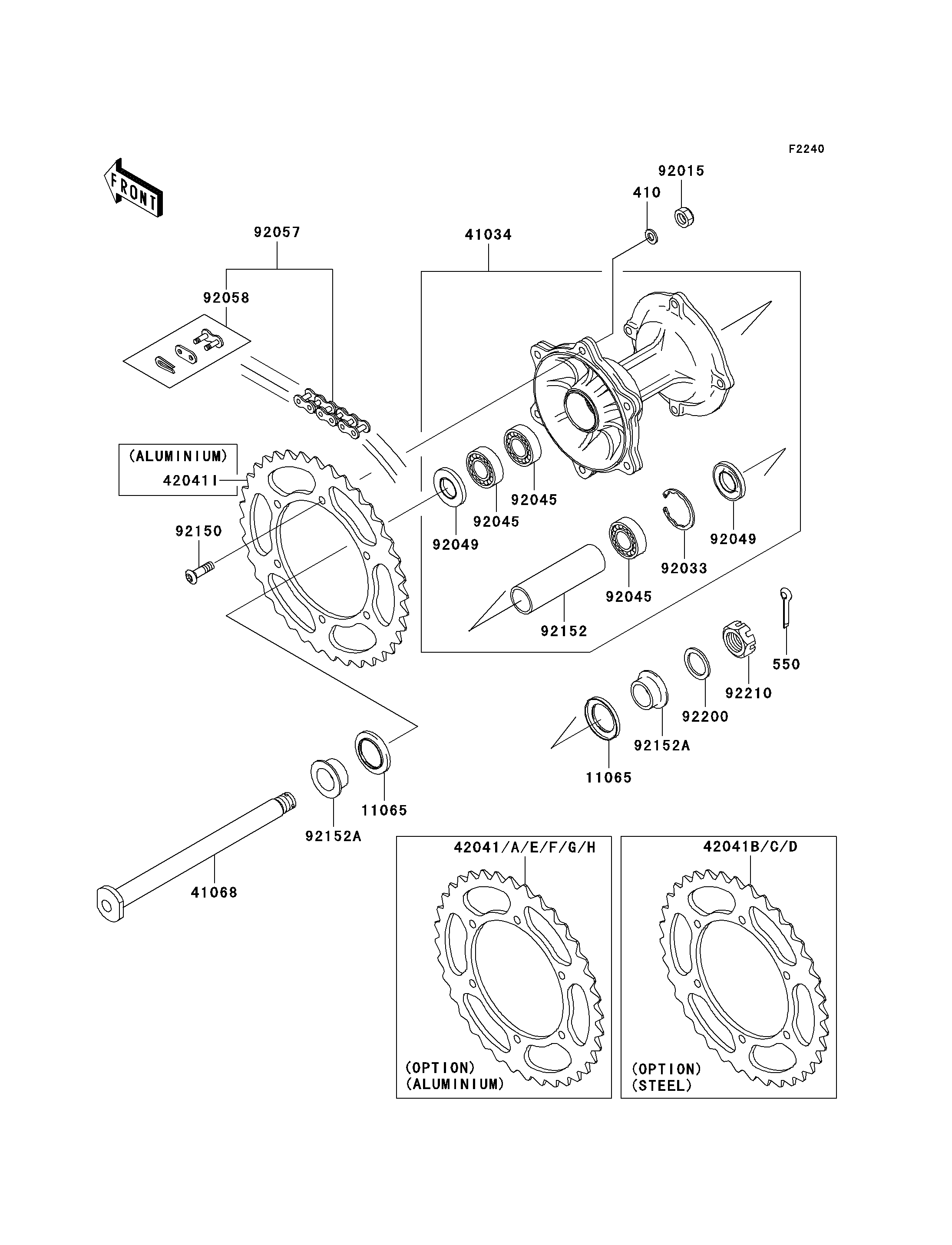

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
410
550
11065
11065
41034
41068
42041
42041A
42041B
42041C
42041D
42041E
42041F
42041G
42041H
42041I
92015
92033
92045
92045
92045
92049
92049
92057
92058
92150
92152
92152A
92152A
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 6 | ||
PIN-COTTER,3.0X35 | 550 | 550D3035 | 1 | ||
CAP,AXLE | 11065 | 11065-1253 | 2 | ||
DRUM-ASSY,REAR BRAKE | 41034 | 41034-0004 | 1 | ||
AXLE,RR | 41068 | 41068-1466 | 1 | ||
SPROCKET-HUB,52T,AL | 42041 | 42041-0001 | 1 | (OPTION) | |
SPROCKET-HUB,53T,AL | 42041A | 42041-0002 | 1 | (OPTION) | |
SPROCKET-HUB,50T | 42041B | 42041-1408 | 1 | (OPTION) | |
SPROCKET-HUB,51T | 42041C | 42041-1428 | 1 | (OPTION) | |
SPROCKET-HUB,52T | 42041D | 42041-1429 | 1 | (OPTION) | |
SPROCKET-HUB,47T,AL | 42041E | 42041-1447 | 1 | (OPTION) | |
SPROCKET-HUB,48T,AL | 42041F | 42041-1448 | 1 | (OPTION) | |
SPROCKET-HUB,49T,AL | 42041G | 42041-1449 | 1 | (OPTION) | |
SPROCKET-HUB,50T,AL | 42041H | 42041-1450 | 1 | (OPTION) | |
SPROCKET-HUB,51T,AL | 42041I | 42041-1451 | 1 | ||
NUT,8MM | 92015 | 92015-1432 | 6 | ||
RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
BEARING-BALL,69052RS | 92045 | 92045-1446 | 3 | ||
SEAL-OIL | 92049 | 92049-1614 | 2 | ||
CHAIN,DRIVE,DID520DMA2SDHX110L | 92057 | 92057-1540 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-1074 | 1 | ||
BOLT,SOCKET,8X28 | 92150 | 92150-1978 | 6 | ||
COLLAR,REAR BRAKE DRUM,L=106.5 | 92152 | 92152-1427 | 1 | ||
COLLAR,RR AXLE,L=17 | 92152A | 92152-1473 | 2 | ||
WASHER,22.5X35X2.3 | 92200 | 92200-1623 | 1 | ||
NUT,CASTLE,22MM | 92210 | 92210-1411 | 1 |
WASHER-PLAIN-SMALL,8MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PIN-COTTER,3.0X35 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,AXLE | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DRUM-ASSY,REAR BRAKE | |
REF # | 41034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,RR | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,52T,AL | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,53T,AL | |
REF # | 42041A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,50T | |
REF # | 42041B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,51T | |
REF # | 42041C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,52T | |
REF # | 42041D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,47T,AL | |
REF # | 42041E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,48T,AL | |
REF # | 42041F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,49T,AL | |
REF # | 42041G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,50T,AL | |
REF # | 42041H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPROCKET-HUB,51T,AL | |
REF # | 42041I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
RING-SNAP,42MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,69052RS | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,DRIVE,DID520DMA2SDHX110L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-CHAIN,DRIVE | |
REF # | 92058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,8X28 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COLLAR,REAR BRAKE DRUM,L=106.5 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,L=17 | |
REF # | 92152A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,22.5X35X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CASTLE,22MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
