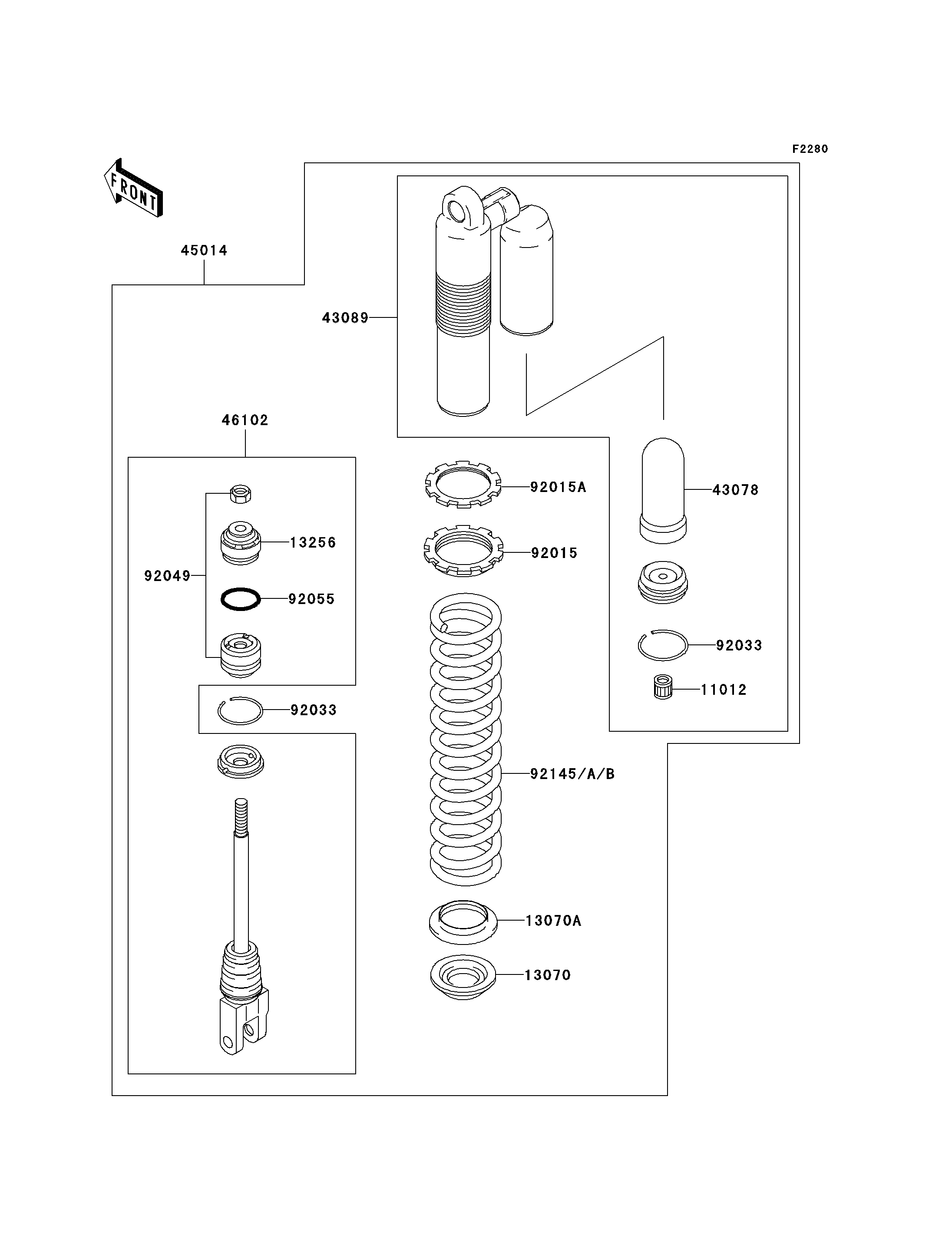

Parts Diagrams |
11012
13070
13070A
13256
43078
43089
45014
46102
92015
92015A
92033
92033
92049
92055
92145
92145A
92145B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,AIR VALVE | 11012 | 11012-1552 | 1 | ||
GUIDE,SPRING | 13070 | 13070-1361 | 1 | ||
GUIDE,SPRING | 13070A | 13070-1362 | 1 | ||
PISTON,SHOCKABSORBER | 13256 | 13256-1062 | 1 | ||
RESERVOIR,SHOCKABSORBER | 43078 | 43078-1125 | 1 | ||
CYLINDER-SHOCKABSORBER | 43089 | 43089-1170 | 1 | ||
SHOCKABSORBER,I.SILVER | 45014 | 45014-1809-8V | 1 | ||
ROD,SHOCKABSORBER | 46102 | 46102-1471 | 1 | ||
NUT,SPRING ADJUST | 92015 | 92015-1703 | 1 | ||
NUT,SPRING ADJUST LOCK | 92015A | 92015-1704 | 1 | ||
RING-SNAP | 92033 | 92033-1209 | 2 | ||
SEAL-OIL | 92049 | 92049-1582 | 1 | ||
RING-O,ROD | 92055 | 92055-1346 | 1 | ||
SPRING,SHOCKABSORBER,K=4.7,SIL | 92145 | 92145-0013-8V | 1 | (OPTION) | |
SPRING,SHOCKABSORBER,K=4.9,SIL | 92145A | 92145-0014-8V | 1 | ||
SPRING,SHOCKABSORBER,K=5.1,SIL | 92145B | 92145-0015-8V | 1 | (OPTION) |
CAP,AIR VALVE | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,SPRING | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE,SPRING | |
REF # | 13070A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON,SHOCKABSORBER | |
REF # | 13256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR,SHOCKABSORBER | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-SHOCKABSORBER | |
REF # | 43089 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOCKABSORBER,I.SILVER | |
REF # | 45014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,SHOCKABSORBER | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,SPRING ADJUST | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,SPRING ADJUST LOCK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ROD | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,SHOCKABSORBER,K=4.7,SIL | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPRING,SHOCKABSORBER,K=4.9,SIL | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,SHOCKABSORBER,K=5.1,SIL | |
REF # | 92145B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
