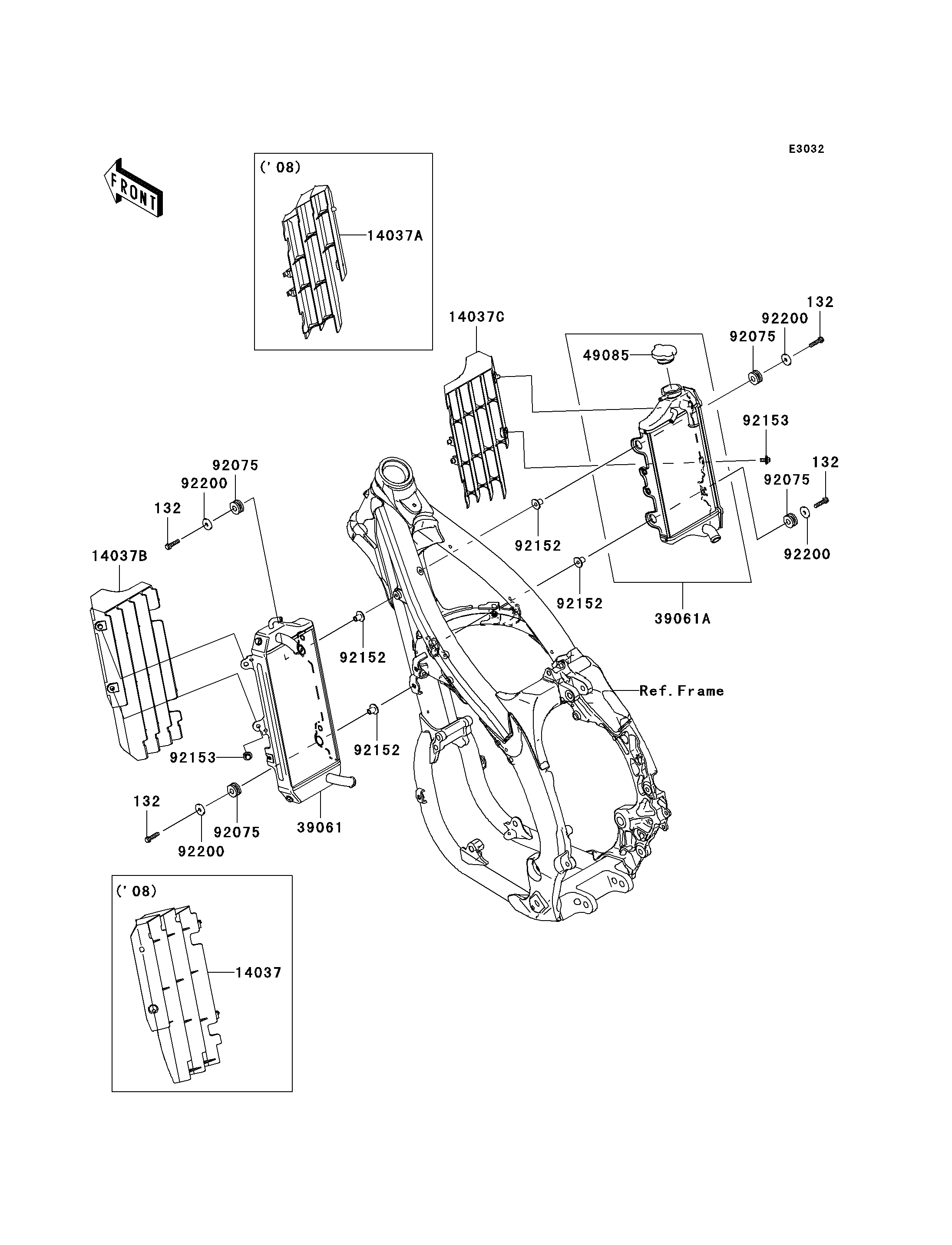

Parts Diagrams |
132
132
132
132
14037B
14037C
39061
39061A
49085
92075
92075
92075
92075
92152
92152
92152
92152
92153
92153
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X25 | 132 | 132BB0625 | 4 | ||
| SCREEN,LH,WHITE | 14037B | 14037-0092-RZ | 1 | ||
| SCREEN,RH,WHITE | 14037C | 14037-0093-RZ | 1 | ||
| RADIATOR-ASSY,LH | 39061 | 39061-0052 | 1 | ||
| RADIATOR-ASSY,RH | 39061A | 39061-0086 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1078 | 1 | ||
| DAMPER | 92075 | 92075-209 | 4 | ||
| COLLAR,L=12.6,T=1.6 | 92152 | 92152-0379 | 4 | ||
| BOLT,6X12 | 92153 | 92153-0503 | 2 | ||
| WASHER,6.5X22X2.3 | 92200 | 92200-0271 | 4 |
| BOLT-FLANGED-SMALL,6X25 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREEN,LH,WHITE | |
| REF # | 14037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN,RH,WHITE | |
| REF # | 14037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY,LH | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY,RH | |
| REF # | 39061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=12.6,T=1.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
