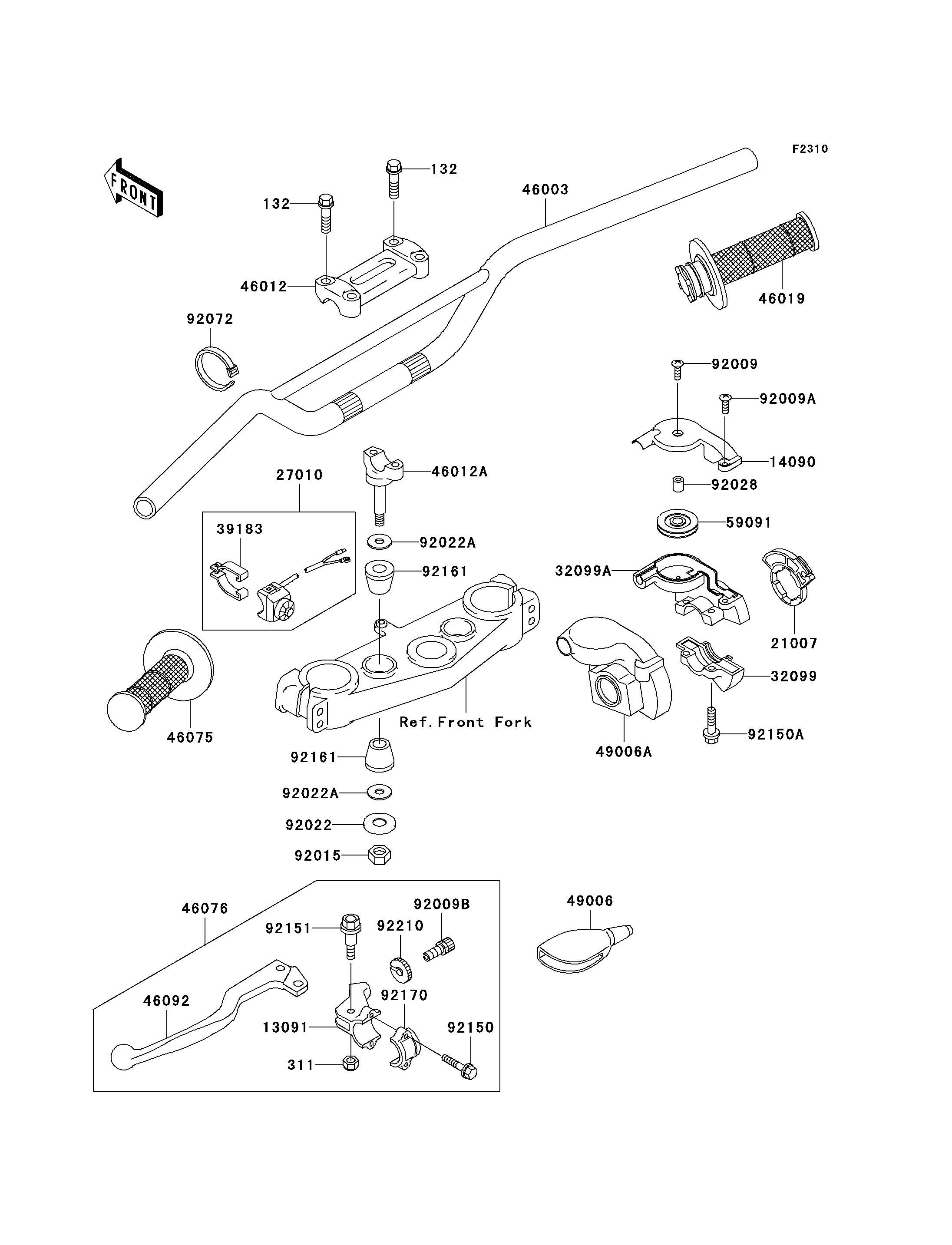

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132
311
13091
14090
21007
27010
32099
32099A
39183
46003
46012
46012A
46019
46075
46076
46092
49006
49006A
59091
92009
92009A
92009B
92015
92022
92022A
92022A
92028
92072
92150
92150A
92151
92161
92161
92170
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0830 | 4 | ||
NUT-HEX | 311 | 311B0500 | 1 | ||
HOLDER,CLUTCH LEVER | 13091 | 13091-1728 | 1 | ||
COVER,THROTTLE CASE,UPP | 14090 | 14090-1161 | 1 | ||
ROTOR,THROTTLE | 21007 | 21007-1242 | 1 | ||
SWITCH,ENGINE STOP | 27010 | 27010-1458 | 1 | ||
CASE,THROTTLE,LWR | 32099 | 32099-1138 | 1 | ||
CASE,THROTTLE,UPP | 32099A | 32099-1168 | 1 | ||
BAND-ASSY,ENGINE STOP SWITCH | 39183 | 39183-1059 | 1 | ||
HANDLE,SILVER | 46003 | 46003-1582-CE | 1 | ||
HOLDER-HANDLE,UPP | 46012 | 46012-1190 | 1 | ||
HOLDER-HANDLE,LWR | 46012A | 46012-1264 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1125 | 1 | ||
GRIP,LH | 46075 | 46075-1213 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1241 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1165 | 1 | ||
BOOT,LEVER HOLDER | 49006 | 49006-1017 | 1 | ||
BOOT,THROTTLE | 49006A | 49006-1301 | 1 | ||
PULLEY,THROTTLE | 59091 | 59091-1102 | 1 | ||
SCREW | 92009 | 92009-1674 | 1 | ||
SCREW | 92009A | 92009-1675 | 1 | ||
SCREW,CABLE ADJUST,8MM | 92009B | 92009-1970 | 1 | ||
NUT,LOCK,10MM | 92015 | 92015-1962 | 2 | ||
WASHER,10.2X28X2 | 92022 | 92022-1088 | 2 | ||
WASHER | 92022A | 92022-1737 | 4 | ||
BUSHING,THROTTLE CASE | 92028 | 92028-1658 | 1 | ||
BAND,L=140 | 92072 | 92072-1293 | 1 | ||
BOLT | 92150 | 92150-1474 | 2 | ||
BOLT | 92150A | 92150-1559 | 2 | ||
BOLT,LEVER SET,5MM | 92151 | 92151-1103 | 1 | ||
DAMPER | 92161 | 92161-1195 | 4 | ||
CLAMP,LEVER HOLDER | 92170 | 92170-1226 | 1 | ||
NUT,CABLE ADJUST LOCK,8MM | 92210 | 92210-1307 | 1 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH LEVER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,THROTTLE CASE,UPP | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR,THROTTLE | |
REF # | 21007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,ENGINE STOP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE,LWR | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE,UPP | |
REF # | 32099A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-ASSY,ENGINE STOP SWITCH | |
REF # | 39183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLE,SILVER | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,UPP | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,LWR | |
REF # | 46012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GRIP-ASSY,THROTTLE | |
REF # | 46019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,LH | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,CLUTCH | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CLUTCH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,LEVER HOLDER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,THROTTLE | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PULLEY,THROTTLE | |
REF # | 59091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST,8MM | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,10.2X28X2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,THROTTLE CASE | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=140 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,LEVER SET,5MM | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,LEVER HOLDER | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOCK,8MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
