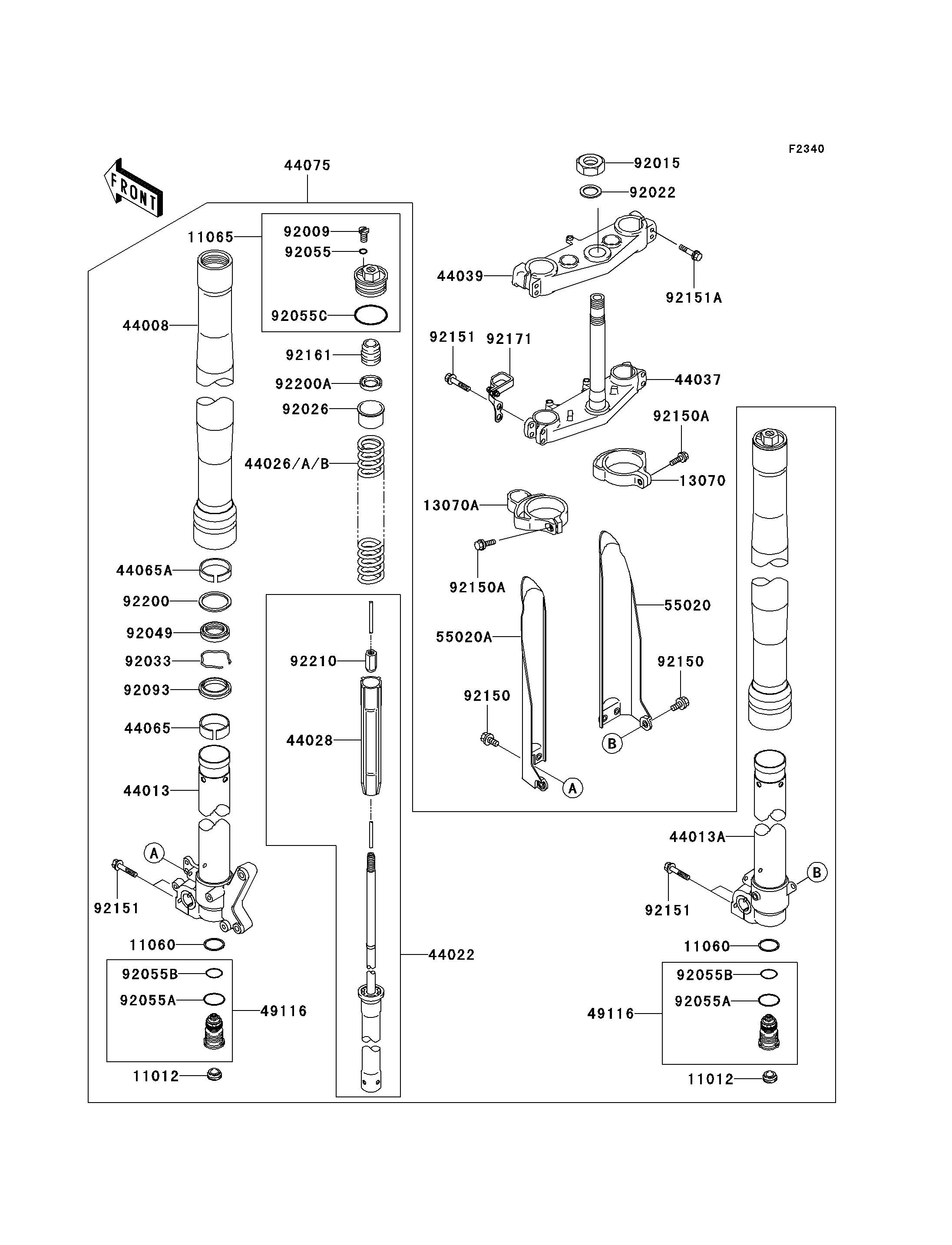

2003 KX125 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11060
11060
11060
11060
11065
11065
13070
13070
13070A
13070A
44008
44008
44013
44013
44013A
44013A
44022
44022
44026
44026
44026A
44026A
44026B
44026B
44028
44028
44037
44037
44039
44039
44065
44065
44065A
44065A
44075
44075
49116
49116
49116
49116
55020
55020
55020A
55020A
92009
92009
92015
92015
92022
92022
92026
92026
92033
92033
92049
92049
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92093
92093
92150
92150
92150
92150
92150A
92150A
92150A
92150A
92151
92151
92151
92151
92151
92151
92151A
92151A
92161
92161
92171
92171
92200
92200
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1692 2
GASKET 11060 11060-1707 2
CAP,FORK,TOP 11065 11065-1241 2
GUIDE,PROTECTOR,RH,WHITE 13070 13070-1290-RZ 1
GUIDE,PROTECTOR,LH,WHITE 13070A 13070-1329-RZ 1
PIPE-FORK OUTER,BRONZE 44008 44008-1060-JS 2
PIPE-FORK INNER,LH 44013 44013-1517 1
PIPE-FORK INNER,RH 44013A 44013-1518 1
CYLINDER-FORK 44022 44022-1348 2
SPRING-FRONT FORK,K=0.41 44026 44026-0009 2 (OPTION)
SPRING-FRONT FORK,K=0.43 44026A 44026-0011 2 (OPTION)
SPRING-FRONT FORK,K=0.42 44026B 44026-1768 2
GUIDE-FORK SPRING 44028 44028-1105 2
HOLDER-FORK UNDER 44037 44037-1439 1
HOLDER-FORK UPPER 44039 44039-1330 1
BUSHING-FRONT FORK 44065 44065-1140 2
BUSHING-FRONT FORK 44065A 44065-1141 2
DAMPER-SET-FORK,BRONZE 44075 44075-1177-JS 1
VALVE-ASSY,FORK 49116 49116-1201 2
GUARD,FORK,RH,WHITE 55020 55020-1493-RZ 1
GUARD,FORK,LH,WHITE 55020A 55020-1554-RZ 1
SCREW 92009 92009-1884 2
NUT,24MM 92015 92015-1057 1
WASHER,25X36X2.3 92022 92022-250 1
SPACER 92026 92026-1622 2
RING-SNAP 92033 92033-1329 2
SEAL-OIL 92049 92049-1599 2
RING-O 92055 92055-1441 2
RING-O,FORK VALVE 92055A 92055-1547 2
RING-O,FORK VALVE 92055B 92055-1548 2
RING-O 92055C 92055-1677 2
SEAL,FORK OUTER TUBE 92093 92093-1566 2
BOLT,6X12 92150 92150-1435 6
BOLT,5X16 92150A 92150-1802 2
BOLT,FLANGED,8X40 92151 92151-1877 8
BOLT,FLANGED,8X35 92151A 92151-1878 4
DAMPER 92161 92161-1305 2
CLAMP,HOSE 92171 92171-1572 1
WASHER 92200 92200-1615 2
WASHER 92200A 92200-1640 2
NUT 92210 92210-1379 2
