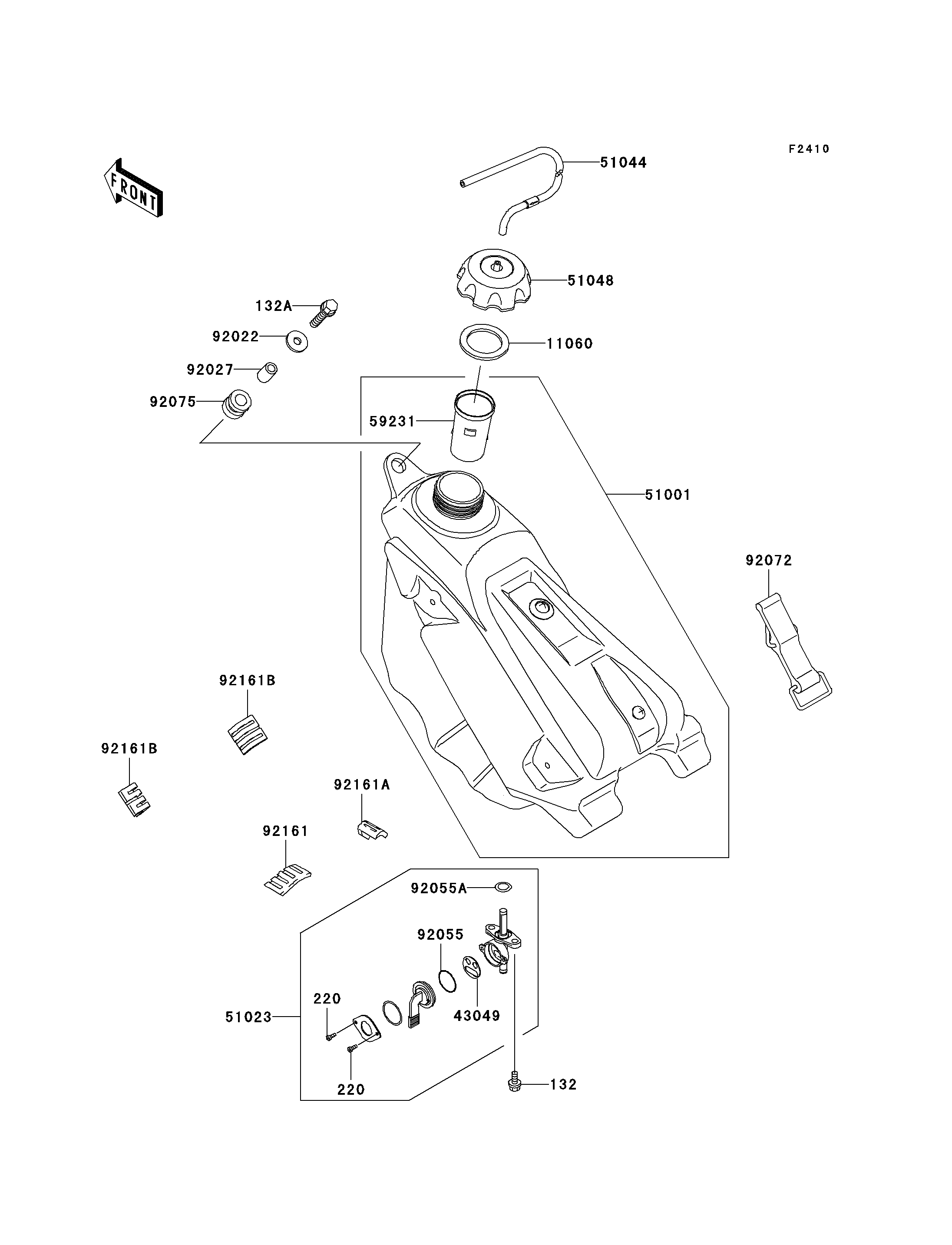

2003 KX125 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
220
11060
43049
51001
51023
51044
51048
59231
92022
92027
92055
92055A
92072
92075
92161
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0625 1
SCREW-PAN-CROS 220 220B0308 2
GASKET,FUEL TANK CAP 11060 11060-1340 1
PACKING,TAP VALVE 43049 43049-1091 1
TANK-COMP-FUEL,F.BLACK 51001 51001-1679-6Z 1
TAP-ASSY,FUEL 51023 51023-1395 1
TUBE-ASSY 51044 51044-0003 1
CAP-ASSY-TANK,FUEL 51048 51048-1124 1
FILLER 59231 59231-1096 1
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X14 92027 92027-1966 1
RING-O,TAP LEVER 92055 92055-1419 1
RING-O,FUEL TAP PACKING 92055A 92055-1700 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1787 1
DAMPER,FUEL TANK,RR 92161 92161-1279 1
DAMPER,FUEL TANK,RR 92161A 92161-1280 1
DAMPER,FUEL TANK,SIDE 92161B 92161-1291 2
