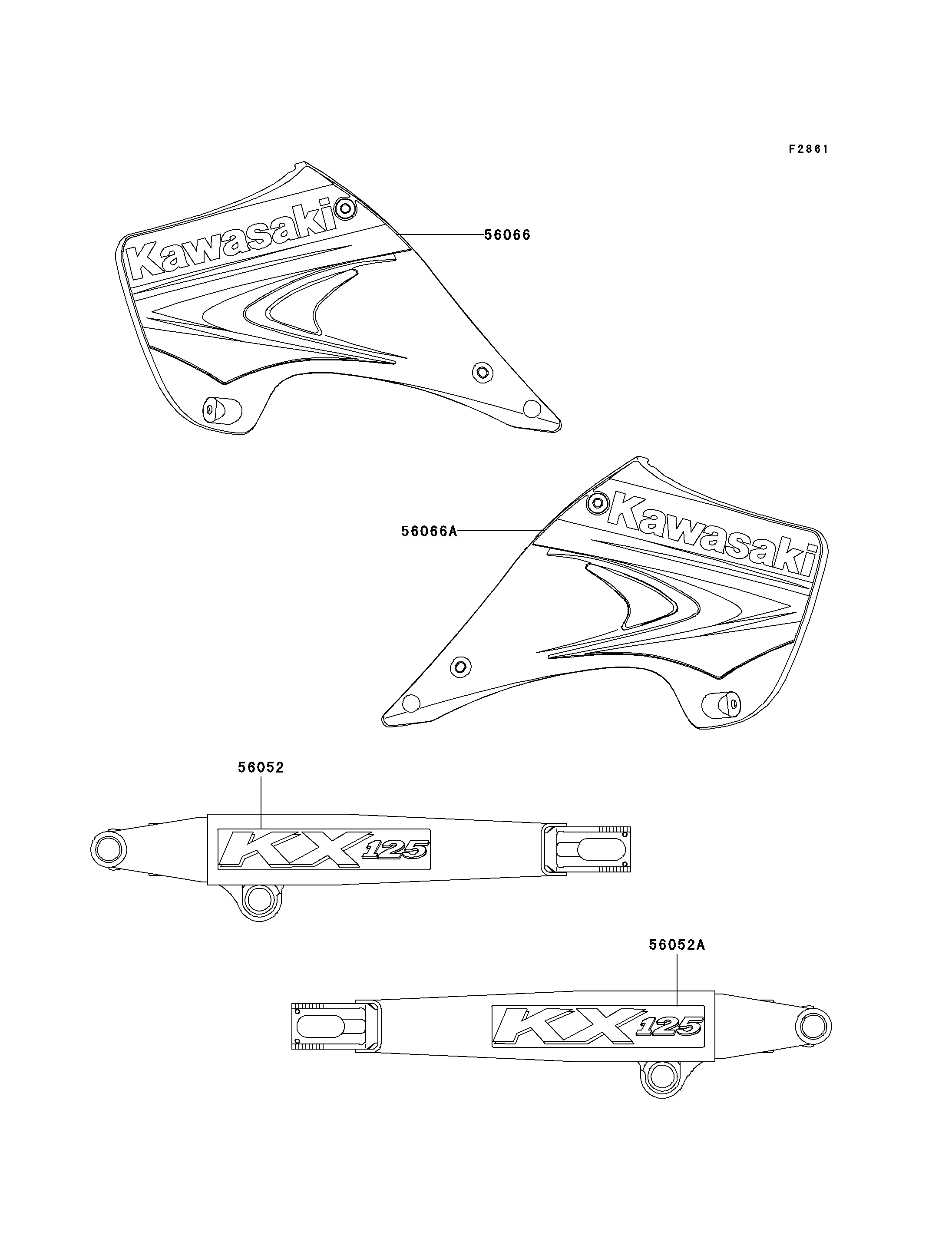

56052
56052A
56066
56066A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,LH,KX125 56052 56052-1800 1
MARK,SWING ARM,RH,KX125 56052A 56052-1801 1
PATTERN,SHROUD,LH 56066 56066-1254 1
PATTERN,SHROUD,RH 56066A 56066-1255 1
