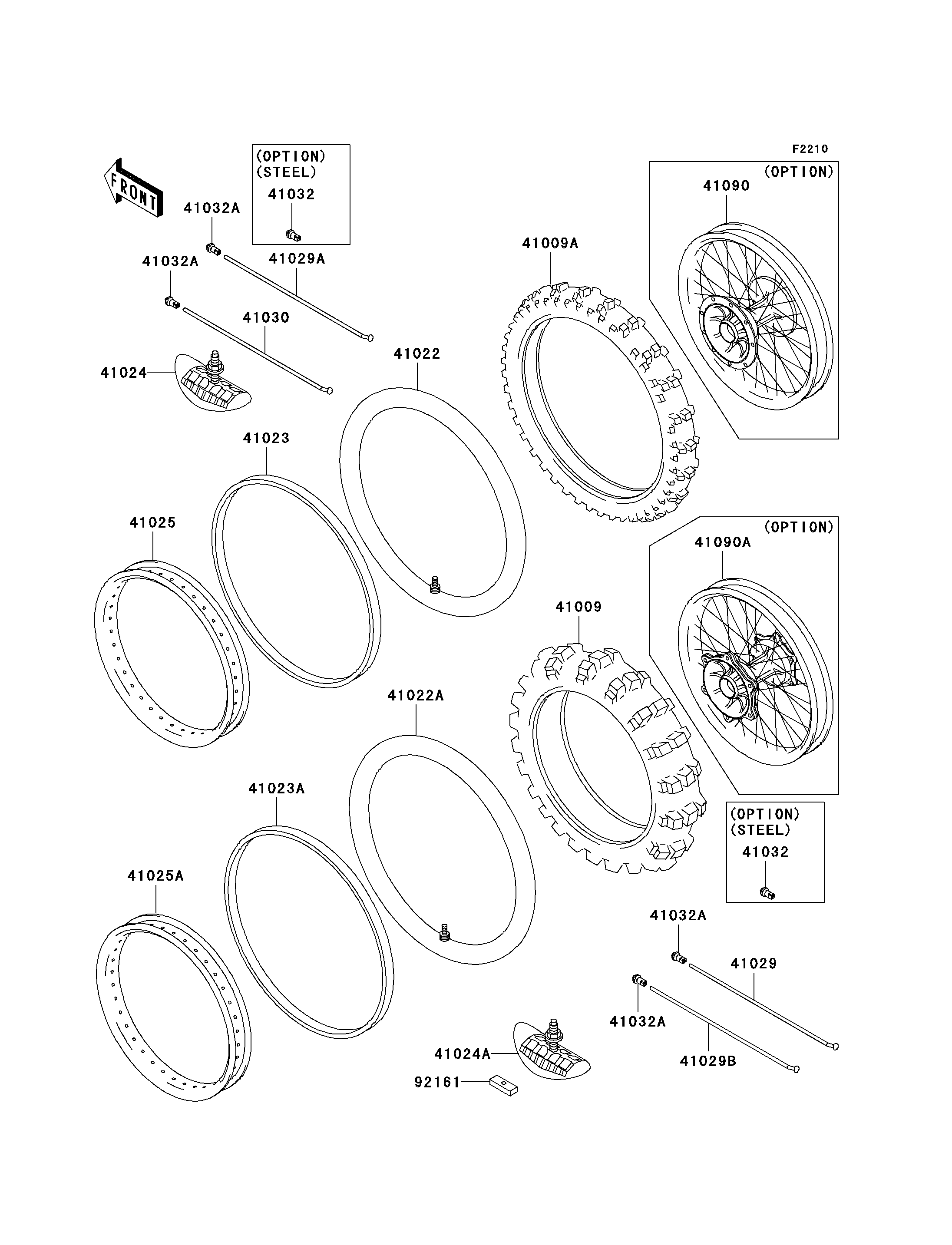

Parts Diagrams |
41009
41009A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41029B
41030
41032
41032
41032A
41032A
41032A
41032A
41090
41090A
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,RR,100/90-19 57M,D739(D) | 41009 | 41009-1241 | 1 | ||
TIRE,FR,80/100-21 51M,D739FA(D | 41009A | 41009-1293 | 1 | ||
TUBE-TIRE,80/100-21(D) | 41022 | 41022-1118 | 1 | ||
TUBE-TIRE,100/90-19(D) | 41022A | 41022-1129 | 1 | ||
BAND-RIM,80/100-21(D) | 41023 | 41023-1069 | 1 | ||
BAND-RIM,90.100/90-19(D) | 41023A | 41023-1074 | 1 | ||
STOPPER-RIM,1.60-M(DUNLOP) | 41024 | 41024-010 | 1 | ||
STOPPER-RIM,1.85-M(DUNLOP) | 41024A | 41024-011 | 1 | ||
RIM,FR,1.60X21 | 41025 | 41025-1377 | 1 | ||
RIM,RR,1.85X19 | 41025A | 41025-1435 | 1 | ||
SPOKE-INNER,RR,202MMX160D | 41029 | 41029-1204 | 27 | ||
SPOKE-INNER,FR,230MMX165D | 41029A | 41029-1295 | 27 | ||
SPOKE-INNER,RR,204MMX159D | 41029B | 41029-1330 | 9 | ||
SPOKE-OUTER,FR,231.5MMX170D | 41030 | 41030-1165 | 9 | ||
NIPPLE-SPOKE,STEEL | 41032 | 41032-1085 | 72 | (OPTION) | |
NIPPLE-SPOKE,ALUMINIUM | 41032A | 41032-1086 | 72 | ||
WHEEL,FR,1.60X21,ALUM NIPPLE | 41090 | 41090-1150 | 1 | (OPTION) | |
WHEEL,RR,1.85X19,ALUM NIPPLE | 41090A | 41090-1151 | 1 | (OPTION) | |
DAMPER,RIM STOPPER | 92161 | 92161-1184 | 1 |
TIRE,RR,100/90-19 57M,D739(D) | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,FR,80/100-21 51M,D739FA(D | |
REF # | 41009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,80/100-21(D) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,100/90-19(D) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,80/100-21(D) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,90.100/90-19(D) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,1.60-M(DUNLOP) | |
REF # | 41024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,1.85-M(DUNLOP) | |
REF # | 41024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,1.60X21 | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,1.85X19 | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,202MMX160D | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 27 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,230MMX165D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 27 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,204MMX159D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,FR,231.5MMX170D | |
REF # | 41030 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE,STEEL | |
REF # | 41032 |
---|---|
PART NUMBER | |
QUANTITY | 72 |
DESTINATION | |
REMARKS | (OPTION) |
NIPPLE-SPOKE,ALUMINIUM | |
REF # | 41032A |
---|---|
PART NUMBER | |
QUANTITY | 72 |
DESTINATION | |
REMARKS |
WHEEL,FR,1.60X21,ALUM NIPPLE | |
REF # | 41090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
WHEEL,RR,1.85X19,ALUM NIPPLE | |
REF # | 41090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
DAMPER,RIM STOPPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
