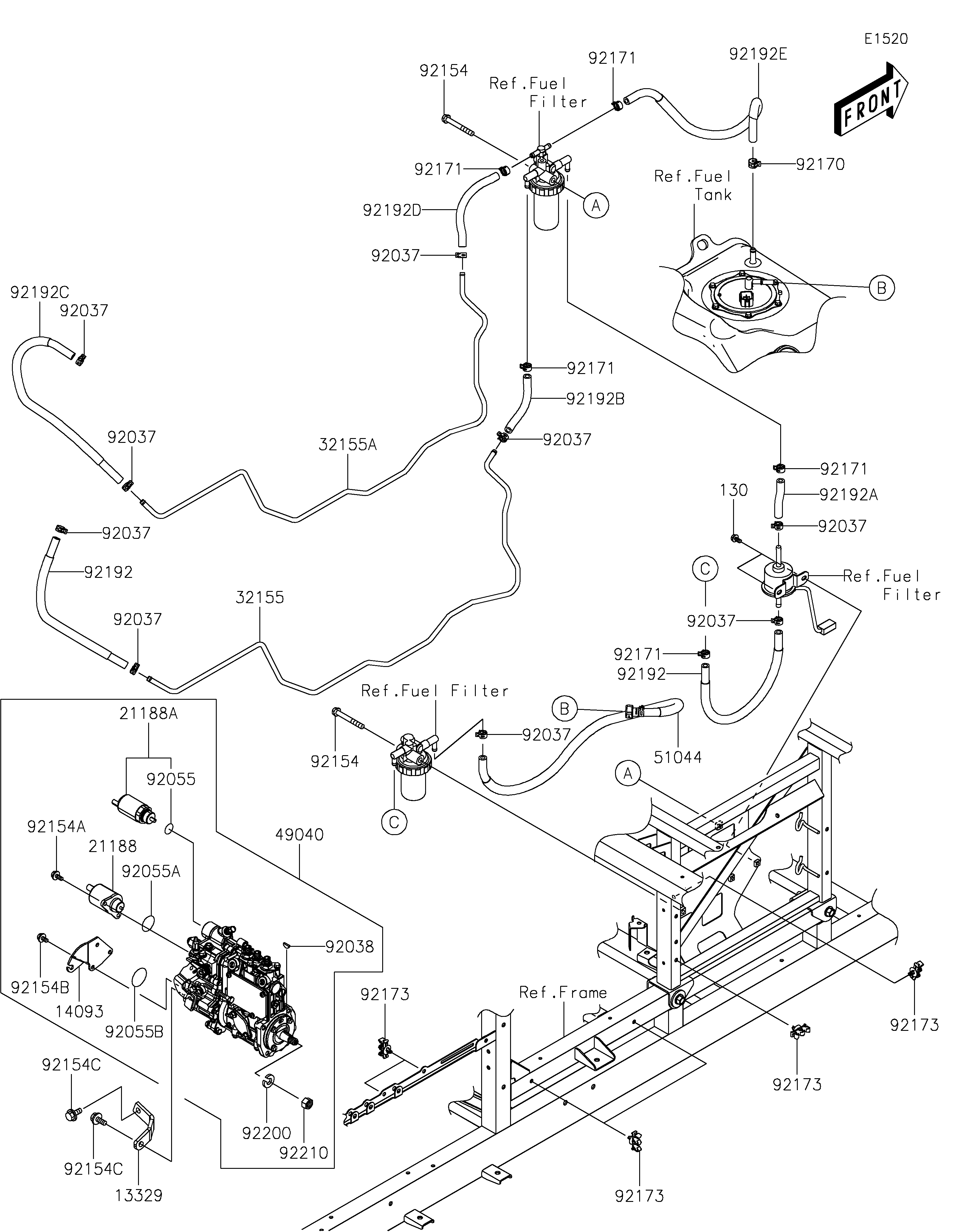

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 2
SUPPORT 13329 13329-0001 1
COVER,GOVERNOR CASE 14093 14093-0448 1
SOLENOID,STOP 21188 21188-0013 1
SOLENOID,POWER CONTROL 21188A 21188-0022 1
PIPE,FEED 32155 32155-2047 1
PIPE,RETURN 32155A 32155-2048 1
PUMP-FUEL,INJECTION 49040 49040-0796 1
TUBE-ASSY 51044 51044-0785 1
CLAMP,HOSE CLIP 92037 92037-1181 9
KEY,WOODRUFF 92038 92038-0008 1
RING-O 92055 92055-0859 1
RING-O 92055A 92055-0860 1
RING-O 92055B 92055-0861 1
BOLT,FLANGED,8X63 92154 92154-1940 2
BOLT,FLANGED,6X14 92154A 92154-1997 2
BOLT,FLANGED,6X10 92154B 92154-2068 3
BOLT,FLANGED,8X16 92154C 92154-2071 2
CLAMP 92170 92170-1938 1
CLAMP 92171 92171-0515 5
CLAMP 92173 92173-1467 6
TUBE,7.5X13.5X390 92192 92192-1476 2
TUBE,PUMP-FILTER 92192A 92192-1477 1
TUBE,FILER-ENGINE(FILTER SIDE) 92192B 92192-1478 1
TUBE,ENGINE-FILER(ENGINE SIDE) 92192C 92192-1479 1
TUBE,ENGINE-FILER(FILTER SIDE) 92192D 92192-1480 1
TUBE,FILTER-TANK 92192E 92192-1481 1
WASHER,SPRING 92200 92200-1810 1
NUT,12MM 92210 92210-1486 1
