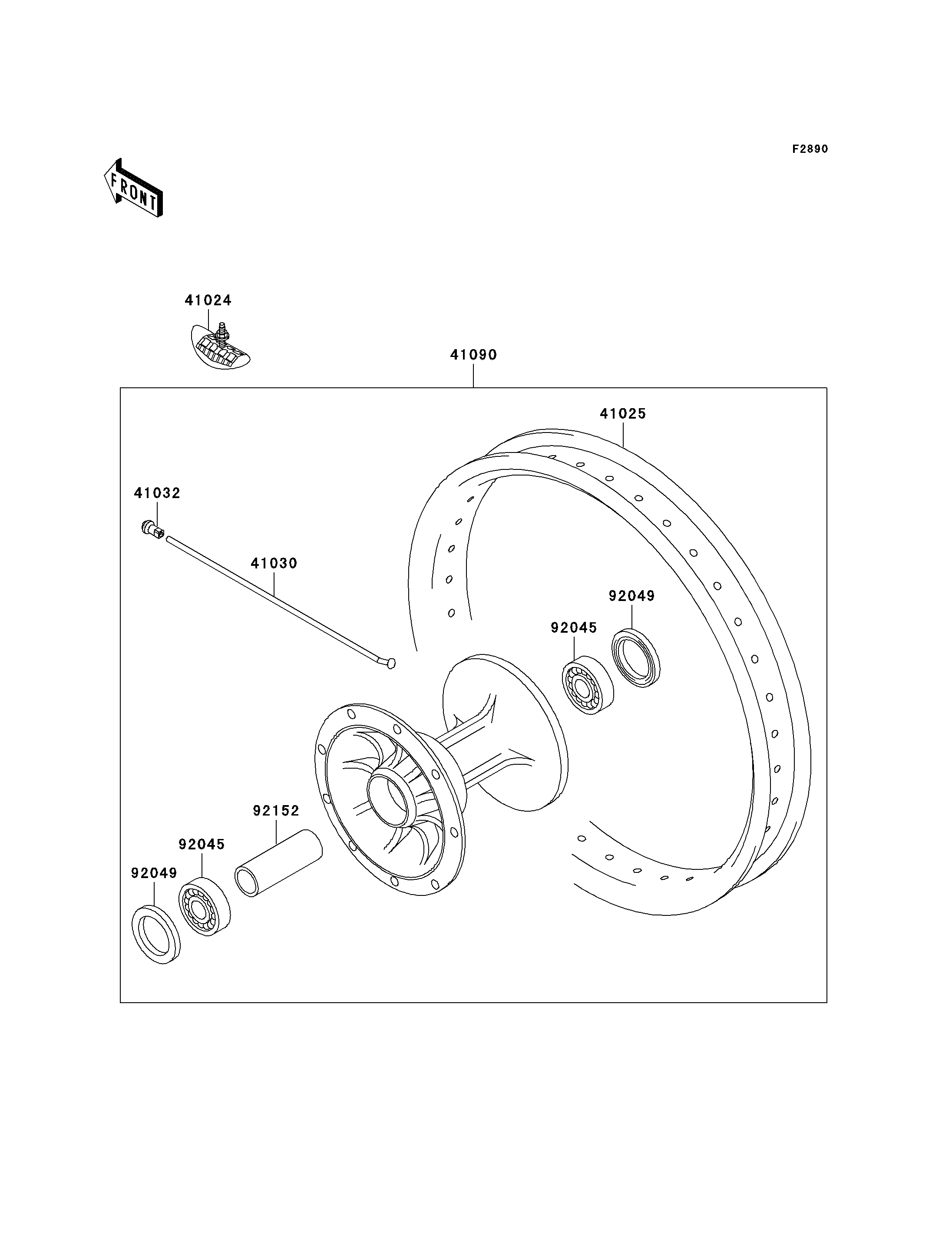

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER-RIM,1.85-M(DUNLOP) 41024 41024-011 1
RIM,FR,1.85X20 41025 41025-1411 1
SPOKE-OUTER,FR,217.5MMX170D 41030 41030-1172 36
NIPPLE-SPOKE,ALUMINIUM 41032 41032-1086 36
WHEEL,FR,1.85X20,ALUM NIPPLE 41090 41090-1154 1
BEARING-BALL,69042RS 92045 92045-1284 2
SEAL-OIL,BJNC-2 25X37X5 92049 92049-1403 2
COLLAR,FRONT BRAKE DRUM,L=72 92152 92152-1472 1
