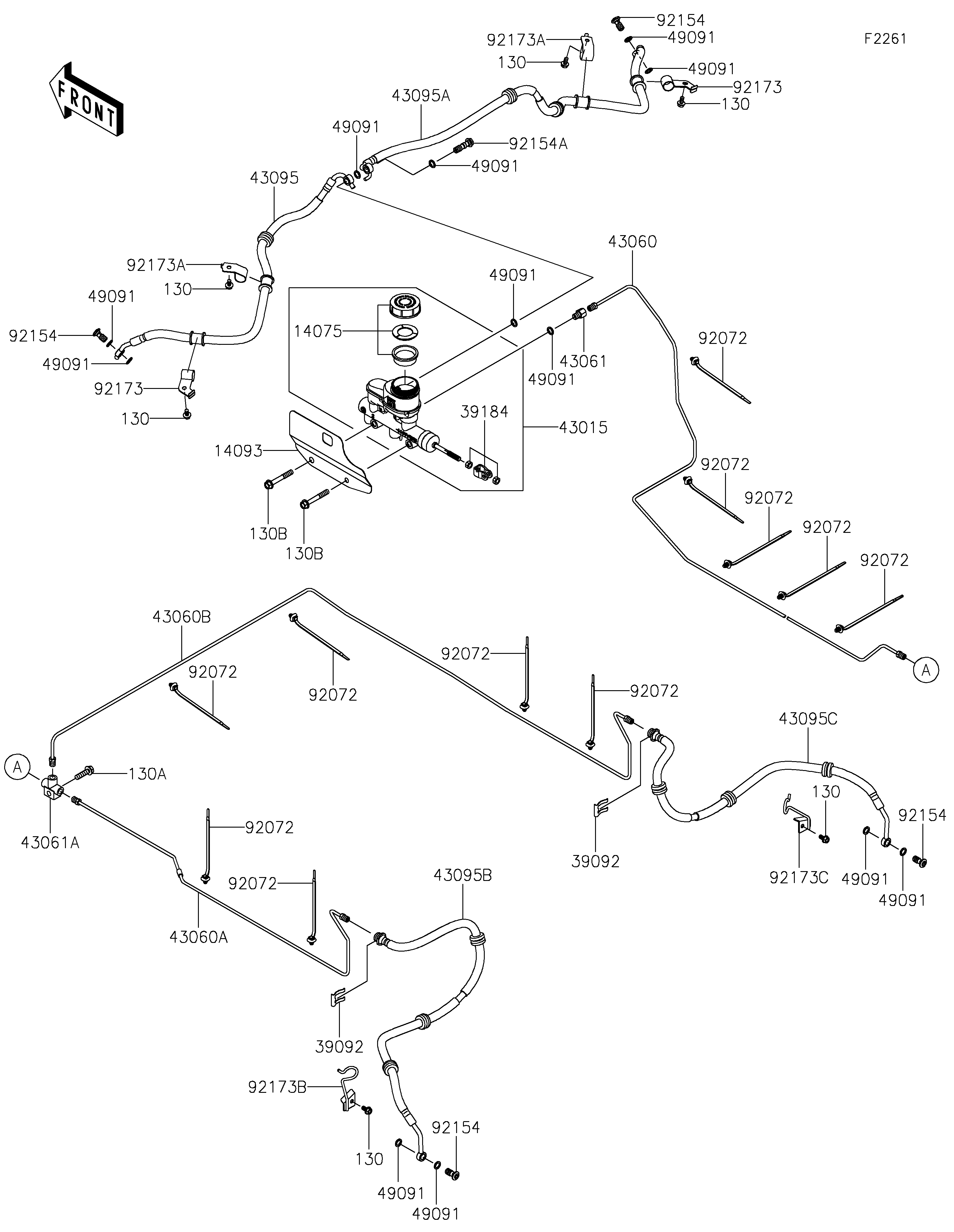

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 6
BOLT-FLANGED,8X30 130A 130BA0830 1
BOLT-FLANGED,8X55 130B 130BA0855 2
CAP-ASSY 14075 14075-0038 1
COVER,M/C BODY 14093 14093-0044 1
PIN-HAIR 39092 39092-1052 2
BRACKET-ASSY 39184 39184-0031 1
CYLINDER-ASSY-MASTER 43015 43015-0595 1
PIPE-BRAKE 43060 43060-0317 1
PIPE-BRAKE,LH 43060A 43060-0318 1
PIPE-BRAKE,RH 43060B 43060-0319 1
JOINT-BRAKE,M/C 43061 43061-0302 1
JOINT-BRAKE 43061A 43061-1063 1
HOSE-BRAKE,661MM 43095 43095-0807 1
HOSE-BRAKE,1011MM 43095A 43095-0808 1
HOSE-BRAKE,847MM 43095B 43095-1610 1
HOSE-BRAKE,767MM 43095C 43095-1611 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 12
BAND,OS170-FT7(BLACK) 92072 92072-1414 11
BOLT,HEXALOBULAR,10X21 92154 92154-1328 4
BOLT,OIL,10X34.5 92154A 92154-1398 1
CLAMP 92173 92173-1215 2
CLAMP 92173A 92173-1216 2
CLAMP 92173B 92173-1217 1
CLAMP 92173C 92173-1218 1
