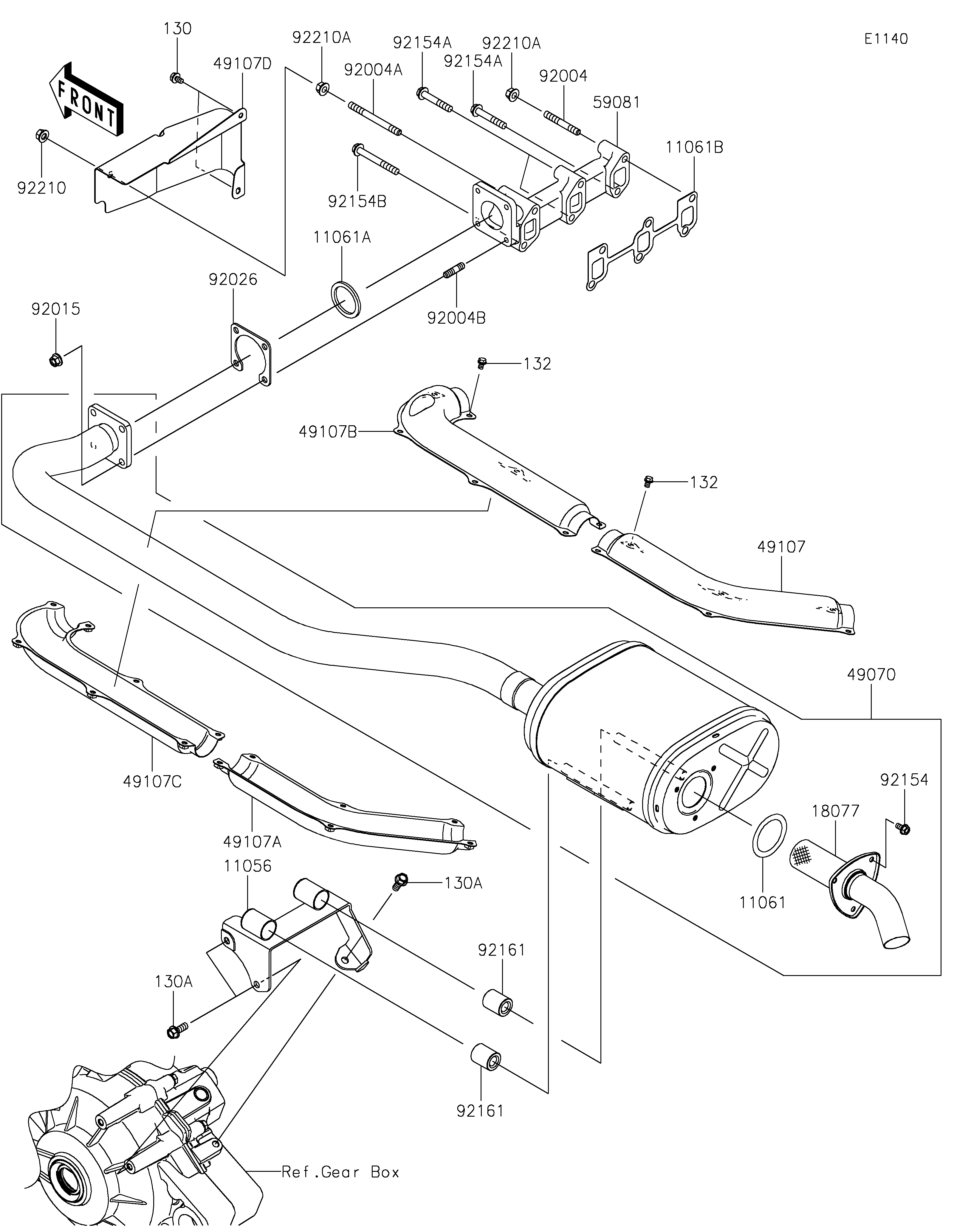

2021 MULE PRO-DXT™ EPS DIESEL - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11061
11061A
11061B
130
130A
130A
132
132
18077
49070
49107
49107A
49107B
49107C
49107D
59081
92004
92004A
92004B
92015
92026
92154
92154A
92154A
92154B
92161
92161
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MUFFLER MOUNT 11056 11056-7806 1
GASKET,EXHAUST PIPE 11061 11061-0013 1
GASKET,EXHAUST HOLDER 11061A 11061-0989 1
GASKET,EXHAUST MANIFOLD 11061B 11061-1194 1
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,8X20 130A 130BA0820 3
BOLT-FLANGED-SMALL,6X8 132 132BD0608 13
ARRESTER-SPARK 18077 18077-0040 1
MUFFLER-COMP 49070 49070-0844 1
COVER-EXHAUST PIPE,RR,UPP 49107 49107-0771 1
COVER-EXHAUST PIPE,RR,LWR 49107A 49107-0772 1
COVER-EXHAUST PIPE,FR,UPP 49107B 49107-0773 1
COVER-EXHAUST PIPE,FR,LWR 49107C 49107-0774 1
COVER-EXHAUST PIPE 49107D 49107-0786 1
MANIFOLD-EXHAUST 59081 59081-0295 1
STUD,8X50 92004 92004-0746 1
STUD,8X80 92004A 92004-0747 1
STUD,8X22 92004B 92004-0748 4
NUT,8MM 92015 92015-1402 4
SPACER 92026 92026-0817 1
BOLT,FLANGED,6X12 92154 92154-0852 3
BOLT,FLANGED,8X50 92154A 92154-1990 3
BOLT,FLANGED,8X71 92154B 92154-1991 1
DAMPER 92161 92161-0961 2
NUT,8MM 92210 92210-1456 1
NUT,8MM 92210A 92210-1473 2
