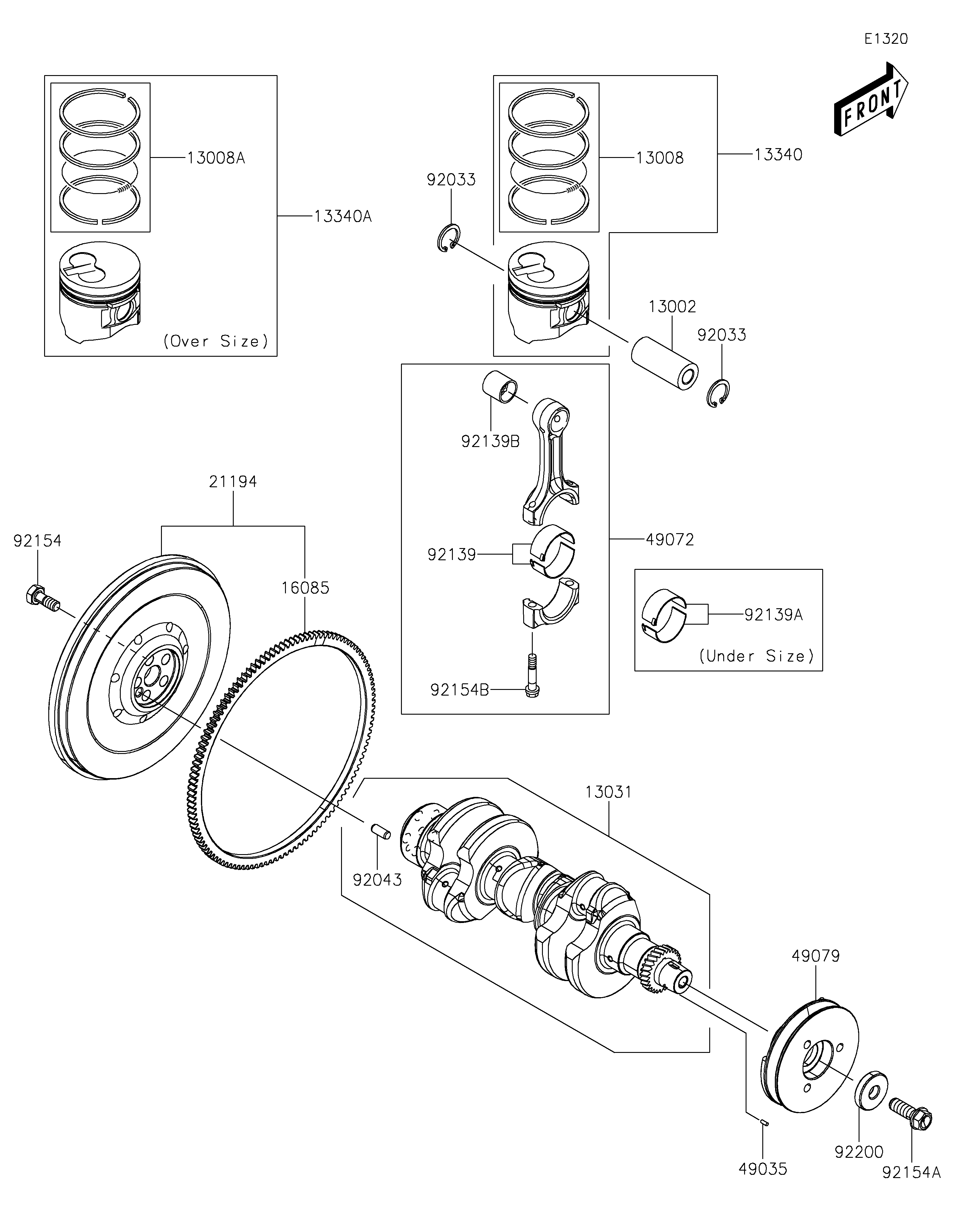

2021 MULE PRO-DXT™ EPS DIESEL - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
13002
13008
13008A
13031
13340
13340A
16085
21194
49035
49072
49079
92033
92033
92043
92139
92139A
92139B
92154
92154A
92154B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-PISTON 13002 13002-0047 3
RING-SET-PISTON,STD 13008 13008-0563 3
RING-SET-PISTON,O/S,0.25 13008A 13008-0566 AR
CRANKSHAFT-COMP 13031 13031-0841 1
PISTON-ASSY-ENGINE,STD 13340 13340-0004 3
PISTON-ASSY-ENGINE,O/S,0.25 13340A 13340-0005 AR
GEAR,RING 16085 16085-0655 1
FLYWHEEL-COMP 21194 21194-0037 1
PIN-SPRING 49035 49035-0017 1
ROD-COMP-CONNECTING 49072 49072-0001 3
PULLEY-BELT 49079 49079-0026 1
RING-SNAP 92033 92033-0774 6
PIN,8X16 92043 92043-0886 1
BUSHING,STD 92139 92139-0860 3
BUSHING,U/S,0.25 92139A 92139-0864 AR
BUSHING,PISTON PIN 92139B 92139-0865 3
BOLT,FLYWHEEL 92154 92154-1992 5
BOLT,FLANGED 92154A 92154-1993 1
BOLT,CONNECTING ROD 92154B 92154-1994 6
WASHER 92200 92200-1807 1
