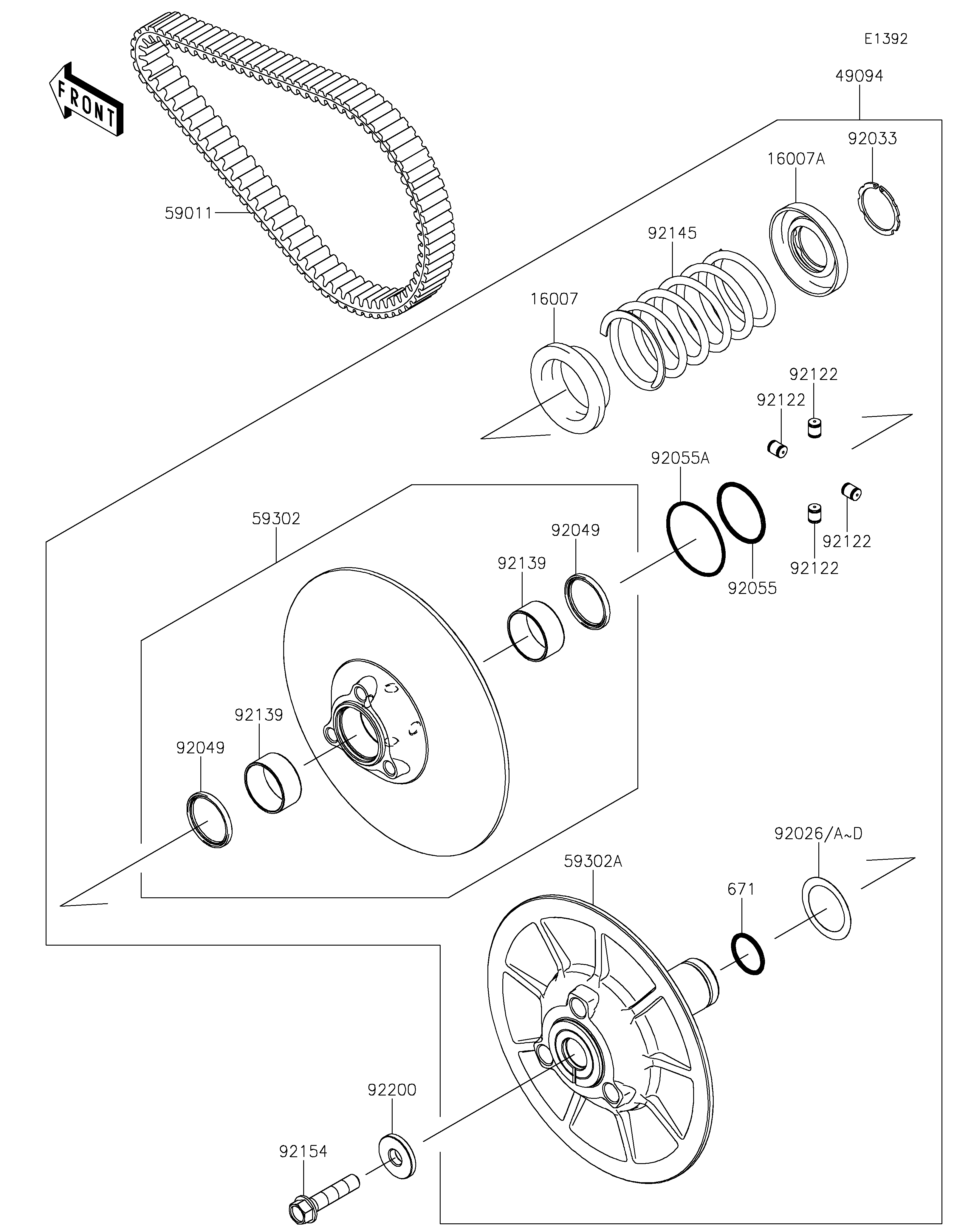

2021 MULE PRO-DXT™ EPS DIESEL - Driven Converter/Drive Belt

DOWNLOAD PDF
SELECT A NEW PART
16007
16007A
49094
59011
59302
59302A
671
92026
92026A
92026B
92026C
92026D
92033
92049
92049
92055
92055A
92122
92122
92122
92122
92139
92139
92145
92154
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-SPRING,MOVABLE 16007 16007-0049 1
SEAT-SPRING,FIXED 16007A 16007-0050 1
CONVERTER-ASSY-DRIVEN 49094 49094-0095 1
BELT,CVT 59011 59011-0037 1
SHEAVE-COMP,MOVABLE 59302 59302-0049 1
SHEAVE-COMP,FIXED 59302A 59302-0095 1
O RING 671 671D2530 1
SPACER,T=0.30 92026 92026-0034 AR
SPACER,T=1.00 92026A 92026-1565 AR
SPACER,T=0.60 92026B 92026-1569 AR
SPACER,T=1.40 92026C 92026-1570 AR
SPACER,T=0.80 92026D 92026-1617 AR
RING-SNAP 92033 92033-1317 1
SEAL-OIL 92049 92049-1528 2
RING-O,46.4X3.1 92055 92055-0752 1
RING-O,59.5X2.4 92055A 92055-0753 1
ROLLER 92122 92122-0043 4
BUSHING 92139 92139-0313 2
SPRING 92145 92145-1671 1
BOLT,FLANGED,12X55 92154 92154-1336 1
WASHER 92200 92200-0069 1
