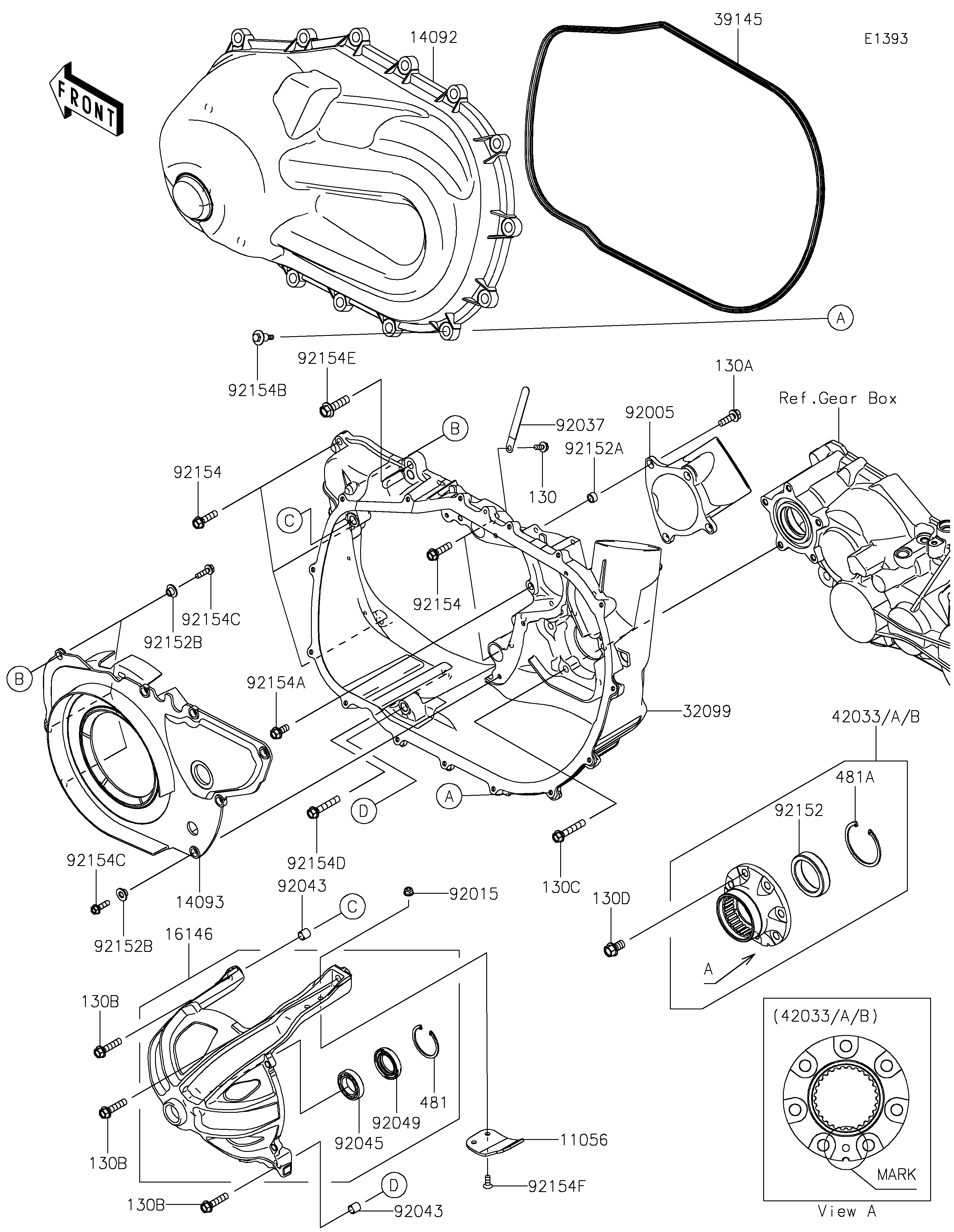

2021 MULE PRO-DXT™ EPS DIESEL - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
11056
130
130A
130B
130B
130B
130C
130D
14092
14093
16146
32099
39145
42033
42033A
42033B
481
481A
92005
92015
92037
92043
92043
92045
92049
92152
92152A
92152B
92152B
92154
92154
92154A
92154B
92154C
92154C
92154D
92154E
92154F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CVT BELT GUIDE 11056 11056-7883 1
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED,8X25 130A 130BA0825 4
BOLT-FLANGED,8X35 130B 130BA0835 3
BOLT-FLANGED,8X45 130C 130BA0845 5
BOLT-FLANGED,10X18 130D 130CA1018 7
COVER,CVT 14092 14092-1202 1
COVER 14093 14093-0302 1
COVER-ASSY 16146 16146-0791 1
CASE,CVT 32099 32099-0771 1
TRIM-SEAL 39145 39145-0047 1
COUPLING-ASSY,B MARK,WHITE 42033 42033-0582 1
COUPLING-ASSY,A MARK,BLUE 42033A 42033-0583 1
COUPLING-ASSY,C MARK,YELLOW 42033B 42033-0584 1
CIRCLIP-TYPE-C,45MM 481 481J4500 1
CIRCLIP 481A 481J6200 1
FITTING,INTAKE 92005 92005-0762 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
CLAMP 92037 92037-1993 1
PIN,12X14 92043 92043-0963 2
BEARING-BALL,#6905 92045 92045-036 1
SEAL-OIL,HTC 28X45X8 92049 92049-0767 1
COLLAR 92152 92152-1822 1
COLLAR,8.8X12.3X6.9 92152A 92152-1853 4
COLLAR 92152B 92152-1931 8
BOLT,FLANGED,8X30 92154 92154-0850 5
BOLT,FLANGED,8X18 92154A 92154-1386 1
BOLT,CVT COVER 92154B 92154-1522 15
BOLT,FLANGED,6X22 92154C 92154-1525 8
BOLT,FLANGED,8X45 92154D 92154-1526 1
BOLT,FLANGED,10X35 92154E 92154-1744 1
BOLT,6X16 92154F 92154-2147 2
