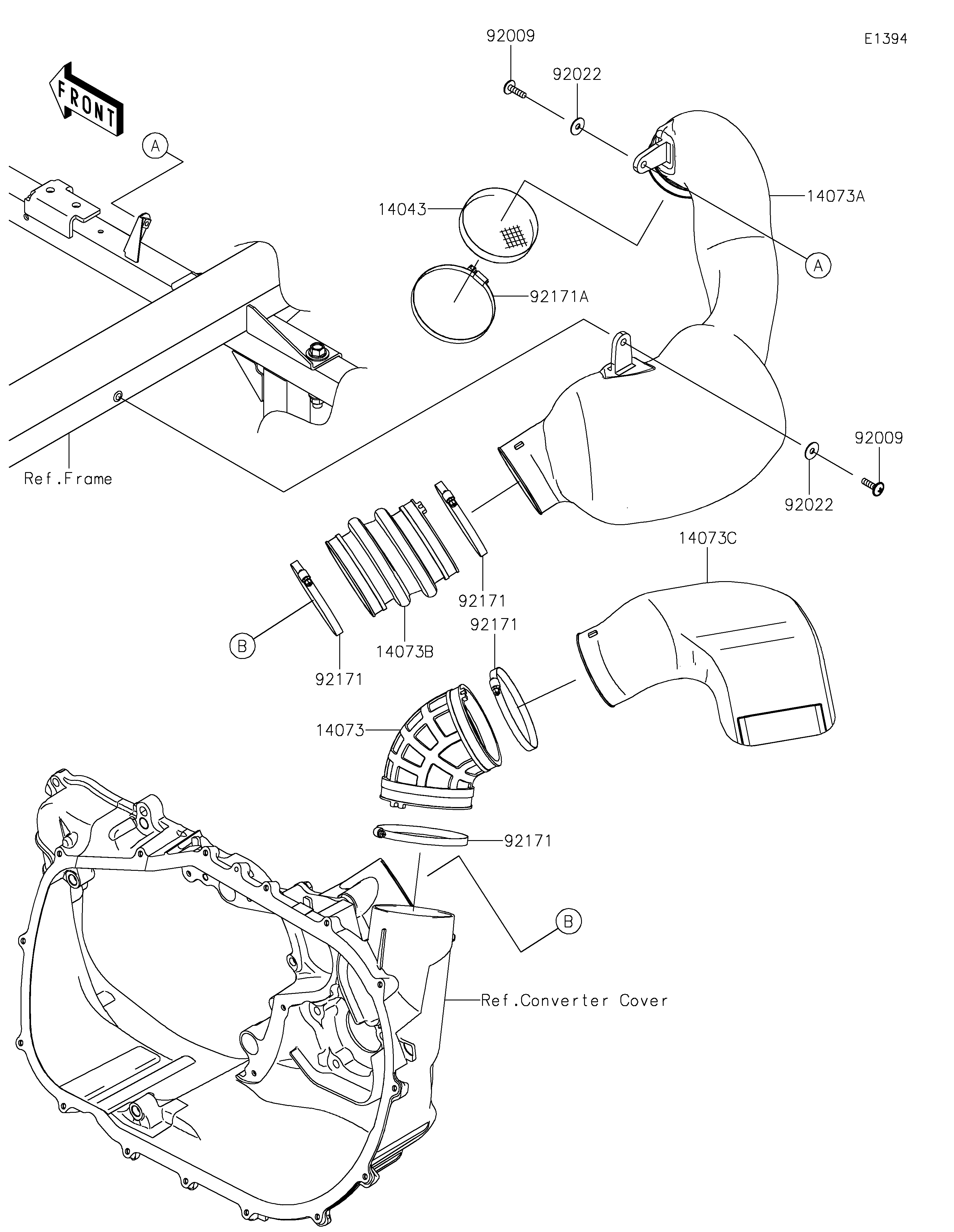

2021 MULE PRO-DXT EPS DIESEL - Air Cleaner-Belt Converter

14043
14073
14073A
14073B
14073C
92009
92009
92022
92022
92171
92171
92171
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER 14043 14043-0013 1
DUCT,EXHAUST 14073 14073-0788 1
DUCT,INTAKE 14073A 14073-0789 1
DUCT,INTAKE 14073B 14073-0790 1
DUCT,EXHAUST 14073C 14073-0793 1
SCREW,6X22 92009 92009-1441 2
WASHER,PLAIN,6.5X20X1 92022 92022-165 2
CLAMP 92171 92171-1383 4
CLAMP 92171A 92171-3716 1
