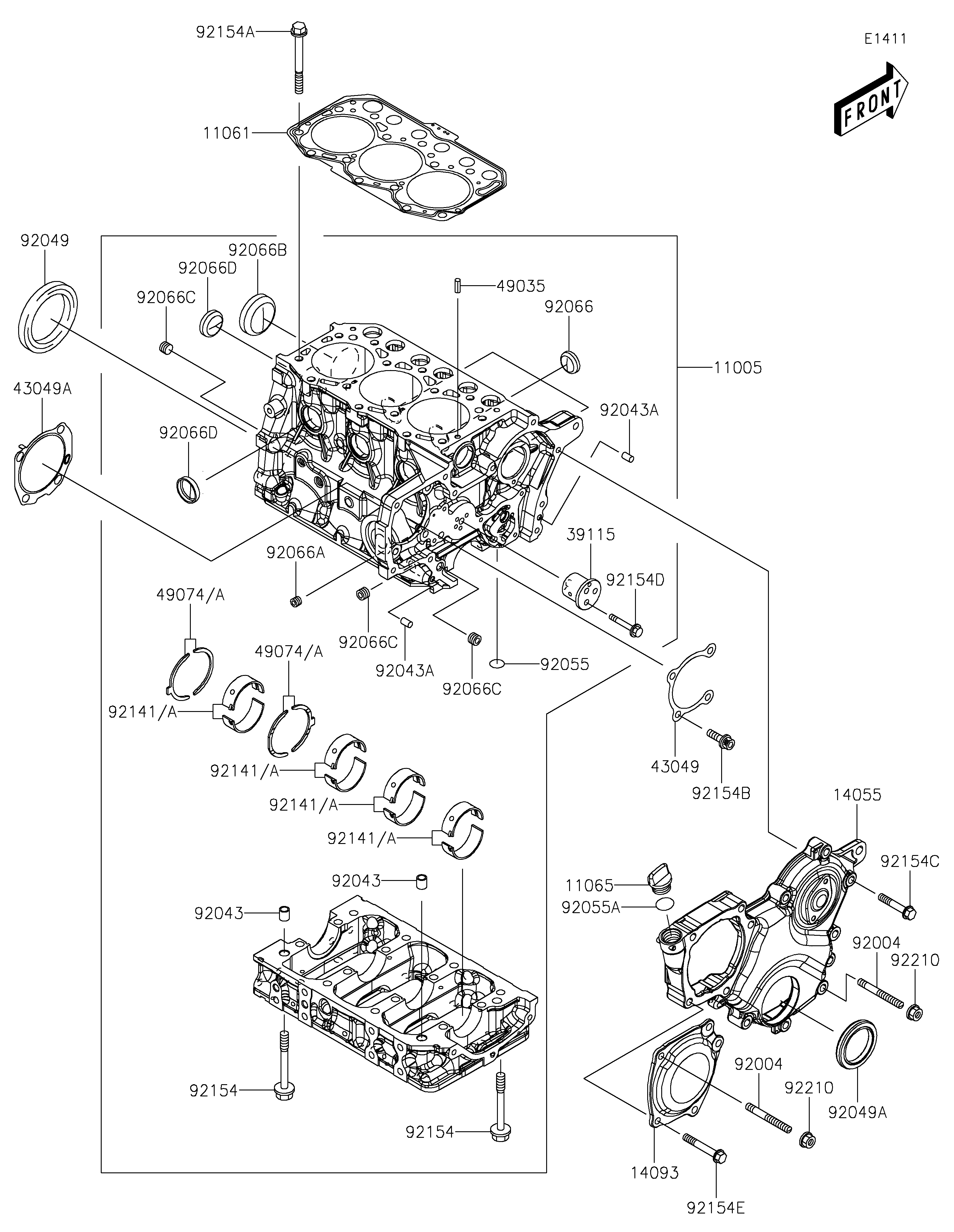

2021 MULE PRO-DXT™ EPS DIESEL - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11005
11061
11065
14055
14093
39115
43049
43049A
49035
49074
49074
49074A
49074A
92004
92004
92043
92043
92043A
92043A
92049
92049A
92055
92055A
92066
92066A
92066B
92066C
92066C
92066C
92066D
92066D
92141
92141
92141
92141
92141A
92141A
92141A
92141A
92154
92154
92154A
92154B
92154C
92154D
92154E
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-0664 1
GASKET,HEAD 11061 11061-1192 1
CAP 11065 11065-0936 1
CASE-GEAR 14055 14055-0622 1
COVER 14093 14093-0439 1
SHAFT-IDLER 39115 39115-0025 1
PACKING 43049 43049-0035 1
PACKING 43049A 43049-0036 1
PIN-SPRING 49035 49035-0016 2
PLATE-THRUST 49074 49074-0003 2
PLATE-THRUST,O/S,0.25 49074A 49074-0005 AR
STUD,8X60 92004 92004-0744 2
PIN,KNOCK 92043 92043-0883 2
PIN,6X10 92043A 92043-0884 2
SEAL-OIL 92049 92049-0787 1
SEAL-OIL 92049A 92049-0788 1
RING-O 92055 92055-0854 1
RING-O 92055A 92055-0855 1
PLUG 92066 92066-0846 3
PLUG 92066A 92066-0847 1
PLUG 92066B 92066-0849 1
PLUG 92066C 92066-0850 3
PLUG 92066D 92066-0860 4
BEARING-PLANE,STD 92141 92141-0004 4
BEARING-PLANE,U/S,0.25 92141A 92141-0005 AR
BOLT,FLANGED 92154 92154-1981 16
BOLT,FLANGED 92154A 92154-1982 14
BOLT,SOCKET 92154B 92154-1983 4
BOLT,FLANGED,8X35 92154C 92154-1984 7
BOLT,FLANGED,6X40 92154D 92154-1995 3
BOLT,FLANGED,8X45 92154E 92154-2000 4
NUT,8MM 92210 92210-1473 2
