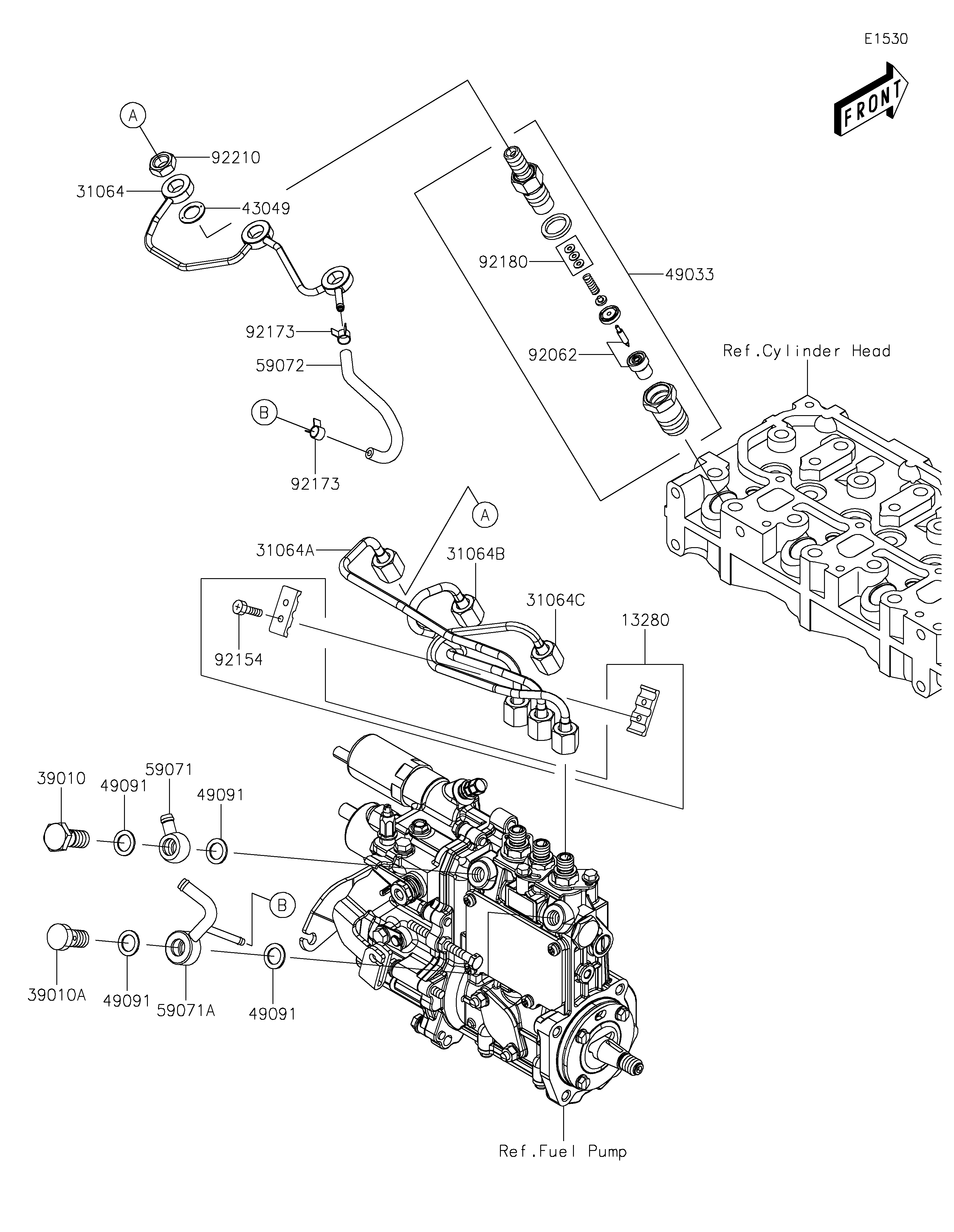

2021 MULE PRO-DXT™ EPS DIESEL - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
13280
31064
31064A
31064B
31064C
39010
39010A
43049
49033
49091
49091
49091
49091
59071
59071A
59072
92062
92154
92173
92173
92180
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-0862 1
PIPE-COMP,RETURN 31064 31064-0681 1
PIPE-COMP,INJECTION,NO.1 31064A 31064-0682 1
PIPE-COMP,INJECTION,NO.2 31064B 31064-0683 1
PIPE-COMP,INJECTION,NO.3 31064C 31064-0684 1
BOLT-EYE,PIPE JOINT 39010 39010-0001 1
BOLT-EYE,PIPE JOINT 39010A 39010-0002 1
PACKING 43049 43049-0045 3
NOZZLE-INJECTION 49033 49033-0039 3
WASHER-SEAL 49091 49091-0007 4
JOINT 59071 59071-0738 1
JOINT,OVER FLOW 59071A 59071-0739 1
JOINT-EYE 59072 59072-0004 1
NOZZLE 92062 92062-0038 3
BOLT,4X14 92154 92154-2115 2
CLAMP 92173 92173-1551 2
SHIM,SET 92180 92180-0971 3
NUT 92210 92210-1469 3
