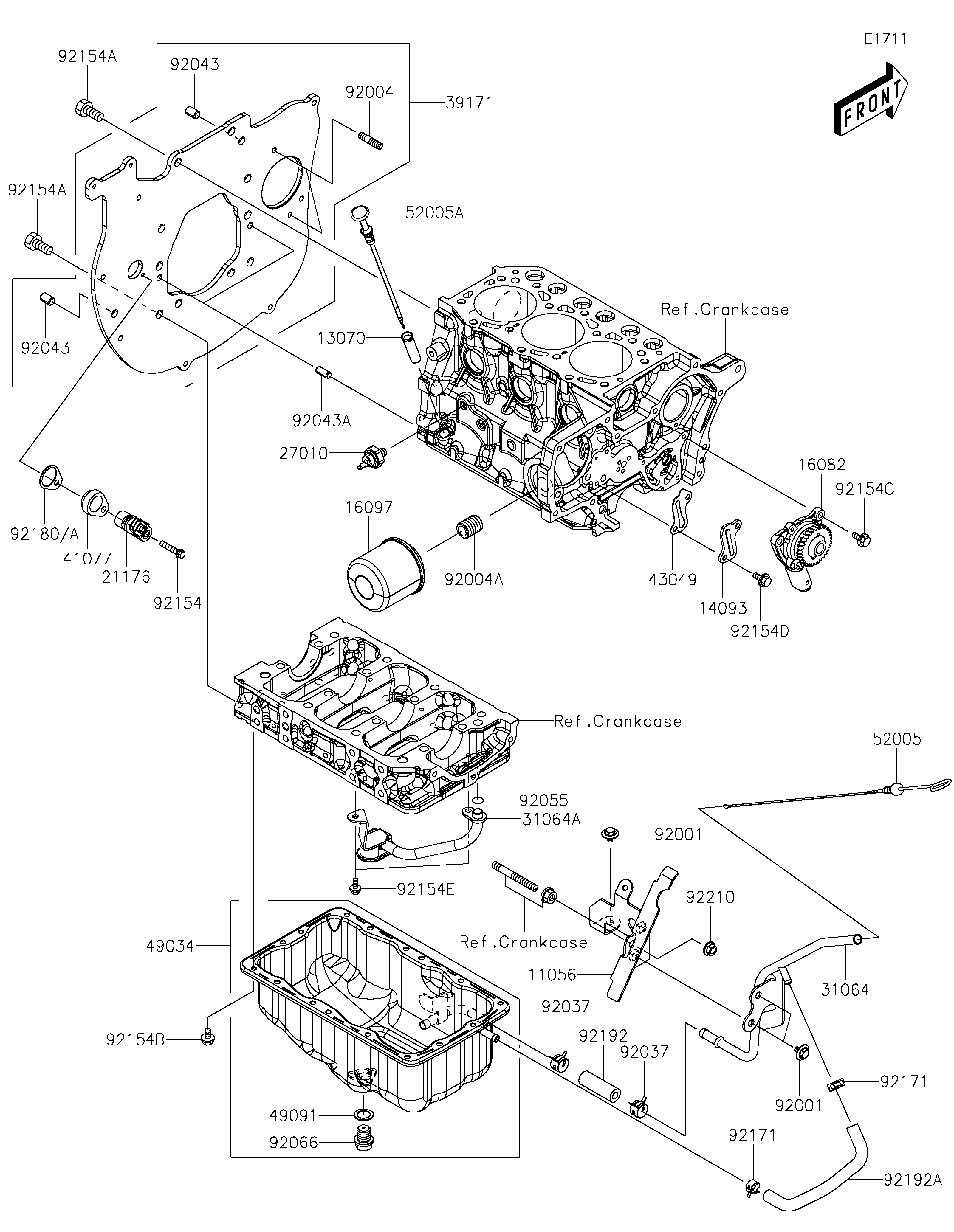

2021 MULE PRO-DXT™ EPS DIESEL - Oil Pan/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
11056
13070
14093
16082
16097
21176
27010
31064
31064A
39171
41077
43049
49034
49091
52005
52005A
92001
92001
92004
92004A
92037
92037
92043
92043
92043A
92055
92066
92154
92154A
92154A
92154B
92154C
92154D
92154E
92171
92171
92180
92180A
92192
92192A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LEVEL GAUGE PIPE 11056 11056-7693 1
GUIDE,OIL LEVEL GAUGE 13070 13070-0830 1
COVER 14093 14093-0445 1
PUMP-ASSY-OIL 16082 16082-0763 1
FILTER-ASSY-OIL 16097 16097-0012 1
SENSOR,ROTATION 21176 21176-0767 1
SWITCH,OIL PRESSURE 27010 27010-0838 1
PIPE-COMP,LEVEL GAUGE 31064 31064-0677 1
PIPE-COMP,OIL 31064A 31064-0679 1
FLANGE-COMP 39171 39171-0003 1
ADAPTER,ROTATION SENSOR 41077 41077-0722 1
PACKING 43049 43049-0039 1
PAN-OIL 49034 49034-0566 1
WASHER-SEAL 49091 49091-0006 1
GAUGE,OIL LEVEL 52005 52005-0754 1
GAUGE,OIL LEVEL 52005A 52005-0759 1
BOLT,FLANGED,6X10 92001 92001-1034 3
STUD,8X25 92004 92004-0745 2
STUD 92004A 92004-0749 1
CLAMP 92037 92037-1678 2
PIN,10X16 92043 92043-0885 2
PIN,8X16 92043A 92043-0886 2
RING-O 92055 92055-0857 1
PLUG,DRAIN 92066 92066-0851 1
BOLT,FLANGED,6X30 92154 92154-1857 1
BOLT,10X20 92154A 92154-1985 9
BOLT,TORX,6X10 92154B 92154-1986 16
BOLT,FLANGED,6X14 92154C 92154-1997 3
BOLT,FLANGED,6X12 92154D 92154-1998 2
BOLT,FLANGED,6X10 92154E 92154-2068 2
CLAMP,CLIP,12.5MM 92171 92171-0372 2
SHIM,T=1.0 92180 92180-0968 AR
SHIM,T=0.5 92180A 92180-0969 AR
TUBE,9X17.5X52 92192 92192-1482 1
TUBE,PIPE COMP-OIL PAN 92192A 92192-1501 1
NUT,FLANGED,8MM 92210 92210-0555 1
