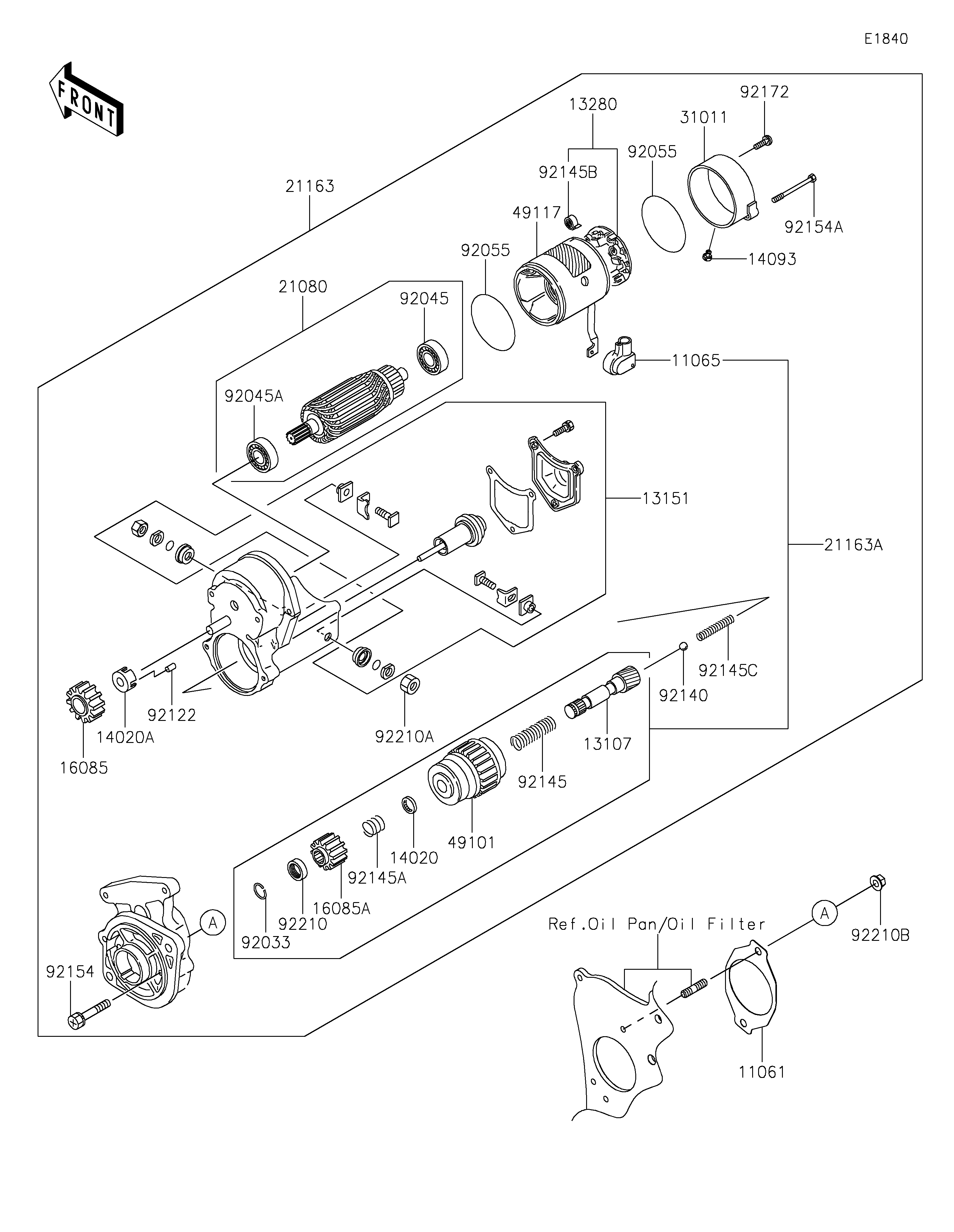

2021 MULE PRO-DXT™ EPS DIESEL - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
11061
11065
13107
13151
13280
14020
14020A
14093
16085
16085A
21080
21163
21163A
31011
49101
49117
92033
92045
92045A
92055
92055
92122
92140
92145
92145A
92145B
92145C
92154
92154A
92172
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,STARTER 11061 11061-1195 1
CAP 11065 11065-0939 1
SHAFT 13107 13107-0841 1
SWITCH-COMP,MAGNET 13151 13151-0573 1
HOLDER 13280 13280-0863 1
RETAINER 14020 14020-0020 1
RETAINER 14020A 14020-0021 1
COVER 14093 14093-0449 1
GEAR,PINION 16085 16085-0649 1
GEAR,PINION 16085A 16085-0652 1
ARMATURE 21080 21080-0010 1
STARTER-ELECTRIC 21163 21163-0752 1
STARTER-ELECTRIC 21163A 21163-0753 1
FRAME 31011 31011-0029 1
CLUTCH,STARTER 49101 49101-0002 1
YOKE 49117 49117-0593 1
RING-SNAP 92033 92033-0775 1
BEARING-BALL 92045 92045-0808 1
BEARING-BALL 92045A 92045-0809 1
RING-O 92055 92055-0863 2
ROLLER 92122 92122-0048 5
BALL 92140 92140-0017 1
SPRING 92145 92145-1713 1
SPRING 92145A 92145-1714 1
SPRING 92145B 92145-1715 4
SPRING 92145C 92145-1716 1
BOLT 92154 92154-2072 2
BOLT 92154A 92154-2073 2
SCREW 92172 92172-0988 2
NUT 92210 92210-1470 1
NUT 92210A 92210-1472 1
NUT,8MM 92210B 92210-1473 2
