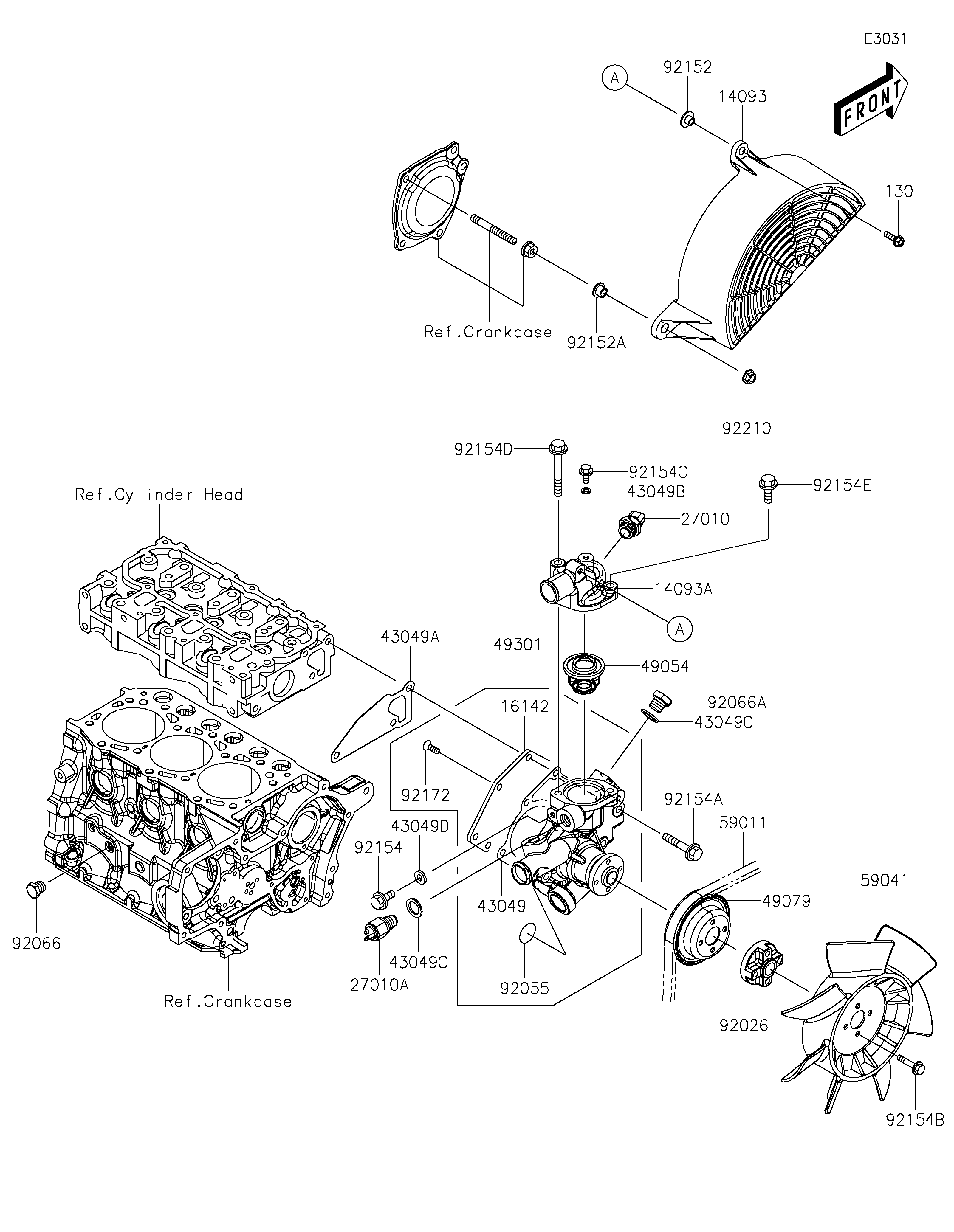

2021 MULE PRO-DXT™ EPS DIESEL - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
130
14093
14093A
16142
27010
27010A
43049
43049A
43049B
43049C
43049C
43049D
49054
49079
49301
59011
59041
92026
92055
92066
92066A
92152
92152A
92154
92154A
92154B
92154C
92154D
92154E
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130BA0620 1
COVER,FAN 14093 14093-0297 1
COVER,THERMOSTAT 14093A 14093-0446 1
COVER-PUMP 16142 16142-0736 1
SWITCH,THERMOSTAT 27010 27010-0839 1
SWITCH,THERMO 27010A 27010-0840 1
PACKING,WATER PUMP 43049 43049-0040 1
PACKING,WATER PUMP 43049A 43049-0041 1
PACKING,6X1 43049B 43049-0042 1
PACKING 43049C 43049-0043 2
PACKING,8X1 43049D 43049-0047 1
THERMOSTAT 49054 49054-0008 1
PULLEY-BELT 49079 49079-0027 1
PUMP-ASSY-WATER 49301 49301-0003 1
BELT,A35 59011 59011-0045 1
FAN,COOLING 59041 59041-0015 1
SPACER 92026 92026-0820 1
RING-O 92055 92055-0858 1
PLUG,DRAIN 92066 92066-0853 1
PLUG 92066A 92066-0854 1
COLLAR 92152 92152-0181 1
COLLAR 92152A 92152-0613 1
BOLT,FLANGED,8X12 92154 92154-1999 1
BOLT,FLANGED,8X45 92154A 92154-2000 3
BOLT,FLANGED,6X30 92154B 92154-2067 4
BOLT,FLANGED,6X10 92154C 92154-2068 1
BOLT,FLANGED,8X65 92154D 92154-2070 1
BOLT,FLANGED,8X28 92154E 92154-2110 1
SCREW,6X12 92172 92172-0987 5
NUT,FLANGED,8MM 92210 92210-0555 1
