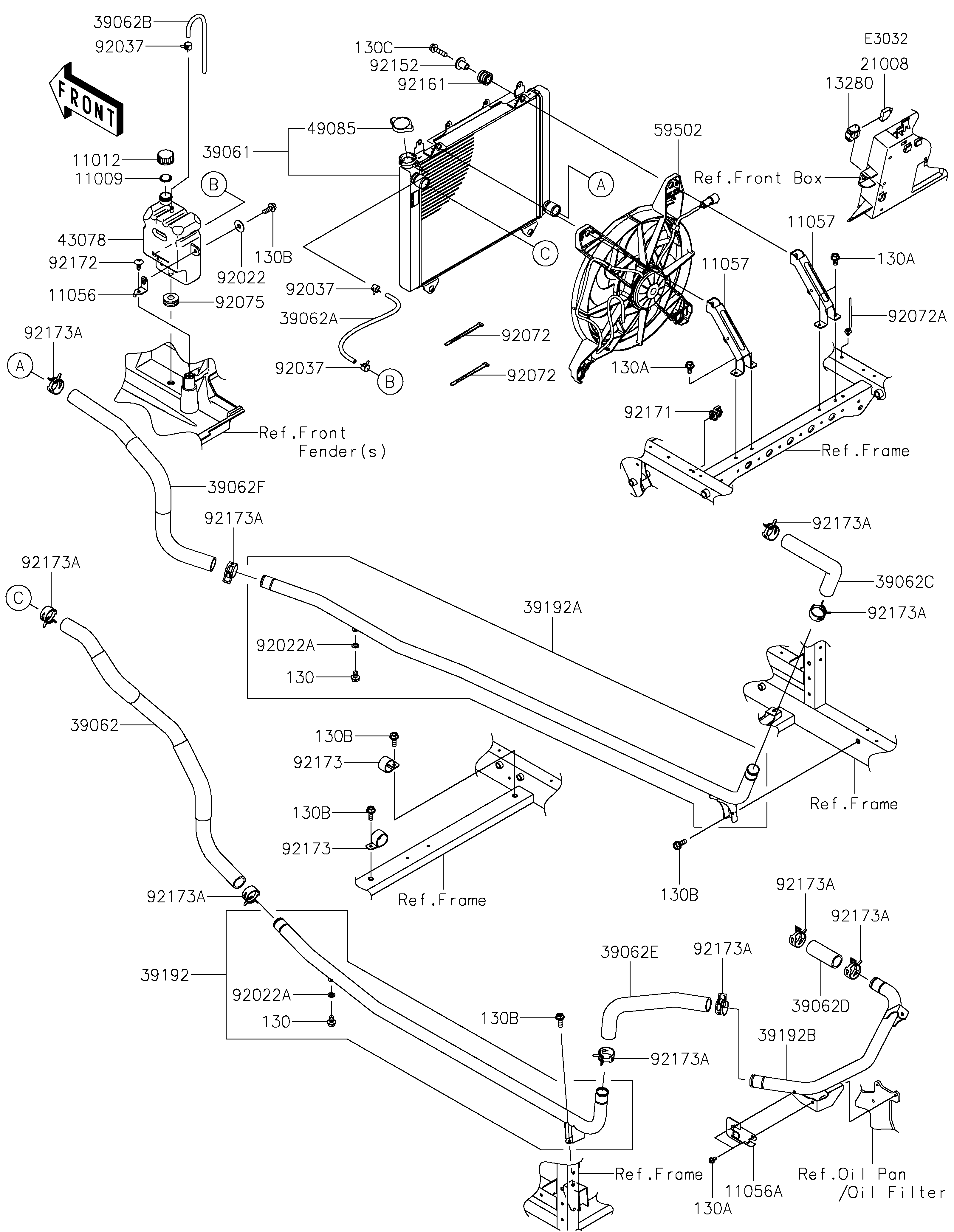

2021 MULE PRO-DXT™ EPS DIESEL - Radiator
11009
11012
11056
11056A
11057
11057
130
130
130A
130A
130A
130B
130B
130B
130B
130B
130C
13280
21008
39061
39062
39062A
39062B
39062C
39062D
39062E
39062F
39192
39192A
39192B
43078
49085
59502
92022
92022A
92022A
92037
92037
92037
92072
92072
92072A
92075
92152
92161
92171
92172
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| BRACKET,RESERVOIR | 11056 | 11056-3856 | 1 | ||
| BRACKET,HARNESS | 11056A | 11056-7479 | 1 | ||
| BRACKET,RADIATOR | 11057 | 11057-0774 | 2 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 2 | ||
| BOLT-FLANGED,6X12 | 130A | 130BA0612 | 6 | ||
| BOLT-FLANGED,6X16 | 130B | 130BA0616 | 5 | ||
| BOLT-FLANGED,6X25 | 130C | 130BA0625 | 4 | ||
| HOLDER,BREAKER | 13280 | 13280-0898 | 1 | ||
| BREAKER,RAD. FAN,20A | 21008 | 21008-0011 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0706 | 1 | ||
| HOSE-COOLING,RADIATOR IN | 39062 | 39062-0650 | 1 | ||
| HOSE-COOLING,RAD.-RESERVOIR | 39062A | 39062-0657 | 1 | ||
| HOSE-COOLING,OVER FLOW | 39062B | 39062-0696 | 1 | ||
| HOSE-COOLING,ENGINE IN | 39062C | 39062-0713 | 1 | ||
| HOSE-COOLING,ENGINE OUT | 39062D | 39062-0714 | 1 | ||
| HOSE-COOLING,ENGINE OUT | 39062E | 39062-0715 | 1 | ||
| HOSE-COOLING,RADIATOR OUT | 39062F | 39062-0777 | 1 | ||
| PIPE-WATER,LH | 39192 | 39192-0575 | 1 | ||
| PIPE-WATER,RH | 39192A | 39192-0591 | 1 | ||
| PIPE-WATER,CNT | 39192B | 39192-0593 | 1 | ||
| RESERVOIR | 43078 | 43078-0571 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0005 | 1 | ||
| FAN-ASSY | 59502 | 59502-0609 | 1 | ||
| WASHER,PLAIN,6.5X20X1 | 92022 | 92022-165 | 1 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 3 | ||
| BAND,L=123 | 92072 | 92072-030 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072A | 92072-1414 | 1 | ||
| DAMPER | 92075 | 92075-1185 | 1 | ||
| COLLAR | 92152 | 92152-1512 | 4 | ||
| DAMPER | 92161 | 92161-1349 | 4 | ||
| CLAMP | 92171 | 92171-0453 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 1 | ||
| CLAMP | 92173 | 92173-1204 | 2 | ||
| CLAMP,28.6MM | 92173A | 92173-1205 | 10 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RESERVOIR | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HARNESS | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RADIATOR | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BREAKER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER,RAD. FAN,20A | |
| REF # | 21008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RADIATOR IN | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.-RESERVOIR | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,OVER FLOW | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,ENGINE IN | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,ENGINE OUT | |
| REF # | 39062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,ENGINE OUT | |
| REF # | 39062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RADIATOR OUT | |
| REF # | 39062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER,LH | |
| REF # | 39192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER,RH | |
| REF # | 39192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER,CNT | |
| REF # | 39192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,6.5X20X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,OS170-FT7(BLACK) | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,28.6MM | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
