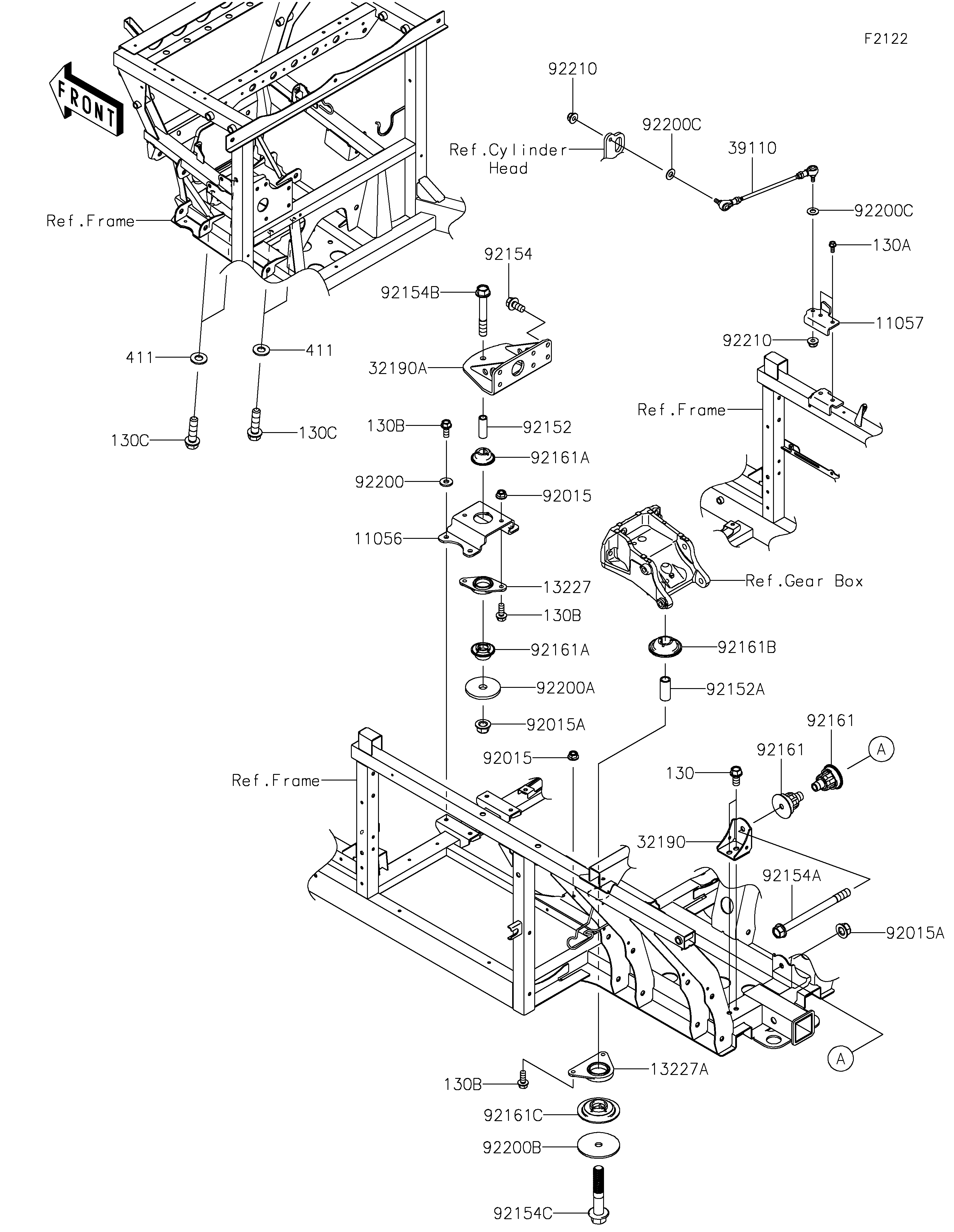

2021 MULE PRO-DXT™ EPS DIESEL - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
130
130A
130B
130B
130B
130C
130C
13227
13227A
32190
32190A
39110
411
411
92015
92015
92015A
92015A
92152
92152A
92154
92154A
92154B
92154C
92161
92161
92161A
92161A
92161B
92161C
92200
92200A
92200B
92200C
92200C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-7475 1
BRACKET,TORQUE ROD 11057 11057-2696 1
BOLT-FLANGED,10X20 130 130BA1020 2
BOLT-FLANGED,8X18 130A 130CA0818 2
BOLT-FLANGED,8X20 130B 130CA0820 8
BOLT-FLANGED,12X45 130C 130CA1245 4
HOUSING 13227 13227-0031 1
HOUSING 13227A 13227-0032 1
BRACKET-ENGINE 32190 32190-0662 1
BRACKET-ENGINE,FR 32190A 32190-0701 1
ROD-ASSY-TIE 39110 39110-0050 1
WASHER-PLAIN,12MM 411 411AA1200 4
NUT,LOCK,FLANGED,8MM 92015 92015-1397 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 2
COLLAR,13X19.1X54 92152 92152-1802 1
COLLAR,17X23.8X54.5 92152A 92152-2127 1
BOLT,FLANGED,10X20 92154 92154-1321 6
BOLT,FLANGED,12X150 92154A 92154-1322 1
BOLT,FLANGED,12X80 92154B 92154-1419 1
BOLT,FLANGED,16X86 92154C 92154-1763 1
DAMPER 92161 92161-1616 2
DAMPER 92161A 92161-1617 2
DAMPER 92161B 92161-1618 1
DAMPER 92161C 92161-1619 1
WASHER,8.2X20.0X2.5 92200 92200-0205 4
WASHER,12.5X55X4.76 92200A 92200-0913 1
WASHER,16.5X100X4.76 92200B 92200-1747 1
WASHER,8.5X18X1 92200C 92200-2284 2
NUT,FLANGED,LOCK,8MM 92210 92210-0493 2
