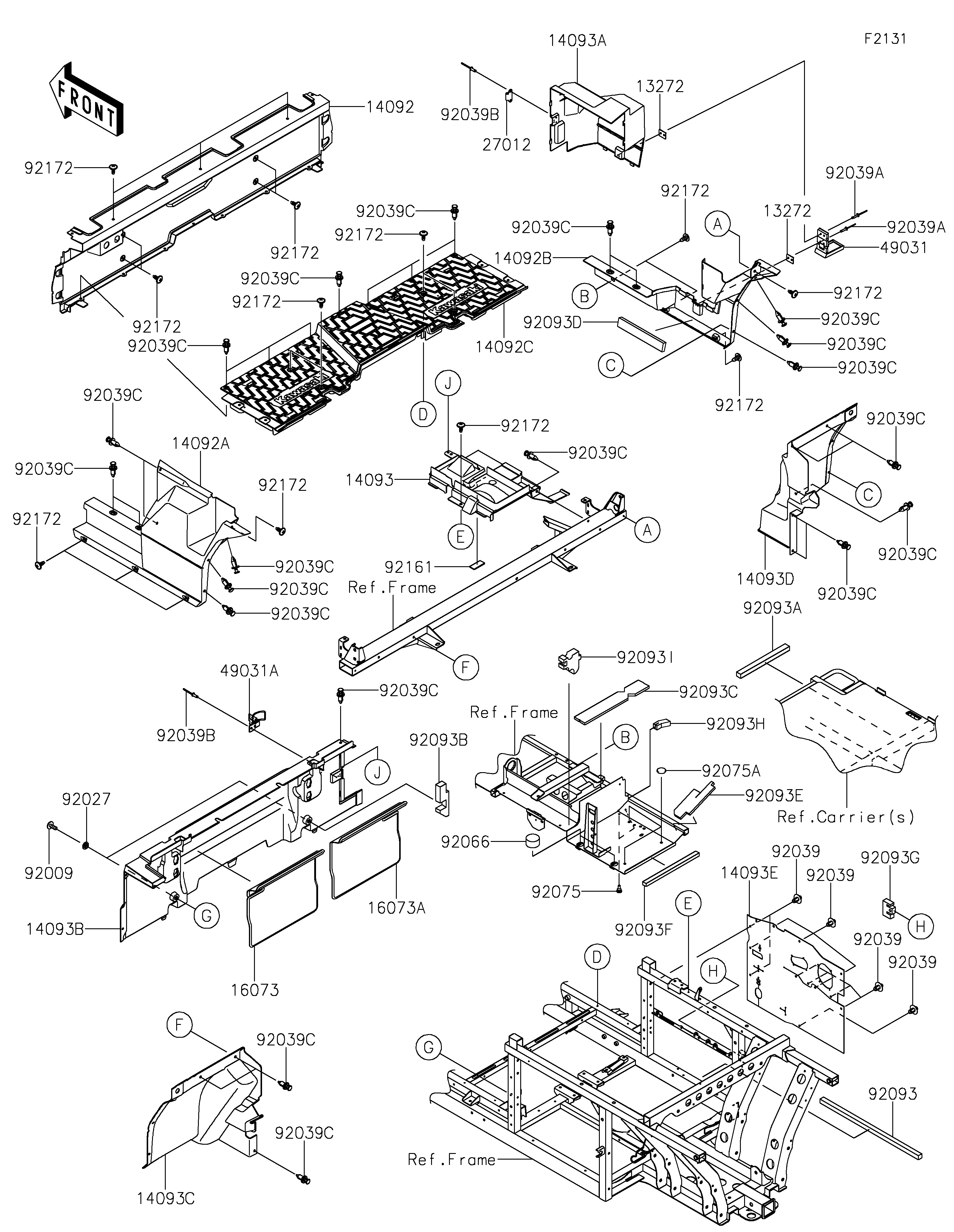

2021 MULE PRO-DXT™ EPS DIESEL - Frame Fittings(Rear)
13272
13272
14092
14092A
14092B
14092C
14093
14093A
14093B
14093C
14093D
14093E
16073
16073A
27012
49031
49031A
92009
92027
92039
92039
92039
92039
92039A
92039A
92039B
92039B
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92039C
92066
92075
92075A
92093
92093A
92093B
92093C
92093D
92093E
92093F
92093G
92093H
92093I
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,LATCH | 13272 | 13272-1828 | 2 | ||
| COVER,RR FLOOR,FR | 14092 | 14092-1186 | 1 | ||
| COVER,SIDE,LH,RR | 14092A | 14092-1190 | 1 | ||
| COVER,SIDE,RH,RR | 14092B | 14092-1191 | 1 | ||
| COVER,FLOOR,BOTTOM | 14092C | 14092-1196 | 1 | ||
| COVER,DUST | 14093 | 14093-0296 | 1 | ||
| COVER,A/C | 14093A | 14093-0366 | 1 | ||
| COVER,RR SEAT | 14093B | 14093-0367 | 1 | ||
| COVER,RR,FLOOR,MUD,LH | 14093C | 14093-0388 | 1 | ||
| COVER,RR,FLOOR,MUD,RH | 14093D | 14093-0389 | 1 | ||
| COVER,MAINTENANCE ROOM,RUBBER | 14093E | 14093-0634 | 1 | ||
| INSULATOR,LH | 16073 | 16073-0814 | 1 | ||
| INSULATOR,RH | 16073A | 16073-0815 | 1 | ||
| HOOK,STRIKER | 27012 | 27012-0806 | 1 | ||
| LATCH,A/C | 49031 | 49031-0007 | 1 | ||
| LATCH,TOGGLE | 49031A | 49031-0015 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 2 | ||
| COLLAR,L=4.6 | 92027 | 92027-1168 | 2 | ||
| RIVET | 92039 | 92039-0086 | 12 | ||
| RIVET,3.2X13.4 | 92039A | 92039-0739 | 4 | ||
| RIVET | 92039B | 92039-0747 | 4 | ||
| RIVET | 92039C | 92039-0776 | 29 | ||
| PLUG,36X20 | 92066 | 92066-0812 | 2 | ||
| DAMPER,6X10X15 | 92075 | 92075-1808 | 2 | ||
| DAMPER,RUBBER | 92075A | 92075-261 | 3 | ||
| SEAL,DUST,20X20X565 | 92093 | 92093-0631 | 1 | ||
| SEAL,DUST,20X25X280 | 92093A | 92093-0633 | 1 | ||
| SEAL,165X50X25 | 92093B | 92093-0642 | 1 | ||
| SEAL,DUST,61X368X10 | 92093C | 92093-0643 | 1 | ||
| SEAL,DUST,39X255X15 | 92093D | 92093-0644 | 1 | ||
| SEAL,DUST,69X207X10 | 92093E | 92093-0645 | 1 | ||
| SEAL,DUST,15X305X20 | 92093F | 92093-0646 | 1 | ||
| SEAL,52X72X20 | 92093G | 92093-0651 | 1 | ||
| SEAL,21.5X60X20 | 92093H | 92093-0652 | 1 | ||
| SEAL,99X85X30 | 92093I | 92093-0716 | 1 | ||
| DAMPER,25X60X3.175 | 92161 | 92161-1827 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0711 | 20 |
