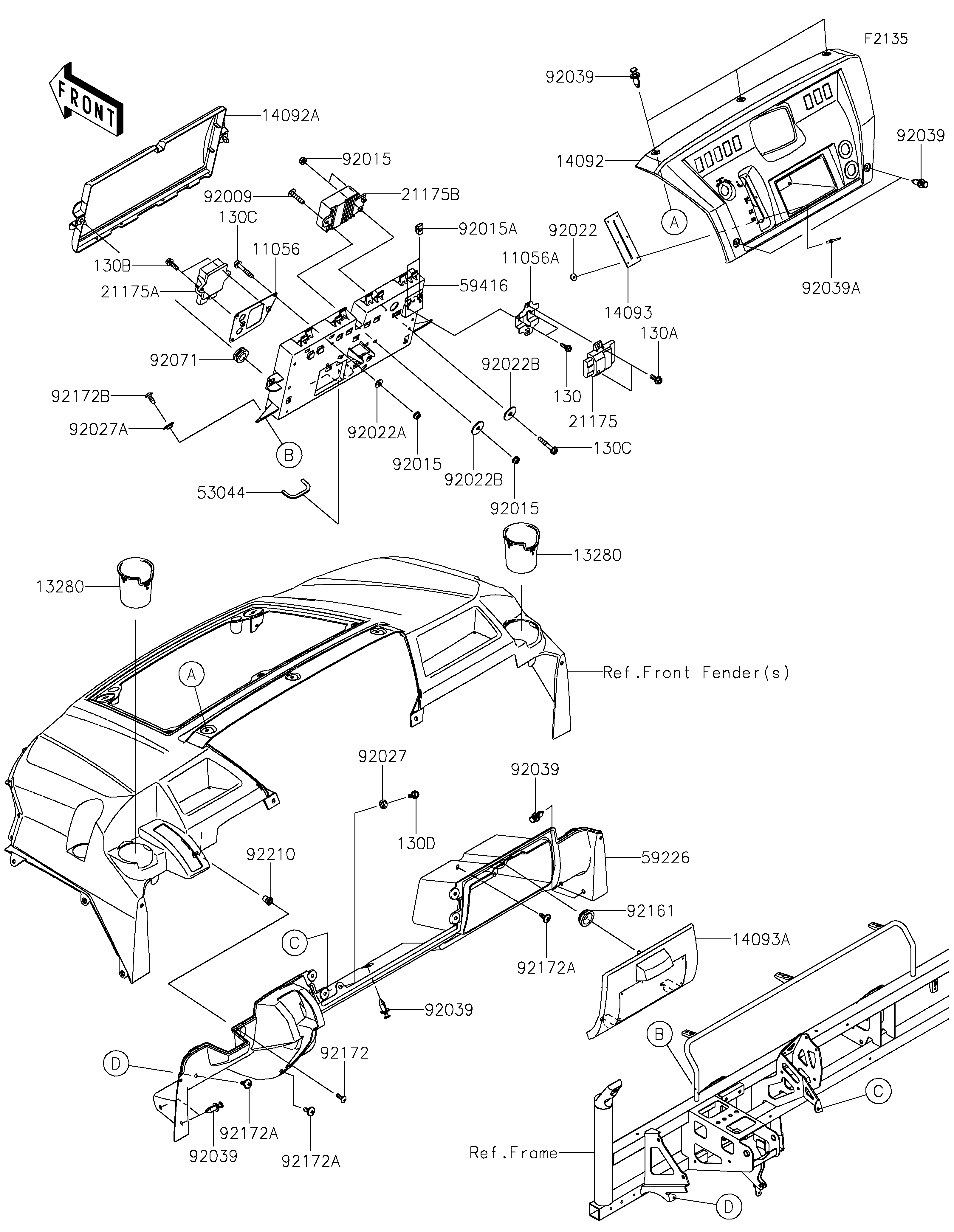

2021 MULE PRO-DXT™ EPS DIESEL - Front Box

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
130
130A
130B
130C
130C
130D
13280
13280
14092
14092A
14093
14093A
21175
21175A
21175B
53044
59226
59416
92009
92015
92015
92015
92015A
92022
92022A
92022B
92022B
92027
92027A
92039
92039
92039
92039
92039
92039A
92071
92161
92172
92172A
92172A
92172A
92172B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SOLENOID 11056 11056-7476 1
BRACKET,CONTROLLER 11056A 11056-7477 1
BOLT-FLANGED,5X16 130 130BA0516 2
BOLT-FLANGED,6X16 130A 130BA0616 2
BOLT-FLANGED,6X18 130B 130BA0618 2
BOLT-FLANGED,6X35 130C 130BA0635 5
BOLT-FLANGED,6X16 130D 130CA0616 1
HOLDER,CUP 13280 13280-0774 2
COVER,DASHBOARD 14092 14092-1192 1
COVER,ELECTRIC BOX 14092A 14092-1197 1
COVER,SHIFT LEVER 14093 14093-0146 1
COVER,GLOVE BOX 14093A 14093-1061 1
ECU,VEHICLE CONTROLLER(DRIVE) 21175 21175-1105 1
ECU,AIR PRESSURE SENSOR(FUEL) 21175A 21175-1113 1
ECU,ELECTRIC POWER STEERING 21175B 21175-1185 1
TRIM 53044 53044-0572 1
PANEL-CONTROL 59226 59226-0042 1
CASE-ELECTRIC 59416 59416-0025 1
SCREW,6X28,BLACK 92009 92009-1400 1
NUT,FLANGED,6MM 92015 92015-1367 6
NUT,5MM 92015A 92015-1627 2
WASHER,3.3X12X1.2 92022 92022-1407 6
WASHER 92022A 92022-2247 3
WASHER,6.5X22X1.6 92022B 92022-237 3
COLLAR,L=4.6 92027 92027-1168 1
COLLAR,L=5.1 92027A 92027-1260 2
RIVET 92039 92039-0776 10
RIVET 92039A 92039-1231 6
GROMMET 92071 92071-1131 2
DAMPER,7.8X30X11 92161 92161-1953 1
SCREW,5MM 92172 92172-0292 1
SCREW,6X16 92172A 92172-0711 3
SCREW,TAPPING,6X16 92172B 92172-0739 2
NUT,WELL,5MM 92210 92210-0370 1
