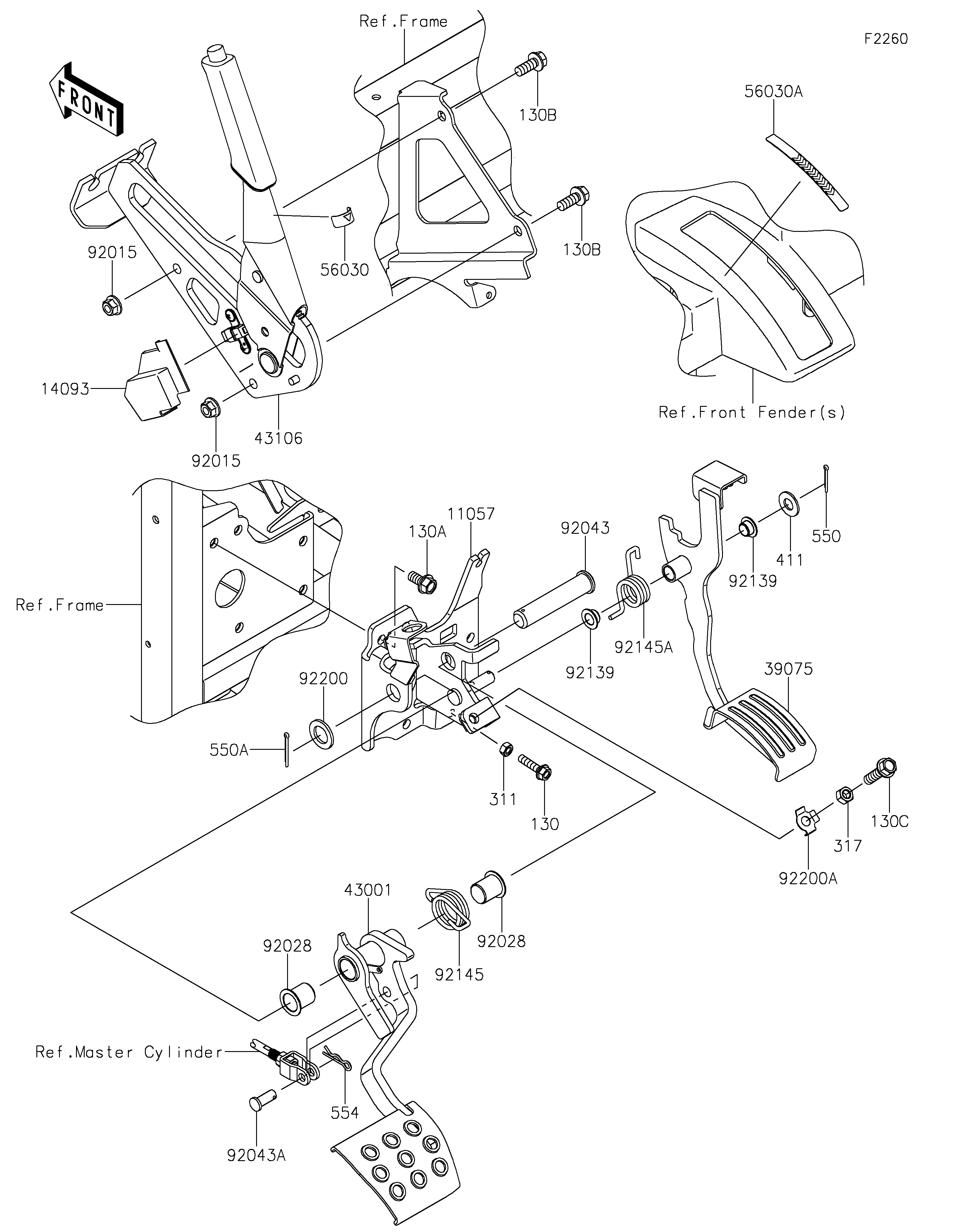

2021 MULE PRO-DXT™ EPS DIESEL - Brake Pedal/Throttle Lever

DOWNLOAD PDF
SELECT A NEW PART
11057
130
130A
130B
130B
130C
14093
311
317
39075
411
43001
43106
550
550A
554
56030
56030A
92015
92015
92028
92028
92043
92043A
92139
92139
92145
92145A
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PARKING BRAKE 11057 11057-0727 1
BOLT-FLANGED,6X25 130 130BA0625 1
BOLT-FLANGED,8X18 130A 130BA0818 5
BOLT-FLANGED,8X20 130B 130BA0820 2
BOLT-FLANGED,8X30 130C 130BA0830 1
COVER,PARKING BRAKE SW. 14093 14093-0241 1
NUT-HEX,6MM 311 311BA0600 1
NUT-HEX-SMALL,8MM 317 317BA0800 1
LEVER-THROTTLE 39075 39075-0024 1
WASHER-PLAIN,10MM 411 411AA1000 1
LEVER-BRAKE,FOOT 43001 43001-0752 1
LEVER-ASSY-PARKING BRAKE 43106 43106-0006 1
PIN-COTTER,2.5X18 550 550AA2518 1
PIN-COTTER,2.5X25 550A 550AA2525 1
PIN-SNAP,10MM 554 554DA1000 1
LABEL,ARROW 56030 56030-0905 1
LABEL,STROKE RANGE 56030A 56030-0930 1
NUT,FLANGED,8MM 92015 92015-1406 2
BUSHING 92028 92028-1571 2
PIN,16X78 92043 92043-0917 1
PIN 92043A 92043-1039 1
BUSHING 92139 92139-0230 2
SPRING,BRAKE PEDAL RETURN 92145 92145-1615 1
SPRING,RETURN,22X3.2 92145A 92145-1768 1
WASHER,16X26X2.3 92200 92200-0043 1
WASHER,8.5X17X0.8 92200A 92200-0993 1
