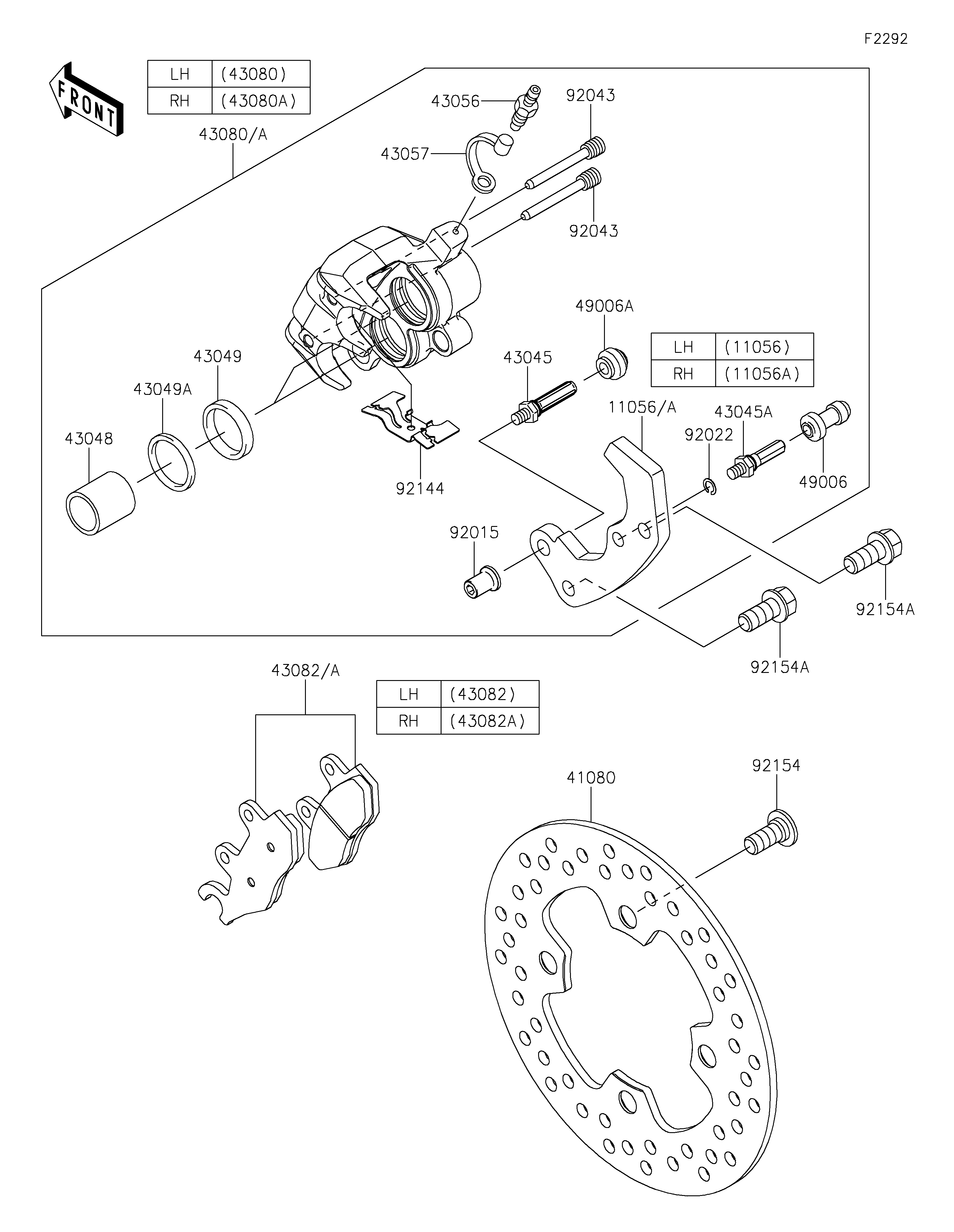

2021 MULE PRO-DXT™ EPS DIESEL - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
41080
43045
43045A
43048
43049
43049A
43056
43057
43080
43080A
43082
43082A
49006
49006A
92015
92022
92043
92043
92144
92154
92154A
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-3807 1
BRACKET,RH 11056A 11056-3829 1
DISC 41080 41080-0608 2
SHAFT-CALIPER 43045 43045-0011 2
SHAFT-CALIPER 43045A 43045-1010 2
PISTON-CALIPER 43048 43048-1068 4
PACKING,PISTON SEAL 43049 43049-1060 4
PACKING,PISTON SEAL 43049A 43049-1061 4
BREATHER 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
CALIPER-SUB-ASSY,FR,LH 43080 43080-0138 1
CALIPER-SUB-ASSY,FR,RH 43080A 43080-0139 1
PAD-ASSY-BRAKE,FR,LH 43082 43082-0138 1
PAD-ASSY-BRAKE,FR,RH 43082A 43082-0146 1
BOOT,CALIPER 49006 49006-1088 2
BOOT,CALIPER 49006A 49006-1242 2
NUT 92015 92015-1740 2
WASHER,WAVE 92022 92022-1373 2
PIN,HANGER 92043 92043-1416 4
SPRING,PAD 92144 92144-1847 2
BOLT,SOCKET,10X23 92154 92154-0713 8
BOLT,FLANGED,10X22 92154A 92154-1327 4
