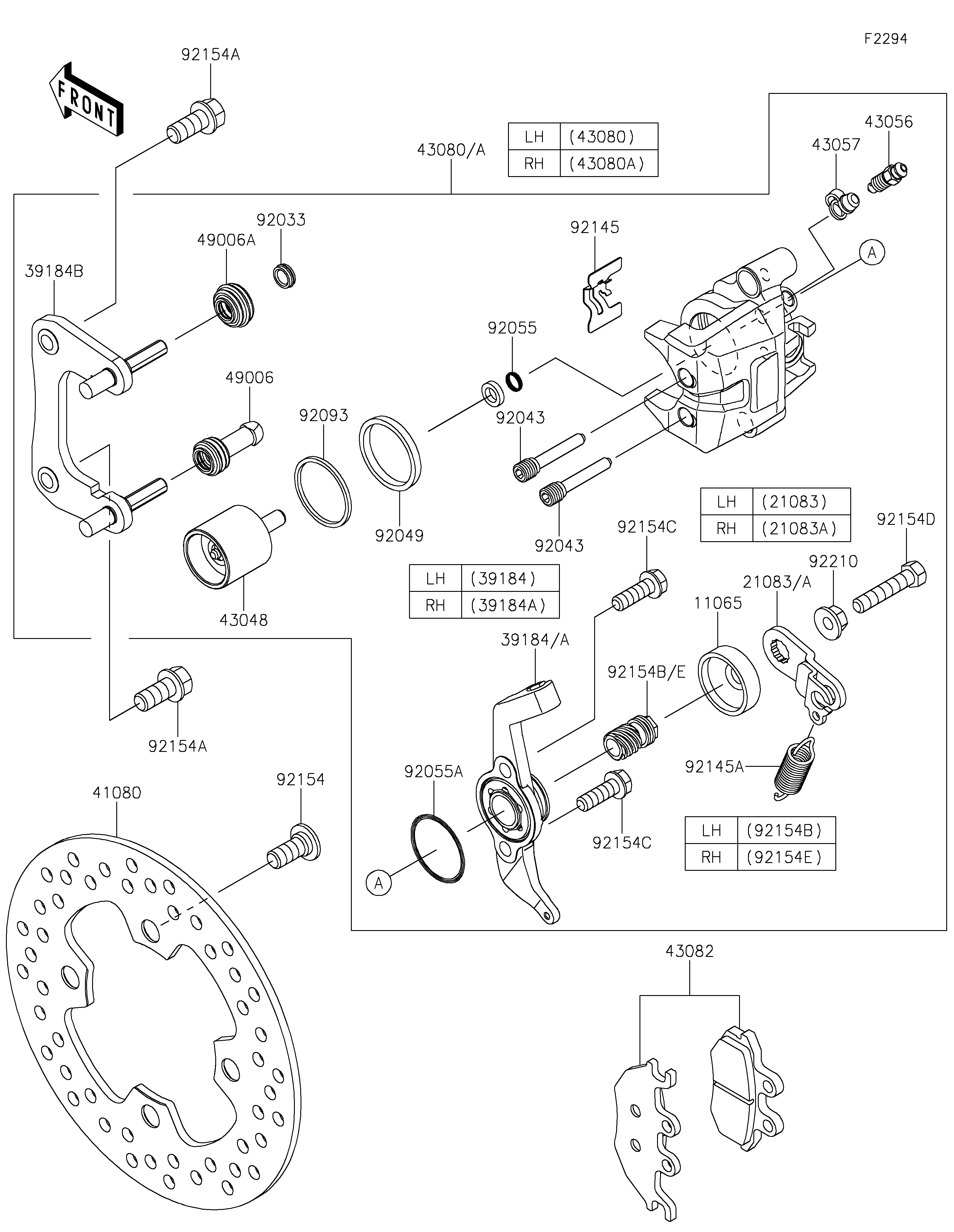

2021 MULE PRO-DXT™ EPS DIESEL - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
11065
21083
21083A
39184
39184A
39184B
41080
43048
43056
43057
43080
43080A
43082
49006
49006A
92033
92043
92043
92049
92055
92055A
92093
92145
92145A
92154
92154A
92154A
92154B
92154C
92154C
92154D
92154E
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0870 2
ARM,BRAKE,RR,LH 21083 21083-0728 1
ARM,BRAKE,RR,RH 21083A 21083-0729 1
BRACKET-ASSY,LH 39184 39184-0042 1
BRACKET-ASSY,RH 39184A 39184-0043 1
BRACKET-ASSY 39184B 39184-0044 2
DISC 41080 41080-0608 2
PISTON-CALIPER 43048 43048-0027 2
BREATHER-BRAKE 43056 43056-0010 2
CAP-BREATHER 43057 43057-0552 2
CALIPER-SUB-ASSY,RR,LH 43080 43080-0163 1
CALIPER-SUB-ASSY,RR,RH 43080A 43080-0164 1
PAD-ASSY-BRAKE 43082 43082-0140 2
BOOT 49006 49006-0591 2
BOOT 49006A 49006-0592 2
RING-SNAP 92033 92033-0749 2
PIN 92043 92043-0818 4
SEAL-OIL 92049 92049-0765 2
RING-O 92055 92055-0793 2
RING-O 92055A 92055-0795 2
SEAL 92093 92093-0613 2
SPRING 92145 92145-1619 2
SPRING,RETURN,47MM 92145A 92145-1690 2
BOLT,SOCKET,10X23 92154 92154-0713 8
BOLT,FLANGED,10X22 92154A 92154-1327 4
BOLT,LH 92154B 92154-1479 1
BOLT 92154C 92154-1480 4
BOLT 92154D 92154-1481 2
BOLT,RH 92154E 92154-1503 1
NUT 92210 92210-0912 2
