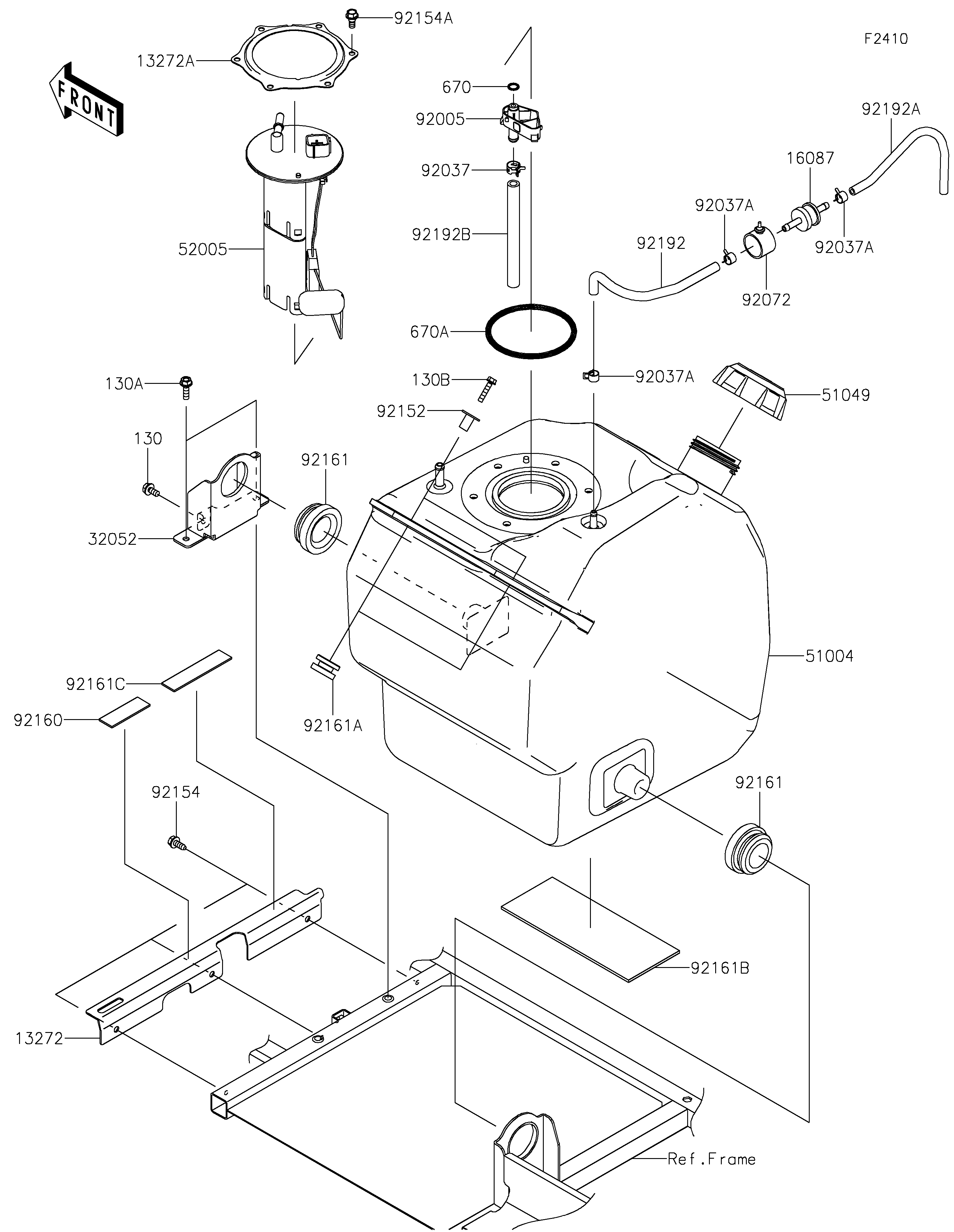

2021 MULE PRO-DXT™ EPS DIESEL - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
13272
13272A
16087
32052
51004
51049
52005
670
670A
92005
92037
92037A
92037A
92037A
92072
92152
92154
92154A
92160
92161
92161
92161A
92161B
92161C
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X20 130A 130BA0620 2
BOLT-FLANGED,6X30 130B 130BA0630 2
PLATE 13272 13272-2206 1
PLATE 13272A 13272-2500 1
VALVE-CHECK 16087 16087-0008 1
BRACKET-TANK 32052 32052-0751 1
TANK-FUEL 51004 51004-0019 1
CAP-TANK,FUEL 51049 51049-0718 1
GAUGE,FUEL 52005 52005-0753 1
O RING,9MM 670 670E1509 1
O RING 670A 670E5090 1
FITTING 92005 92005-0813 1
CLAMP,HOSE CLIP 92037 92037-1181 1
CLAMP,TUBE 92037A 92037-1461 3
BAND 92072 92072-0850 1
COLLAR,6.8X10X18.1 92152 92152-1867 2
BOLT,6X15.6 92154 92154-1250 3
BOLT,FUEL PUMP 92154A 92154-1326 6
DAMPER 92160 92160-1075 1
DAMPER,30X56X25 92161 92161-1613 2
DAMPER,10X28X17 92161A 92161-1614 2
DAMPER,80X200X3.175 92161B 92161-1645 1
DAMPER 92161C 92161-1876 1
TUBE,BREATHER 92192 92192-0773 1
TUBE,BREATHER,5X9X220 92192A 92192-1199 1
TUBE,FUEL,8X13X137 92192B 92192-1474 1
