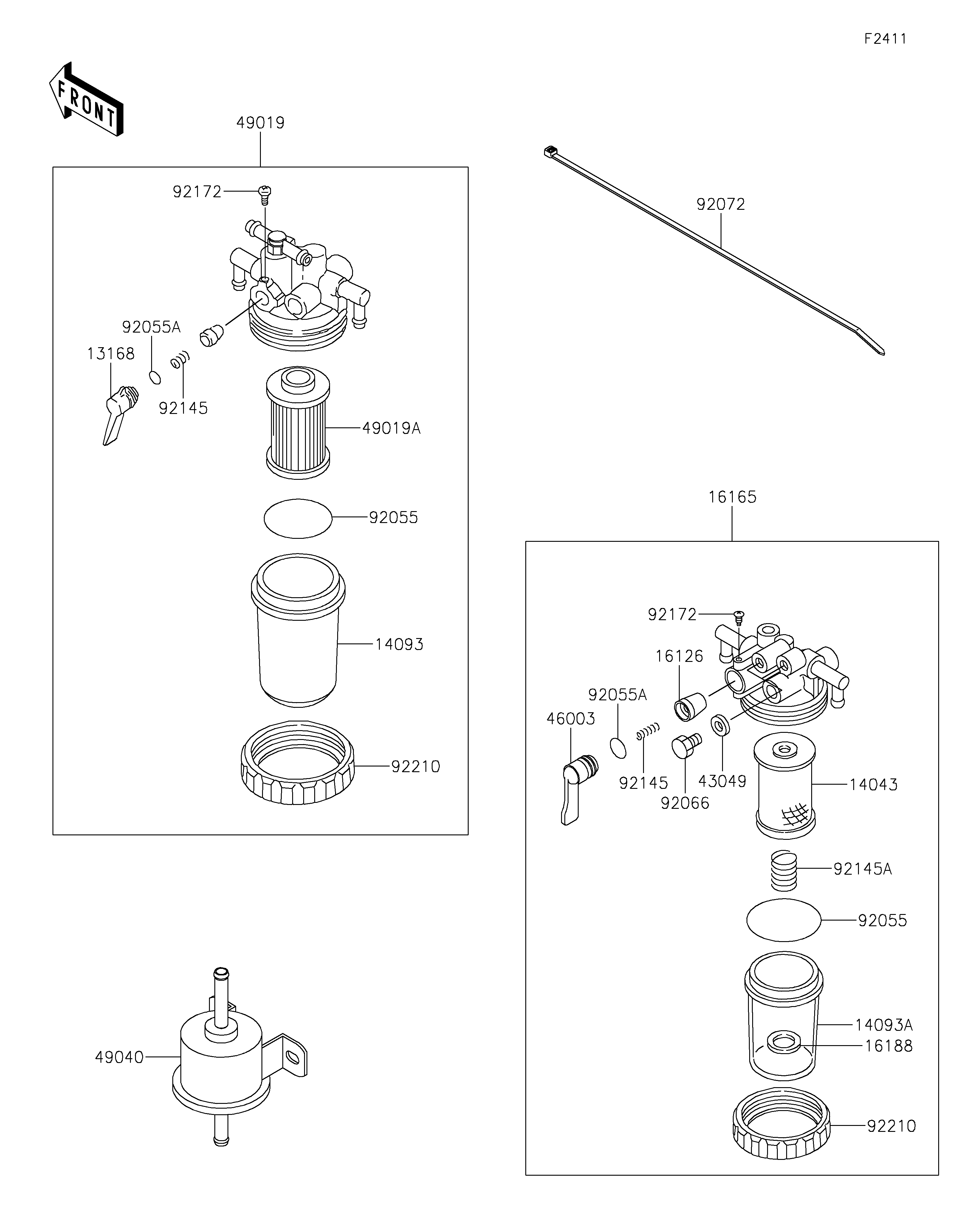

2021 MULE PRO-DXT™ EPS DIESEL - Fuel Filter

DOWNLOAD PDF
SELECT A NEW PART
13168
14043
14093
14093A
16126
16165
16188
43049
46003
49019
49019A
49040
92055
92055
92055A
92055A
92066
92072
92145
92145
92145A
92172
92172
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER 13168 13168-0845 1
FILTER 14043 14043-0018 1
COVER 14093 14093-0452 1
COVER 14093A 14093-0453 1
VALVE 16126 16126-0738 1
SEPARATOR,WATER 16165 16165-0012 1
FLOAT 16188 16188-0038 1
PACKING,6X1 43049 43049-0046 2
HANDLE 46003 46003-0665 1
FILTER-FUEL 49019 49019-0020 1
FILTER-FUEL,ELEMENT 49019A 49019-0026 1
PUMP-FUEL 49040 49040-0747 1
RING-O 92055 92055-0864 2
RING-O 92055A 92055-0865 2
PLUG 92066 92066-0856 2
BAND,L=292.1 92072 92072-3509 1
SPRING,VALVE 92145 92145-1718 2
SPRING 92145A 92145-1719 1
SCREW 92172 92172-0992 2
NUT,FILTER 92210 92210-1494 2
