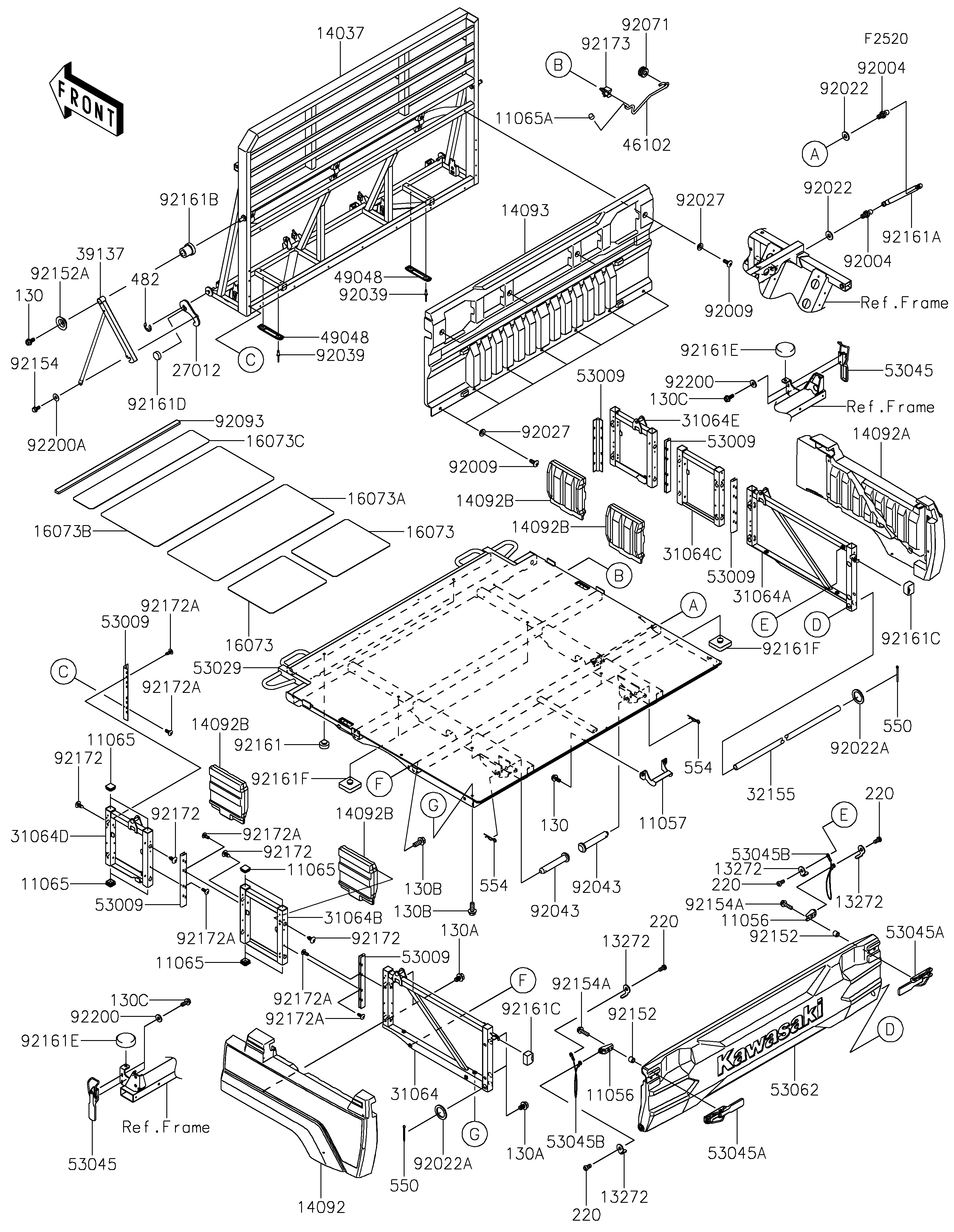

2021 MULE PRO-DXT™ EPS DIESEL - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056
11056
11057
11057
11065
11065
11065
11065
11065
11065
11065
11065
11065A
11065A
13272
13272
13272
13272
13272
13272
13272
13272
14037
14037
14092
14092
14092A
14092A
14092B
14092B
14092B
14092B
14092B
14092B
14092B
14092B
14093
14093
16073
16073
16073
16073
16073A
16073A
16073B
16073B
16073C
16073C
27012
27012
31064
31064
31064A
31064A
31064B
31064B
31064C
31064C
31064D
31064D
31064E
31064E
32155
32155
39137
39137
46102
46102
49048
49048
49048
49048
53009
53009
53009
53009
53009
53009
53009
53009
53009
53009
53009
53009
53029
53029
53045
53045
53045
53045
53045A
53045A
53045A
53045A
53045B
53045B
53045B
53045B
53062
53062
92004
92004
92004
92004
92009
92009
92009
92009
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92027
92027
92027
92027
92039
92039
92039
92039
92043
92043
92043
92043
92071
92071
92093
92093
130
130
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
220
220
220
220
220
220
220
220
482
482
550
550
550
550
554
554
554
554
92152
92152
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92161E
92161E
92161E
92161E
92161F
92161F
92161F
92161F
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92173
92173
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STOPPER 11056 11056-2848 2
BRACKET,GATE SUPPORT 11057 11057-1438 1
CAP 11065 11065-0848 16
CAP 11065A 11065-7504 1
PLATE 13272 13272-1597 4
SCREEN 14037 14037-0787 1
COVER,SIDE PANEL,RR,LH,F.BLACK 14092 14092-1179-6Z 1
COVER,SIDE PANEL,RR,RH,F.BLACK 14092A 14092-1180-6Z 1
COVER,SIDE PANEL,L&R 14092B 14092-1181 4
COVER,SCREEN 14093 14093-0301 1
INSULATOR,265X335 16073 16073-0878 2
INSULATOR,295X705 16073A 16073-0879 1
INSULATOR,335X705 16073B 16073-0882 1
INSULATOR,115X705 16073C 16073-0883 1
HOOK,SCREEN 27012 27012-0787 2
PIPE-COMP,RR,LH 31064 31064-0634 1
PIPE-COMP,RR,RH 31064A 31064-0635 1
PIPE-COMP,MIDDLE,LH 31064B 31064-0638 1
PIPE-COMP,MIDDLE,RH 31064C 31064-0639 1
PIPE-COMP,FR,LH 31064D 31064-0640 1
PIPE-COMP,FR,RH 31064E 31064-0641 1
PIPE 32155 32155-1533 1
STAY-COMP 39137 39137-0661 2
ROD 46102 46102-0606 1
SHOE,SCREEN 49048 49048-0005 2
HINGE 53009 53009-0031 6
CARRIER,BASE 53029 53029-0349 1
HOOK-ASSY,MAIN LOCK 53045 53045-0025 2
HOOK-ASSY,MAIN CLAMP 53045A 53045-0026 2
HOOK-ASSY 53045B 53045-0029 2
GATE-TAIL 53062 53062-0022 1
STUD 92004 92004-0733 2
SCREW,TAPPING,6X16 92009 92009-1166 11
WASHER,8.2X19X2 92022 92022-1533 2
WASHER,23X32X2.3 92022A 92022-1618 2
COLLAR,L=4.6 92027 92027-1168 11
RIVET,3.2X8 92039 92039-3763 4
PIN,12.4X72.4 92043 92043-0716 2
GROMMET,7.5X14X11 92071 92071-0763 1
SEAL,20X720X10 92093 92093-0679 1
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,8X12 130A 130BA0812 8
BOLT-FLANGED,8X20 130B 130BA0820 8
BOLT-FLANGED,6X16 130C 130CA0616 4
SCREW-PAN-CROS,6X10 220 220AB0610 4
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
PIN-COTTER,3.0X30 550 550AA3030 2
PIN-SNAP,12MM 554 554DA1200 2
COLLAR,6.8X10X9.3 92152 92152-1799 4
COLLAR 92152A 92152-2128 2
BOLT,FLANGED,5X4.5 92154 92154-0974 2
BOLT,FLANGED,6X22 92154A 92154-1356 4
DAMPER 92161 92161-0590 2
DAMPER 92161A 92161-1615 1
DAMPER,12.5X20X24 92161B 92161-1634 2
DAMPER 92161C 92161-1656 2
DAMPER,17X6 92161D 92161-1708 2
DAMPER,10X40X10 92161E 92161-1775 2
DAMPER,10X34X10 92161F 92161-1920 4
SCREW,6X16 92172 92172-0284 16
SCREW,TAPPING,6X16 92172A 92172-0739 48
CLAMP,FUEL PIPE 92173 92173-1213 1
WASHER,6.5X16X2.0 92200 92200-1543 4
WASHER,6.5X16X0.5 92200A 92200-1769 2
