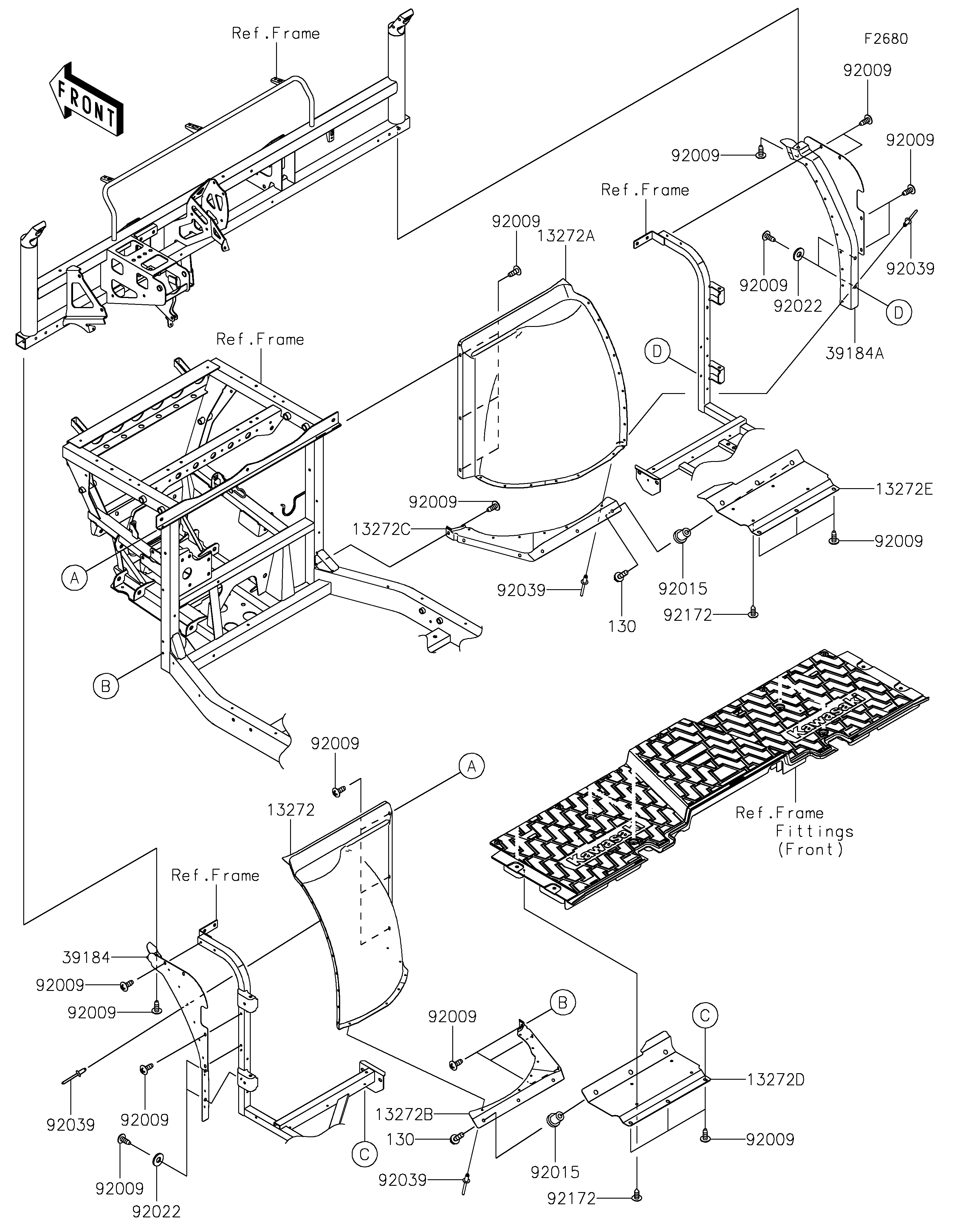

2021 MULE PRO-DXT™ EPS DIESEL - Guard(s)
130
130
13272
13272A
13272B
13272C
13272D
13272E
39184
39184A
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92022
92022
92039
92039
92039
92039
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X20 | 130 | 130BA0620 | 6 | ||
| PLATE | 13272 | 13272-2323 | 1 | ||
| PLATE | 13272A | 13272-2324 | 1 | ||
| PLATE | 13272B | 13272-2327 | 1 | ||
| PLATE | 13272C | 13272-2328 | 1 | ||
| PLATE,UNDER GUARD,LH | 13272D | 13272-2330 | 1 | ||
| PLATE,UNDER GUARD,RH | 13272E | 13272-2331 | 1 | ||
| BRACKET-ASSY,SIDE,LH | 39184 | 39184-0718 | 1 | ||
| BRACKET-ASSY,SIDE,RH | 39184A | 39184-0719 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 32 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 6 | ||
| WASHER,8.2X19X2 | 92022 | 92022-1533 | 4 | ||
| RIVET,4.8X7.6 | 92039 | 92039-0784 | 30 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 8 |
| BOLT-FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13272A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13272B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13272C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,UNDER GUARD,LH | |
| REF # | 13272D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,UNDER GUARD,RH | |
| REF # | 13272E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ASSY,SIDE,LH | |
| REF # | 39184 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ASSY,SIDE,RH | |
| REF # | 39184A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 32 |
| DESTINATION | |
| REMARKS | |
| NUT,RUBBER,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X19X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET,4.8X7.6 | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 30 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
