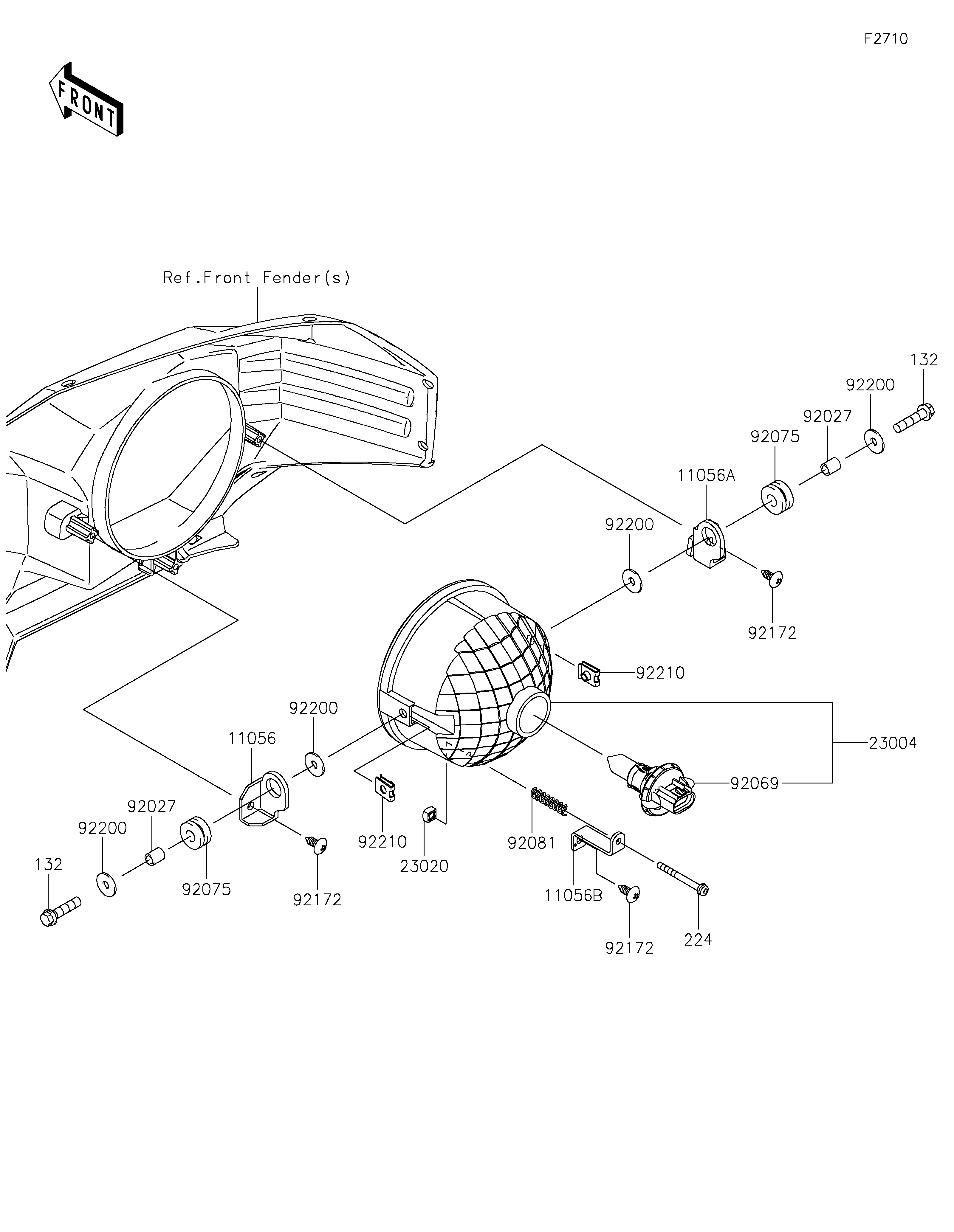

2021 MULE PRO-DXT™ EPS DIESEL - Headlight(s)
11056
11056A
11056B
132
132
224
23004
23020
92027
92027
92069
92075
92075
92081
92172
92172
92172
92200
92200
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11056 | 11056-2931 | 2 | ||
| BRACKET,RH | 11056A | 11056-2932 | 2 | ||
| BRACKET | 11056B | 11056-2933 | 2 | ||
| BOLT-FLANGED-SMALL,6X25 | 132 | 132BA0625 | 4 | ||
| SCREW-PAN-WP-CROS | 224 | 224AA0440 | 2 | ||
| LAMP-HEAD | 23004 | 23004-0387 | 2 | ||
| NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 2 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
| BULB,12V 60/55W,H13 | 92069 | 92069-0105 | 2 | ||
| DAMPER,10X24X12 | 92075 | 92075-1690 | 4 | ||
| SPRING,FOCUS ADJUST | 92081 | 92081-1896 | 2 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 6 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 8 | ||
| NUT | 92210 | 92210-1125 | 4 |
