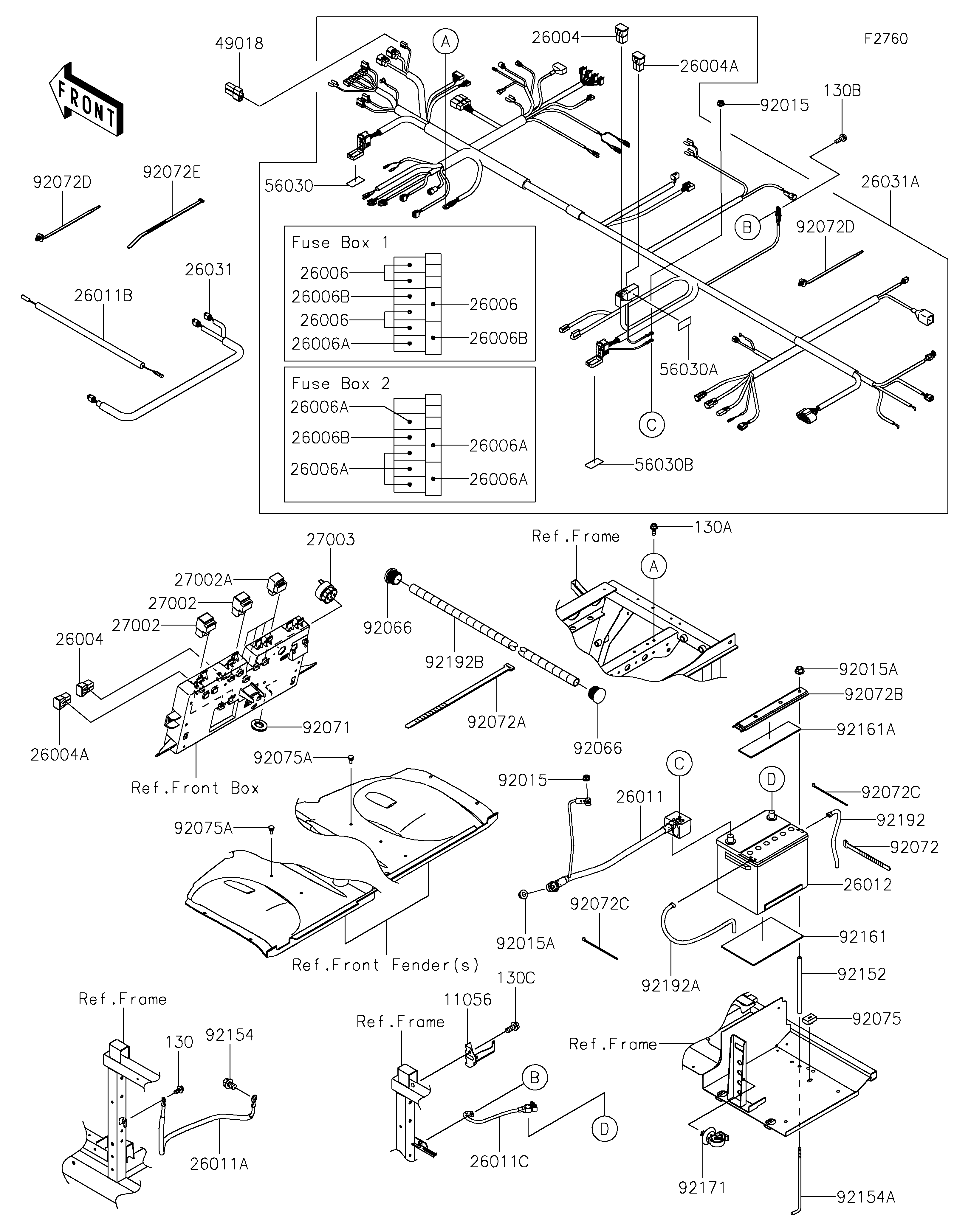

2021 MULE PRO-DXT™ EPS DIESEL - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
26004
26004
26004
26004
26004A
26004A
26004A
26004A
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002
27002
27002A
27002A
27003
27003
49018
49018
56030
56030
56030A
56030A
56030B
56030B
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92066
92066
92066
92066
92071
92071
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92072C
92072C
92072D
92072D
92072D
92072D
92072E
92072E
92075
92075
92075A
92075A
92075A
92075A
92152
92152
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92171
92171
92192
92192
92192A
92192A
130
130
130A
130A
130B
130B
130C
130C
92192B
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUSE 11056 11056-7478 1
FUSE-ASSY,60A 26004 26004-0024 2
FUSE-ASSY,40A 26004A 26004-1093 2
FUSE,MINI BLADE,10A,RED 26006 26006-0009 5
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 7
FUSE,MINI BLADE,20A,YELLOW 26006B 26006-3704 3
WIRE-LEAD,BATTERY(+) 26011 26011-0904 1
WIRE-LEAD,ENGINE GND 26011A 26011-0905 1
WIRE-LEAD,OIL PRESSURE SW. 26011B 26011-0906 1
WIRE-LEAD,BATTERY(-) 26011C 26011-0912 1
BATTERY,WET,(26R) 26012 26012-7501 1
HARNESS,SUB 26031 26031-2226 1
HARNESS,MAIN 26031A 26031-2828 1
RELAY-ASSY 27002 27002-0012 3
RELAY-ASSY 27002A 27002-1062 4
HORN,PARKING BUZZER 27003 27003-0116 1
DIODE 49018 49018-0006 1
LABEL,FUSE BOX1 56030 56030-0917 1
LABEL,FUSE BOX3 56030A 56030-0918 1
LABEL,FUSE BOX2 56030B 56030-0919 1
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,FLANGED,8MM 92015A 92015-1406 2
PLUG 92066 92066-0908 2
GROMMET,22X45X9 92071 92071-0729 1
BAND,L=123 92072 92072-030 1
BAND,L=218 92072A 92072-032 2
BAND 92072B 92072-0767 1
BAND,92X2.4 92072C 92072-0791 2
BAND,OS170-FT7(BLACK) 92072D 92072-1414 36
BAND,L=292.1 92072E 92072-3509 18
DAMPER 92075 92075-099 1
DAMPER,6X10X15 92075A 92075-1808 2
COLLAR,9.4X12.7X190.8 92152 92152-1852 1
BOLT,FLANGED,10X14 92154 92154-1383 1
BOLT,BATTERY 92154A 92154-1650 1
DAMPER 92161 92161-0578 1
DAMPER 92161A 92161-1753 1
CLAMP 92171 92171-0453 1
TUBE,BREATHER,7X10X240 92192 92192-1646 1
TUBE,BREATHER,7X10X450 92192A 92192-1694 1
BOLT-FLANGED,6X12 130 130BA0612 1
BOLT-FLANGED,6X16 130A 130BA0616 1
BOLT-FLANGED,6X18 130B 130BA0618 1
BOLT-FLANGED,8X20 130C 130BA0820 1
TUBE,CONVOLUTED 92192B 92192-1814 1
