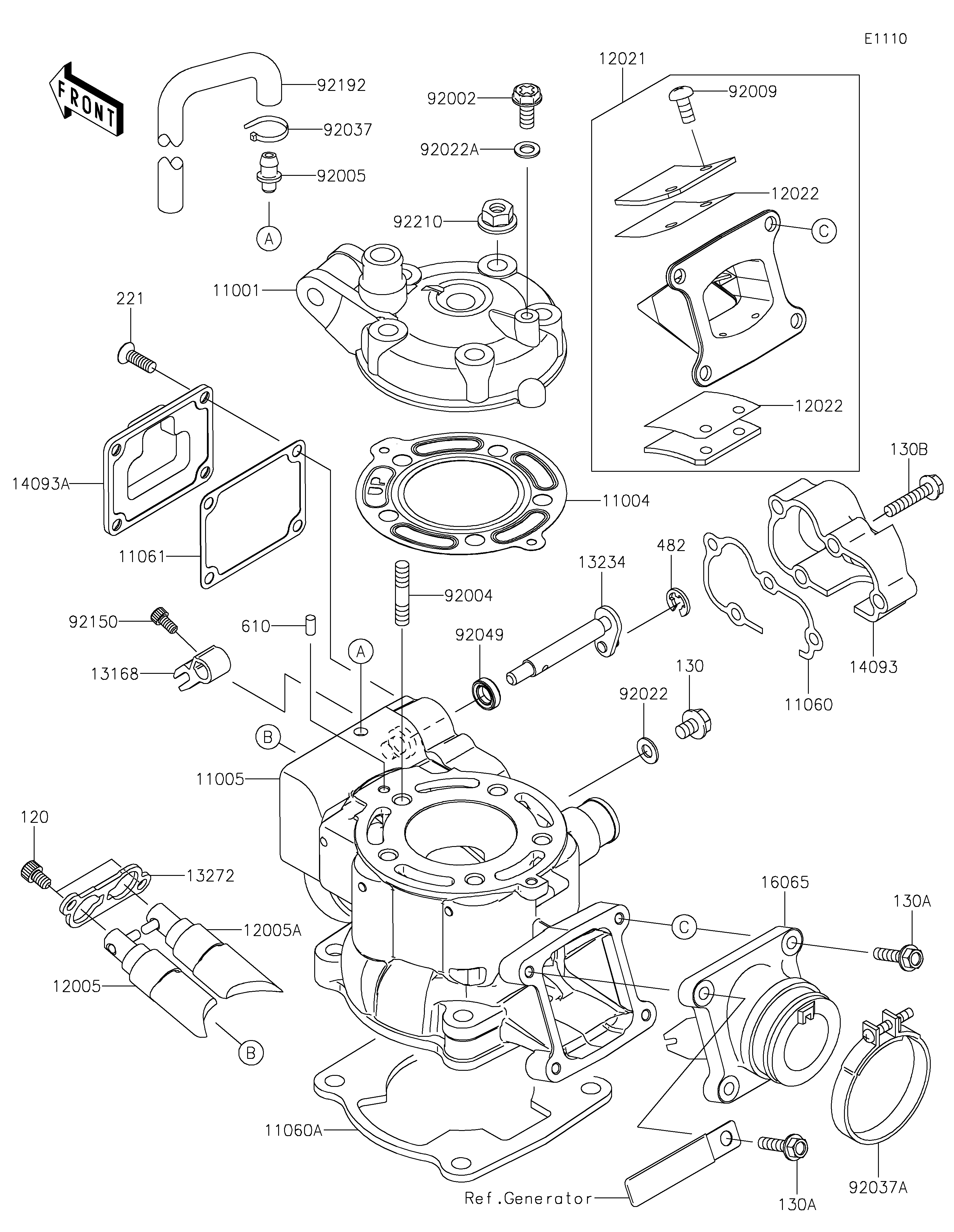

2021 KX™85 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11001
11004
11005
11060
11060A
11061
120
12005
12005A
12021
12022
12022
130
130A
130A
130B
13168
13234
13272
14093
14093A
16065
221
482
610
92002
92004
92005
92009
92022
92022A
92037
92037A
92049
92150
92192
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-0771 1
GASKET-HEAD 11004 11004-0760 1
CYLINDER-ENGINE 11005 11005-0621 1
GASKET,GOVERNOR COVER 11060 11060-1778 1
GASKET,CYLINDER BASE 11060A 11060-1779 1
GASKET 11061 11061-0889 1
BOLT-SOCKET,5X10 120 120CA0510 2
VALVE-EXHAUST 12005 12005-0726 1
VALVE-EXHAUST 12005A 12005-0728 1
VALVE-ASSY-REED 12021 12021-1123 1
VALVE-REED 12022 12022-1084 2
BOLT-FLANGED,6X8 130 130AA0608 1
BOLT-FLANGED,5X20 130A 130BA0520 4
BOLT-FLANGED,5X25 130B 130BA0525 4
LEVER 13168 13168-0779 1
SHAFT-COMP 13234 13234-0048 1
PLATE 13272 13272-1450 1
COVER 14093 14093-0003 1
COVER 14093A 14093-0046 1
HOLDER-CARBURETOR 16065 16065-1372 1
SCREW-CSK-CROS,5X12 221 221AA0512 4
CIRCLIP-TYPE-E,5MM 482 482J5000 1
ROLLER,4X8 610 610A0408 2
BOLT,6X10 92002 92002-1222 1
STUD,8X33 92004 92004-1253 5
FITTING 92005 92005-0050 1
SCREW,REED VALVE 92009 92009-1014 4
WASHER,6.1X12X1 92022 92022-077 1
WASHER,6.2X11X1 92022A 92022-304 1
CLAMP 92037 92037-1173 1
CLAMP 92037A 92037-1843 1
SEAL-OIL,SD088144 92049 92049-1238 1
BOLT,SOCKET,4X8 92150 92150-1888 1
TUBE,L=426.3 92192 92192-0265 1
NUT,8MM 92210 92210-0076 5
