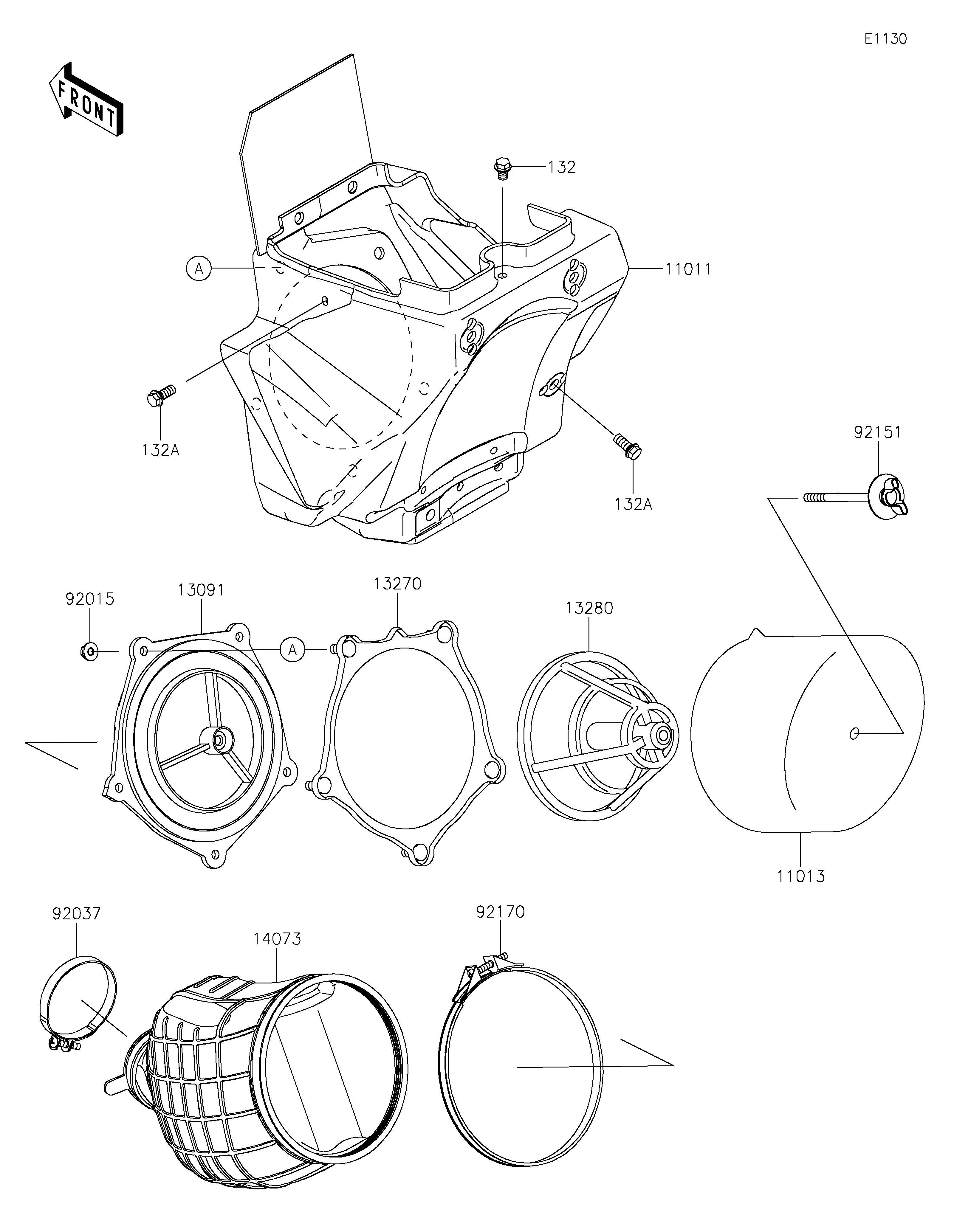

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1612 1
ELEMENT-AIR FILTER 11013 11013-0736 1
HOLDER 13091 13091-1697 1
BOLT-FLANGED-SMALL,6X8 132 132BA0608 1
PLATE,AIR FILTER 13270 13270-1905 1
HOLDER,ELEMENT 13280 13280-0768 1
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 2
DUCT 14073 14073-1785 1
NUT,FLANGED,5MM 92015 92015-1259 5
CLAMP,55MM 92037 92037-1486 1
BOLT,AIR FILTER 92151 92151-1256 1
CLAMP,126MM 92170 92170-1194 1
