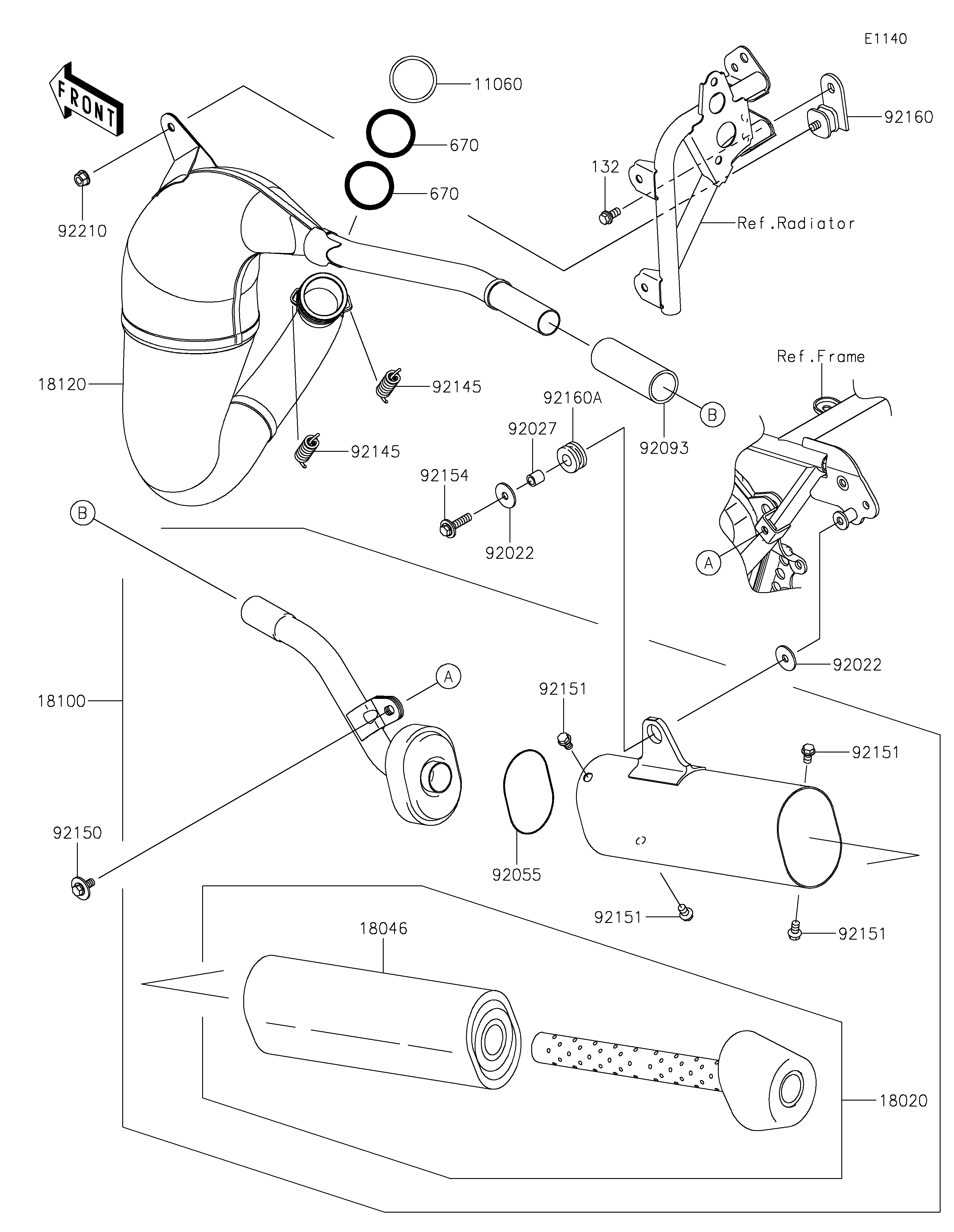

Parts Diagrams |
11060
132
18020
18046
18100
18120
670
670
92022
92022
92027
92055
92093
92145
92145
92150
92151
92151
92151
92151
92154
92160
92160A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST HOLDER | 11060 | 11060-1842 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 | ||
| BAFFLE | 18020 | 18020-1272 | 1 | ||
| WOOL | 18046 | 18046-1559 | 1 | ||
| BODY-ASSY-MUFFLER | 18100 | 18100-0016 | 1 | ||
| CHAMBER-EXHAUST | 18120 | 18120-0017 | 1 | ||
| O RING | 670 | 670E3034 | 2 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 2 | ||
| COLLAR,6.8X10X10.5 | 92027 | 92027-120 | 1 | ||
| RING-O,BAFFLE PIPE | 92055 | 92055-1461 | 1 | ||
| SEAL,MUFFLER JOINT | 92093 | 92093-1200 | 1 | ||
| SPRING,EXHAUST CONNECTING | 92145 | 92145-1340 | 2 | ||
| BOLT,FLANGED,6X14,WASHER | 92150 | 92150-1392 | 1 | ||
| BOLT,FLANGED,6X10 | 92151 | 92151-1822 | 4 | ||
| BOLT,FLANGED,6X25 | 92154 | 92154-0520 | 1 | ||
| DAMPER,MUFFLER,FR | 92160 | 92160-1176 | 1 | ||
| DAMPER | 92160A | 92160-1913 | 1 | ||
| NUT,FLANGED,6MM | 92210 | 92210-0630 | 1 |
| GASKET,EXHAUST HOLDER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAFFLE | |
| REF # | 18020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOOL | |
| REF # | 18046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-ASSY-MUFFLER | |
| REF # | 18100 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAMBER-EXHAUST | |
| REF # | 18120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X10.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,BAFFLE PIPE | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,MUFFLER JOINT | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,EXHAUST CONNECTING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14,WASHER | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER,FR | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
