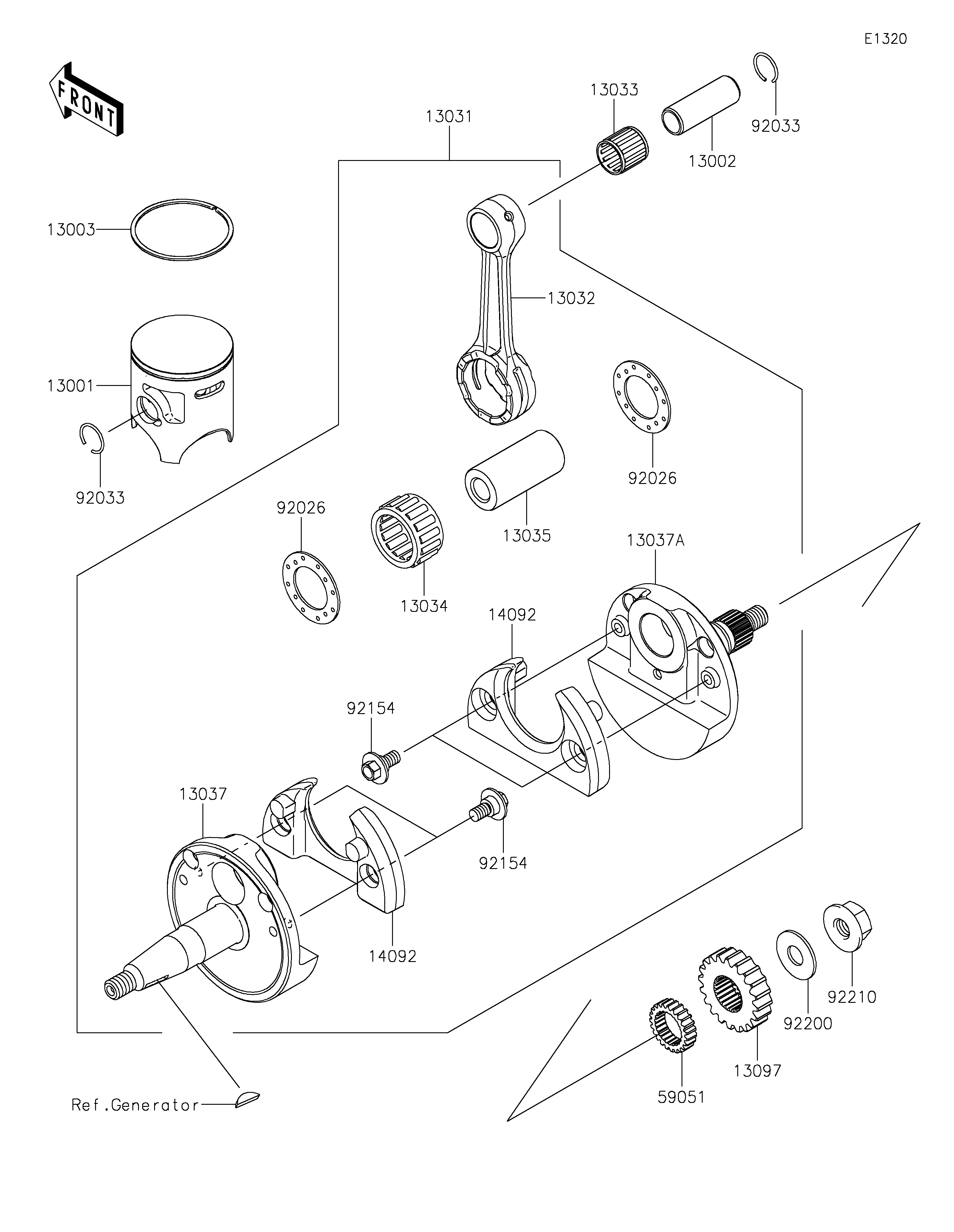

Parts Diagrams |
13001
13002
13003
13031
13032
13033
13034
13035
13037
13037A
13097
14092
14092
59051
92026
92026
92033
92033
92154
92154
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PISTON-ENGINE | 13001 | 13001-0744 | 1 | ||
PIN-PISTON | 13002 | 13002-0040 | 1 | ||
RING-PISTON TOP | 13003 | 13003-1441 | 1 | ||
CRANKSHAFT-COMP | 13031 | 13031-0771 | 1 | ||
ROD-CONNECTING | 13032 | 13032-1230 | 1 | ||
BEARING-SMALL END | 13033 | 13033-1060 | 1 | ||
BEARING-BIG END,SKTZ 222916EGS | 13034 | 13034-0013 | 1 | ||
PIN-CRANK | 13035 | 13035-1054 | 1 | ||
CRANKSHAFT,LH | 13037 | 13037-0796 | 1 | ||
CRANKSHAFT,RH | 13037A | 13037-0798 | 1 | ||
GEAR-PRIMARY SPUR,20T | 13097 | 13097-1148 | 1 | ||
COVER | 14092 | 14092-1081 | 2 | ||
GEAR-SPUR,PUMP,23T | 59051 | 59051-1146 | 1 | ||
SPACER,22.2X37X1.0 | 92026 | 92026-1136 | 2 | ||
RING-SNAP | 92033 | 92033-0005 | 2 | ||
BOLT,FLANGED | 92154 | 92154-1175 | 4 | ||
WASHER,10.2X25X1.5 | 92200 | 92200-0213 | 1 | ||
NUT,FLANGED,10MM | 92210 | 92210-0838 | 1 |
PISTON-ENGINE | |
REF # | 13001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-PISTON | |
REF # | 13002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-PISTON TOP | |
REF # | 13003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP | |
REF # | 13031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-CONNECTING | |
REF # | 13032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-SMALL END | |
REF # | 13033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BIG END,SKTZ 222916EGS | |
REF # | 13034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-CRANK | |
REF # | 13035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT,LH | |
REF # | 13037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT,RH | |
REF # | 13037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-PRIMARY SPUR,20T | |
REF # | 13097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14092 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GEAR-SPUR,PUMP,23T | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,22.2X37X1.0 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.2X25X1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
