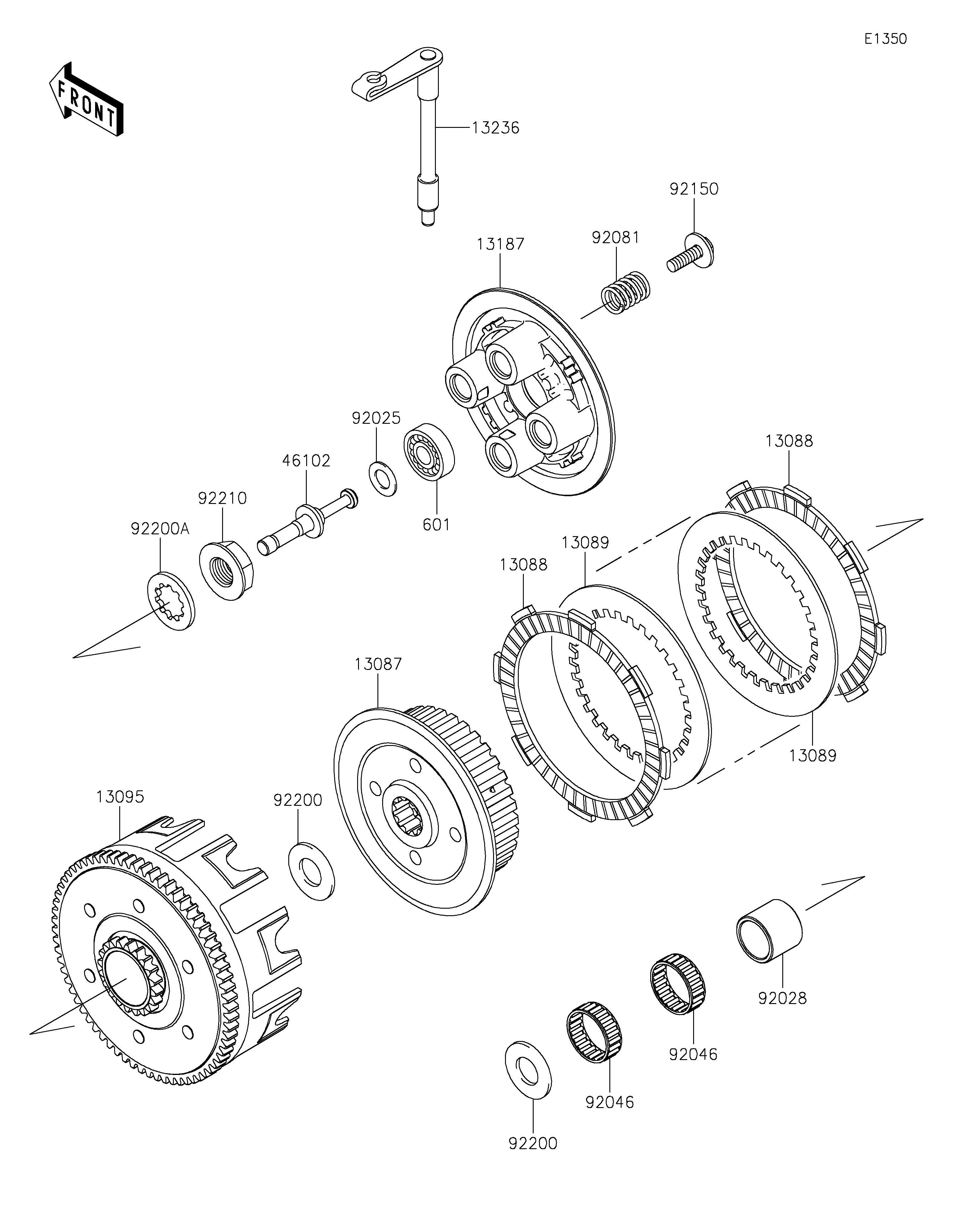

Parts Diagrams |
13087
13088
13088
13089
13089
13095
13187
13236
46102
601
92025
92028
92046
92046
92081
92150
92200
92200
92200A
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HUB-CLUTCH | 13087 | 13087-1170 | 1 | ||
PLATE-FRICTION,ID=91 | 13088 | 13088-1016 | 6 | ||
PLATE-CLUTCH | 13089 | 13089-1120 | 5 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1406 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-1013 | 1 | ||
LEVER-COMP,RELEASE | 13236 | 13236-1298 | 1 | ||
ROD,CLUTCH RELEASE | 46102 | 46102-1409 | 1 | ||
BEARING-BALL | 601 | 601A6001 | 1 | ||
SHIM | 92025 | 92025-1780 | 1 | ||
BUSHING,20X25X21.1 | 92028 | 92028-1811 | 1 | ||
BEARING-NEEDLE,KT252910EG | 92046 | 92046-1254 | 2 | ||
SPRING,CLUTCH | 92081 | 92081-1492 | 4 | ||
BOLT,6X20,WASHER | 92150 | 92150-1715 | 4 | ||
WASHER,20.3X33X2.0 | 92200 | 92200-1351 | 2 | ||
WASHER,20X30X2.6 | 92200A | 92200-1352 | 1 | ||
NUT,16MM | 92210 | 92210-1113 | 1 |
HUB-CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION,ID=91 | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATING | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,RELEASE | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,CLUTCH RELEASE | |
REF # | 46102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHIM | |
REF # | 92025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,20X25X21.1 | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,KT252910EG | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X20,WASHER | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,20.3X33X2.0 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,20X30X2.6 | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,16MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
