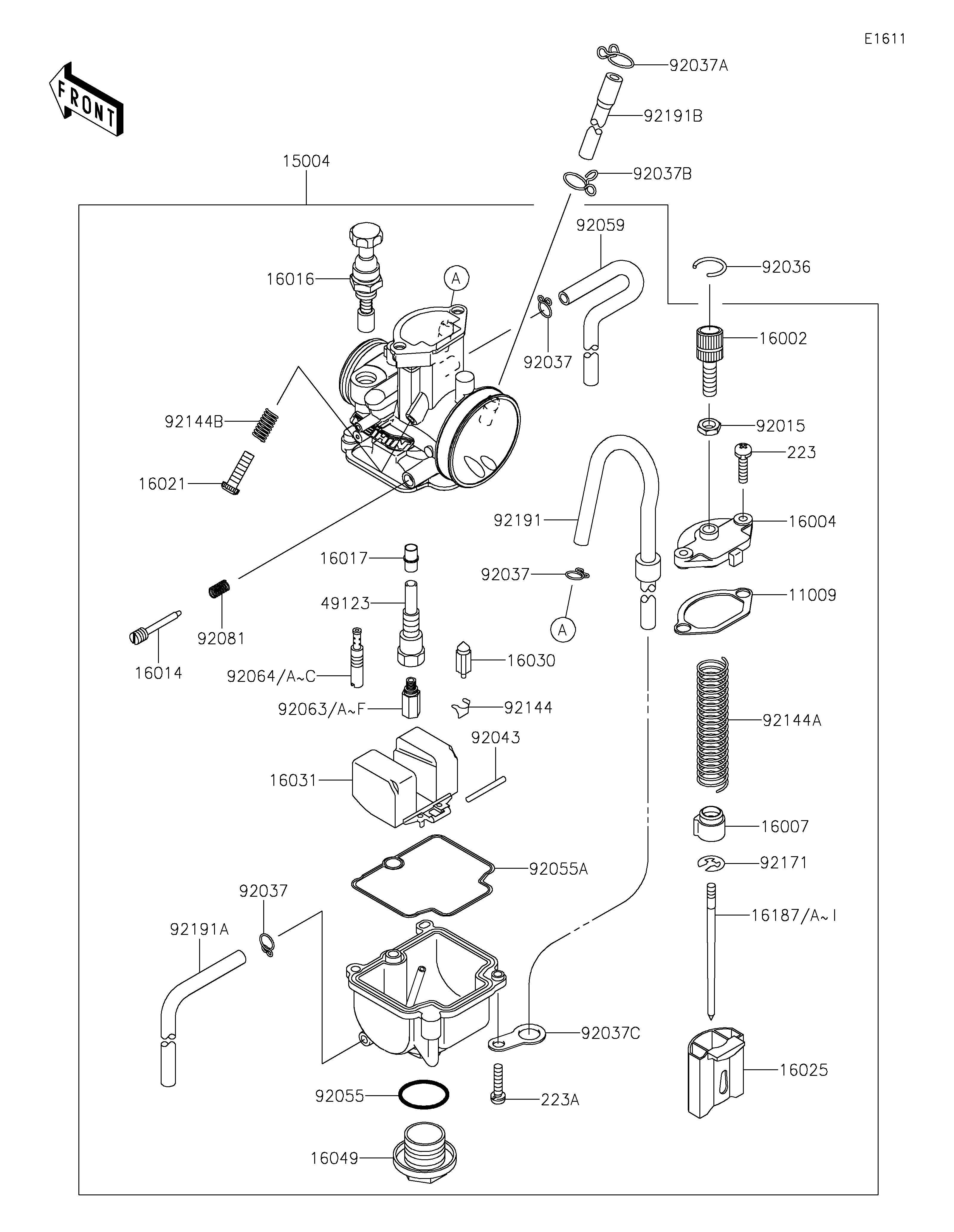

2021 KX™85 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
15004
15004
16002
16002
16004
16004
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16025
16025
16030
16030
16031
16031
16049
16049
16187
16187
16187A
16187A
16187B
16187B
16187C
16187C
16187D
16187D
16187E
16187E
16187F
16187F
16187G
16187G
16187H
16187H
16187I
16187I
49123
49123
92015
92015
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92043
92043
223
223
223A
223A
92055
92055
92055A
92055A
92059
92059
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92063F
92063F
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92081
92081
92144
92144
92144A
92144A
92144B
92144B
92171
92171
92191
92191
92191A
92191A
92191B
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MIXING CHAMBER 11009 11009-1759 1
CARBURETOR-ASSY,PWK28 15004 15004-0856 1
ADJUSTER-CABLE 16002 16002-1056 1
CAP-CHAMBER,MIXING 16004 16004-1065 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-1155 1
SCREW-PILOT AIR 16014 16014-1058 1
PLUNGER,STARTER 16016 16016-1075 1
JET-NEEDLE 16017 16017-1431 1
SCREW-THROTTLE STOP 16021 16021-1161 1
VALVE-THROTTLE,CA3.5 16025 16025-1220 1
VALVE-FLOAT 16030 16030-1064 1
FLOAT 16031 16031-1065 1
COVER-MAIN JET 16049 16049-1051 1
NEEDLE-JET,NRJA 16187 16187-0557 1 (OPTION)
NEEDLE-JET,NRJB 16187A 16187-0558 1 (OPTION)
NEEDLE-JET,NRJC 16187B 16187-0559 1
NEEDLE-JET,NRJD 16187C 16187-0560 1 (OPTION)
NEEDLE-JET,NRJE 16187D 16187-0561 1 (OPTION)
NEEDLE-JET,NRKA 16187E 16187-0562 1 (OPTION)
NEEDLE-JET,NRKB 16187F 16187-0563 1 (OPTION)
NEEDLE-JET,NRKC 16187G 16187-0564 1 (OPTION)
NEEDLE-JET,NRKD 16187H 16187-0565 1 (OPTION)
NEEDLE-JET,NRKE 16187I 16187-0566 1 (OPTION)
HOLDER-MAIN JET 49123 49123-1054 1
NUT,CABLE ADJUST LOCK 92015 92015-1574 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1396 3
CLAMP,TUBE 92037A 92037-147 1
CLAMP 92037B 92037-1712 1
CLAMP,HOSE 92037C 92037-1969 1
PIN,FLOAT 92043 92043-1207 1
SCREW-PAN-WS-CROS,4X14 223 223AB0414 2
SCREW-PAN-WS-CROS,4X16 223A 223AB0416 2
RING-O,MAIN JET COVER 92055 92055-1167 1
RING-O,FLOAT CHAMBER 92055A 92055-1389 1
TUBE,4X7X360 92059 92059-1941 1
JET-MAIN,#135 92063 92063-1338 1 (OPTION)
JET-MAIN,#138 92063A 92063-1359 1 (OPTION)
JET-MAIN,#140 92063B 92063-1360 1
JET-MAIN,#142 92063C 92063-1361 1 (OPTION)
JET-MAIN,#145 92063D 92063-1362 1 (OPTION)
JET-MAIN,#148 92063E 92063-1363 1 (OPTION)
JET-MAIN,#150 92063F 92063-1364 1 (OPTION)
JET-PILOT,#35 92064 92064-1138 1 (OPTION)
JET-PILOT,#38 92064A 92064-1139 1
JET-PILOT,#40 92064B 92064-1140 1 (OPTION)
JET-PILOT,#42 92064C 92064-1141 1 (OPTION)
SPRING,ADJUST SCREW 92081 92081-1555 1
SPRING,FLOAT VALVE 92144 92144-1178 1
SPRING,THROTTLE VALVE 92144A 92144-1566 1
SPRING,THROTTLE STOP SCREW 92144B 92144-1782 1
CLAMP 92171 92171-1323 1
TUBE,4X7X560 92191 92191-1243 1
TUBE,4X7X420 92191A 92191-1591 1
TUBE 92191B 92191-1610 1
