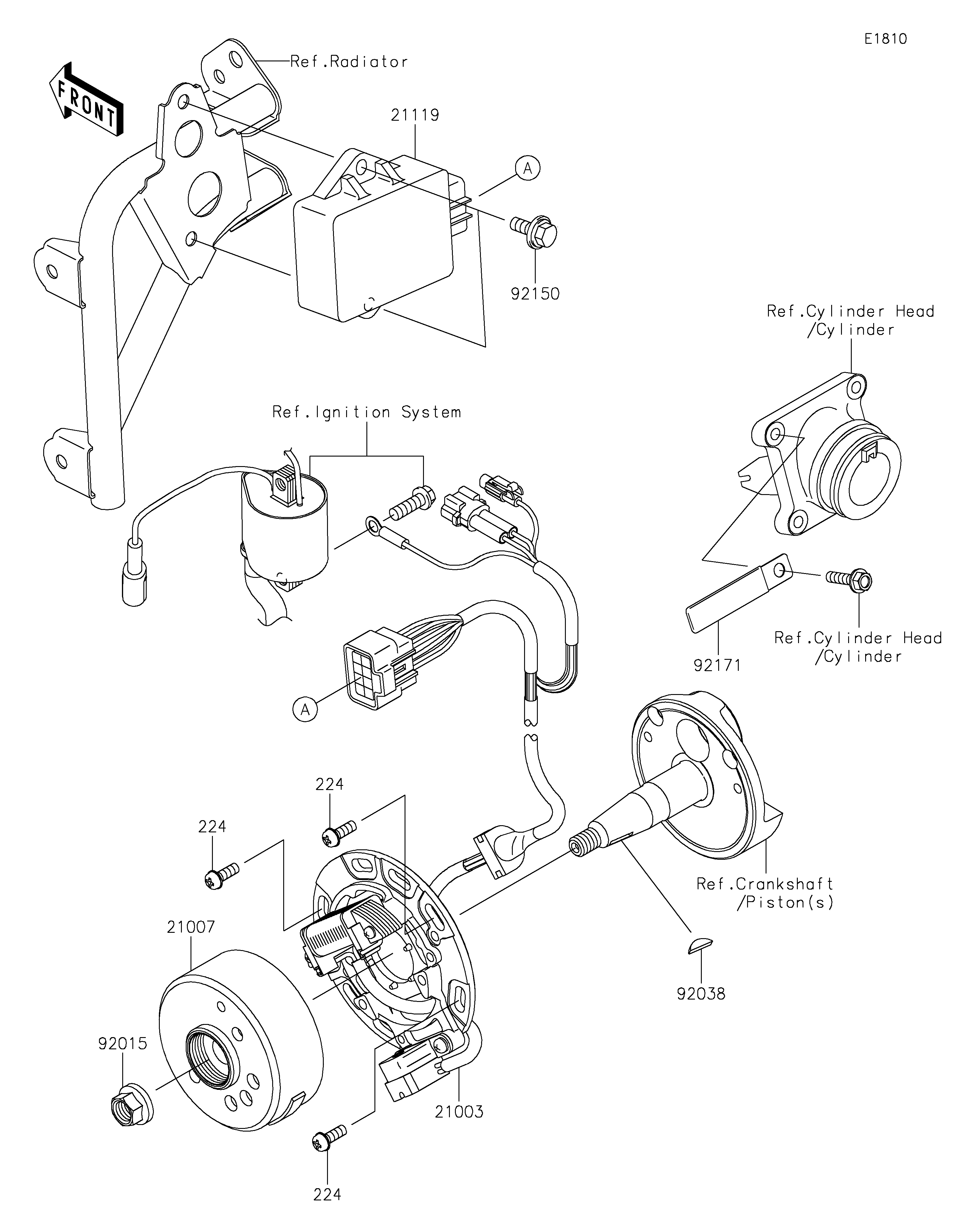

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-0150 1
ROTOR,I=4.0 21007 21007-0073 1
IGNITER 21119 21119-0587 1
SCREW-PAN-WP-CROS,6X14 224 224AA0614 3
NUT,FLANGED,10MM 92015 92015-077 1
KEY,WOODRUFF 92038 92038-001 1
BOLT,FLANGED,6X16 92150 92150-1506 2
CLAMP,L=60 92171 92171-0652 1
