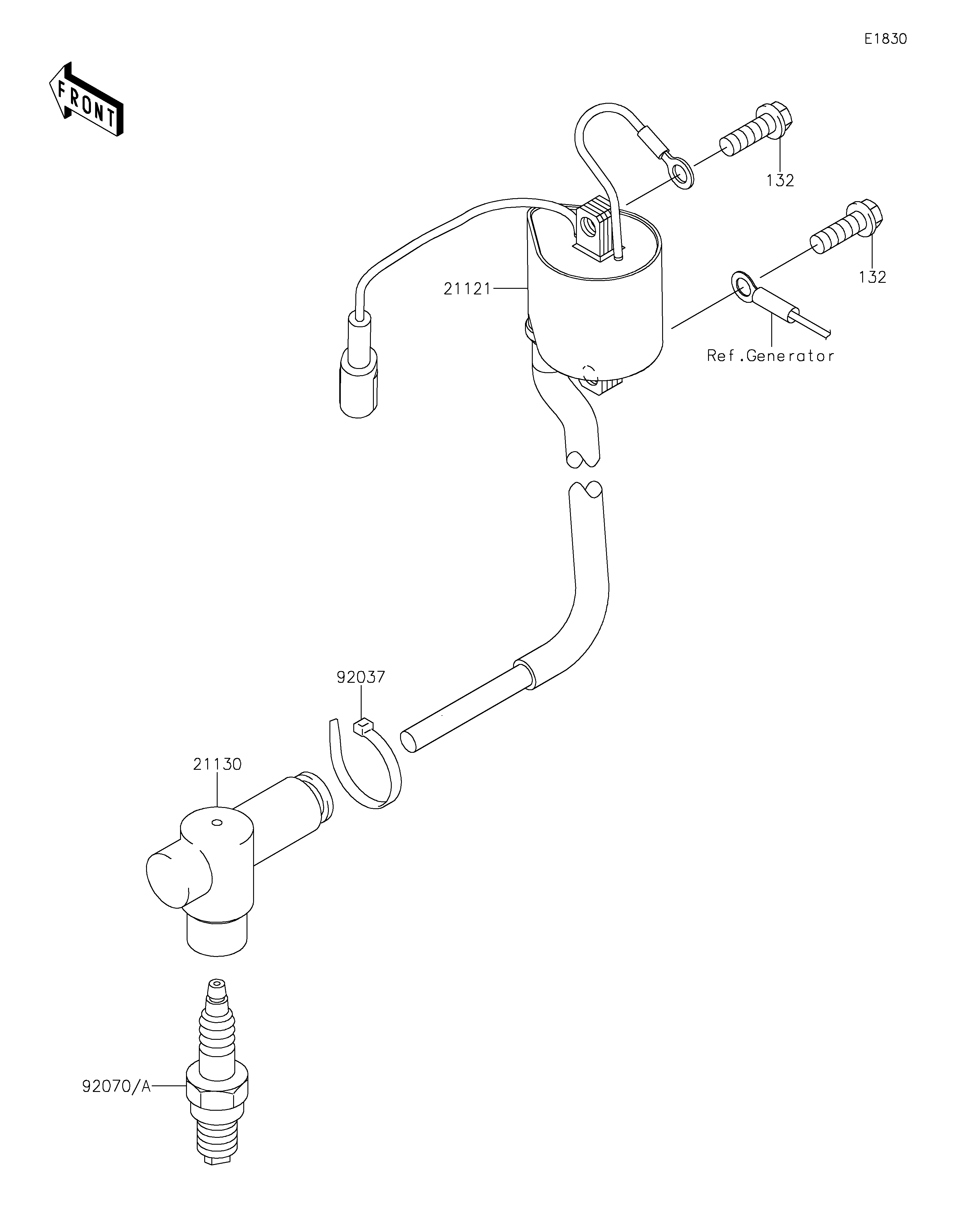

132
132
21121
21130
92037
92070
92070A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X18 132 132BA0618 2
COIL-IGNITION 21121 21121-0722 1
CAP-SPARK PLUG 21130 21130-1077 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,BR9EVX(NGK),SOLID 92070 92070-1228 1 (OPTION)
PLUG-SPARK,R6252K-105NGK,SOLID 92070A 92070-1241 1
