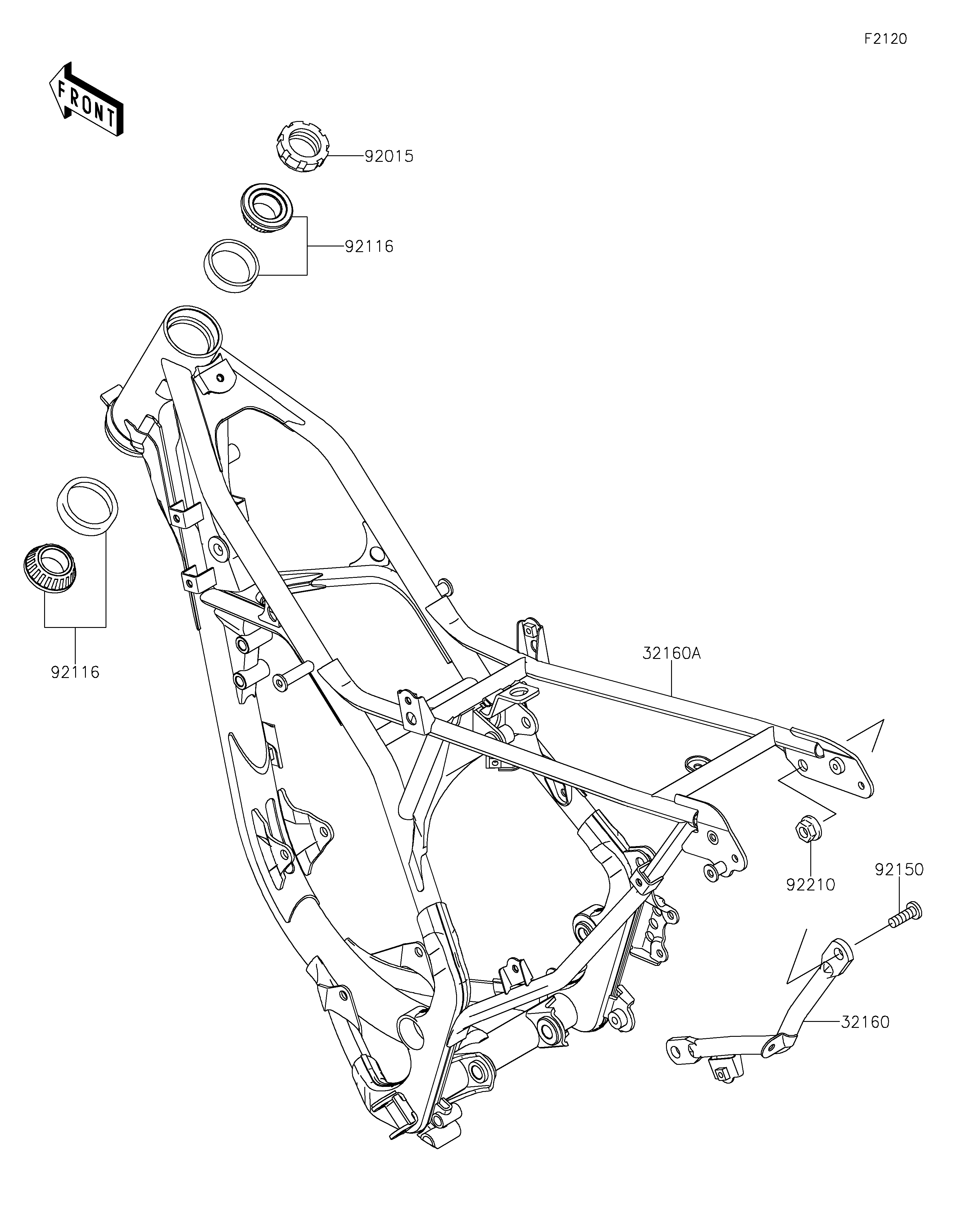

32160
32160A
92015
92116
92116
92150
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,SUB,F.S.BLACK 32160 32160-0670-18R 1
FRAME-COMP,MAIN,F.S.BLACK 32160A 32160-0671-18R 1
NUT,STEERING STEM,25MM 92015 92015-1684 1
BEARING-ROLLER,H1-CAP32005JRRS 92116 92116-1065 2
BOLT,SOCKET,10X23 92150 92150-1221 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
