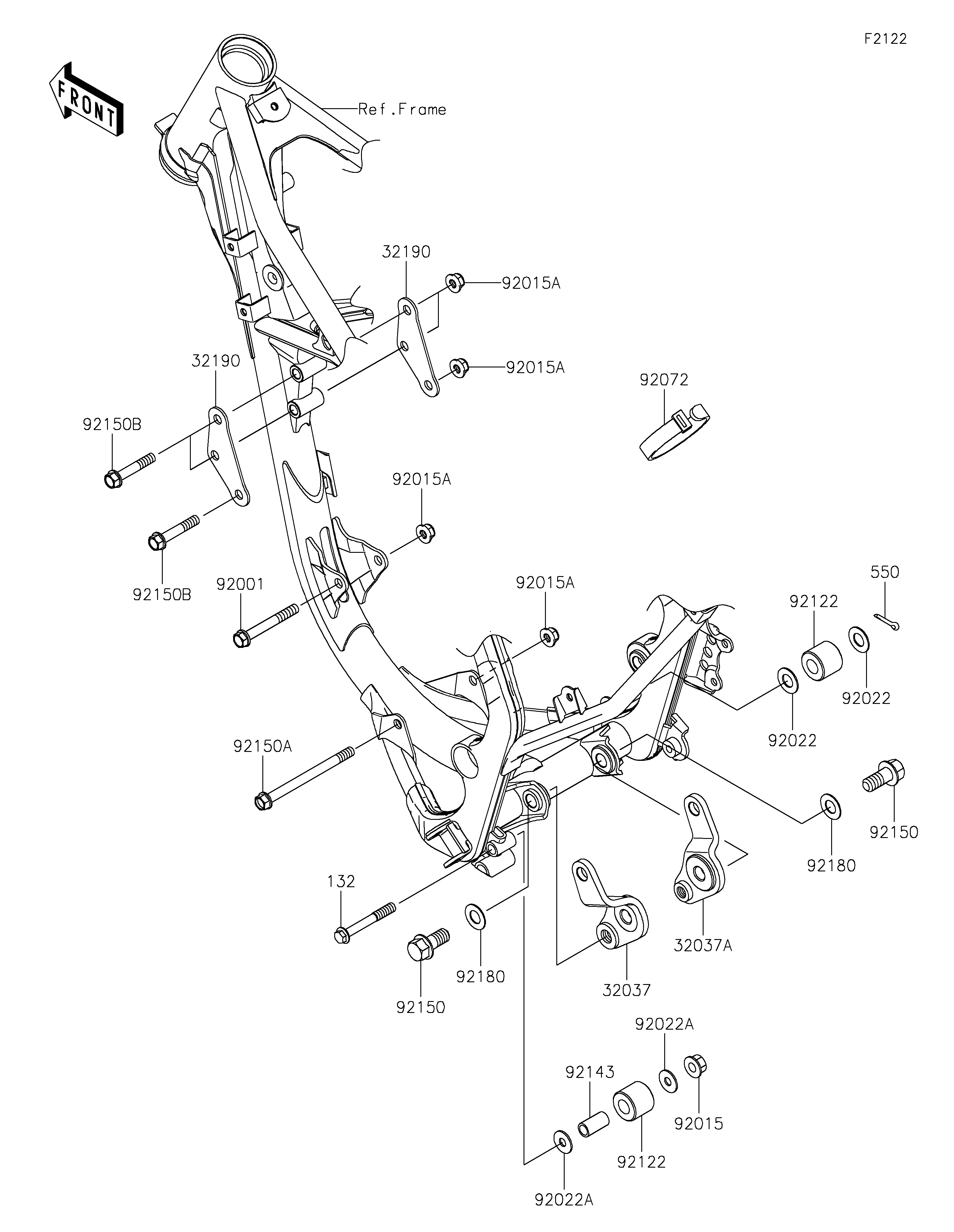

2021 KX™85 - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
132
32037
32037A
32190
32190
550
92001
92015
92015A
92015A
92015A
92015A
92022
92022
92022A
92022A
92072
92122
92122
92143
92150
92150
92150A
92150B
92150B
92180
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X60 132 132BA0860 1
BRACKET-SHOCKABSORBER 32037 32037-1552 1
BRACKET-SHOCKABSORBER 32037A 32037-1553 1
BRACKET-ENGINE,HEAD 32190 32190-1119 2
PIN-COTTER,2.5X18 550 550AA2518 1
BOLT,FLANGED,8X63 92001 92001-1006 1
NUT,FLANGED,8MM 92015 92015-1406 1
NUT,8MM 92015A 92015-1432 5
WASHER 92022 92022-107 2
WASHER,8.5X20X1.6 92022A 92022-1561 2
BAND,L=140 92072 92072-1293 4
ROLLER,CHAIN GUIDE 92122 92122-1213 2
COLLAR,9.5X12.7X25 92143 92143-1432 1
BOLT,FLANGED,12X27 92150 92150-1359 2
BOLT,FLANGED,8X105 92150A 92150-1482 1
BOLT,FLANGED,8X45 92150B 92150-1487 3
SHIM,12.5X24X0.5 92180 92180-1060 2
