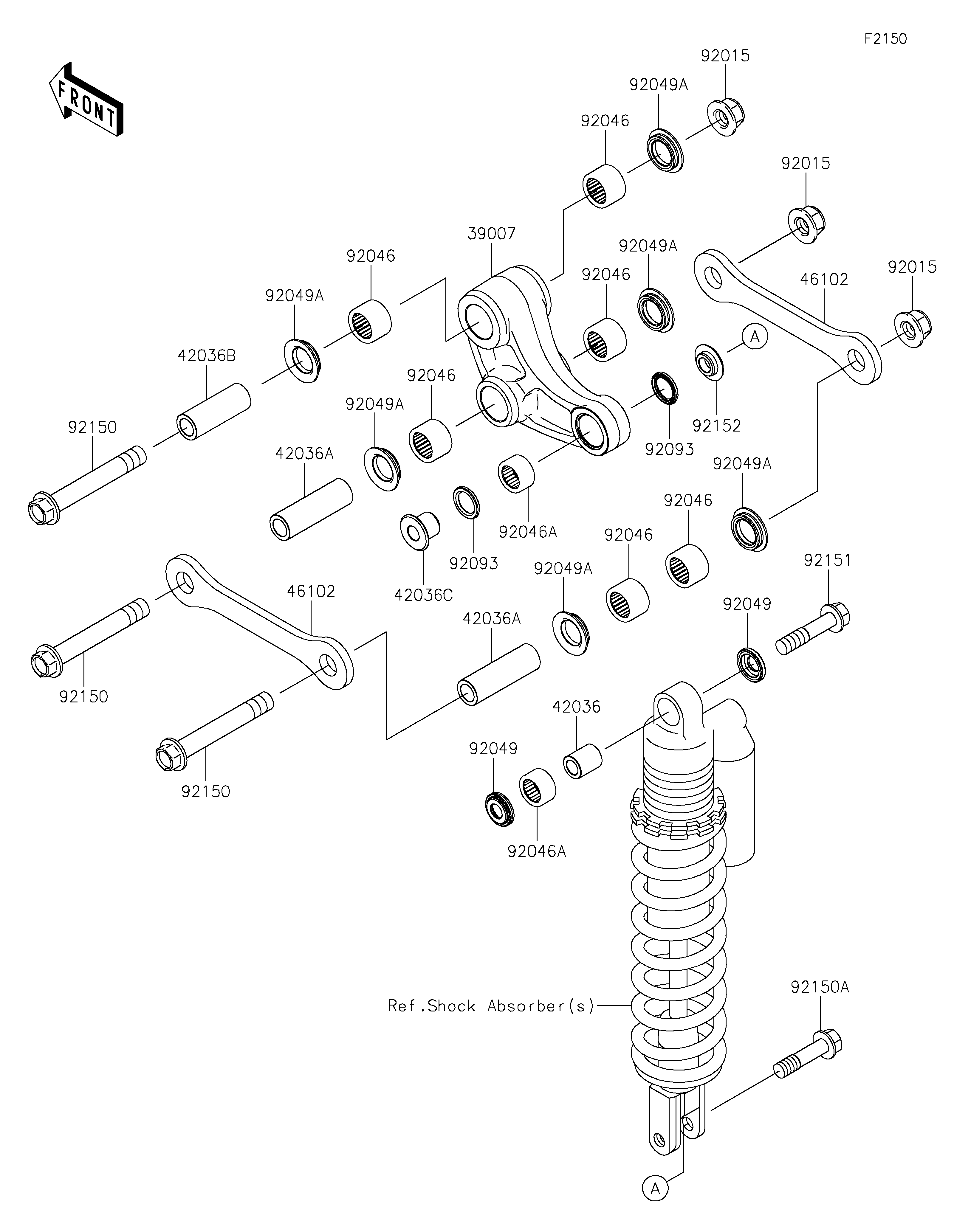

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
39007
42036
42036A
42036A
42036B
42036C
46102
46102
92015
92015
92015
92046
92046
92046
92046
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92093
92093
92150
92150
92150
92150A
92151
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,UNI TRAK | 39007 | 39007-1261 | 1 | ||
| SLEEVE,10X16X19.3 | 42036 | 42036-0030 | 1 | ||
| SLEEVE,12X18X57 | 42036A | 42036-1273 | 2 | ||
| SLEEVE,12X18X49 | 42036B | 42036-1274 | 1 | ||
| SLEEVE | 42036C | 42036-1351 | 1 | ||
| ROD,SUSPENSION | 46102 | 46102-1291 | 2 | ||
| NUT,LOCK,FLANGED,12MM | 92015 | 92015-1433 | 3 | ||
| BEARING-NEEDLE,18BM2416 | 92046 | 92046-1144 | 6 | ||
| BEARING-NEEDLE,16BM2212 | 92046A | 92046-1192 | 2 | ||
| SEAL-OIL | 92049 | 92049-0069 | 2 | ||
| SEAL-OIL | 92049A | 92049-1328 | 6 | ||
| SEAL | 92093 | 92093-1436 | 2 | ||
| BOLT,FLANGED,12X83 | 92150 | 92150-1412 | 3 | ||
| BOLT,FLANGED,10X40 | 92150A | 92150-1711 | 1 | ||
| BOLT,FLANGED,10X45 | 92151 | 92151-1413 | 1 | ||
| COLLAR | 92152 | 92152-1139 | 1 |
| ARM-SUSP,UNI TRAK | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,10X16X19.3 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,12X18X57 | |
| REF # | 42036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,12X18X49 | |
| REF # | 42036B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE | |
| REF # | 42036C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SUSPENSION | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,12MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,18BM2416 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,16BM2212 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X83 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X40 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X45 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
