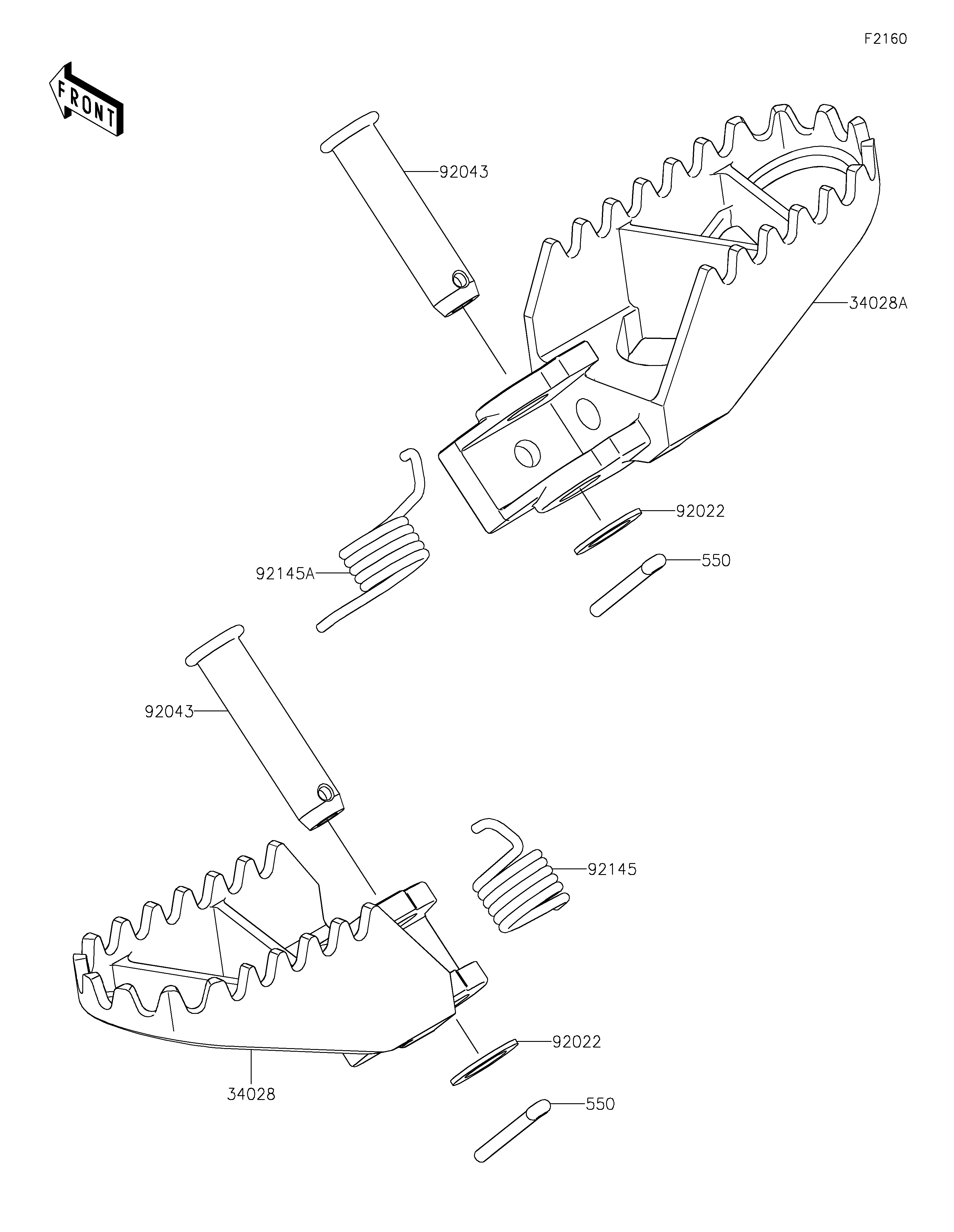

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,LH,SILVER 34028 34028-1498-CE 1
STEP,RH,SILVER 34028A 34028-1499-CE 1
PIN-COTTER,3.0X20 550 550S3020 2
WASHER,10.2X16X1 92022 92022-1829 2
PIN,10X37.5 92043 92043-1643 2
SPRING,STEP,LH 92145 92145-0951 1
SPRING,STEP,RH 92145A 92145-0952 1
