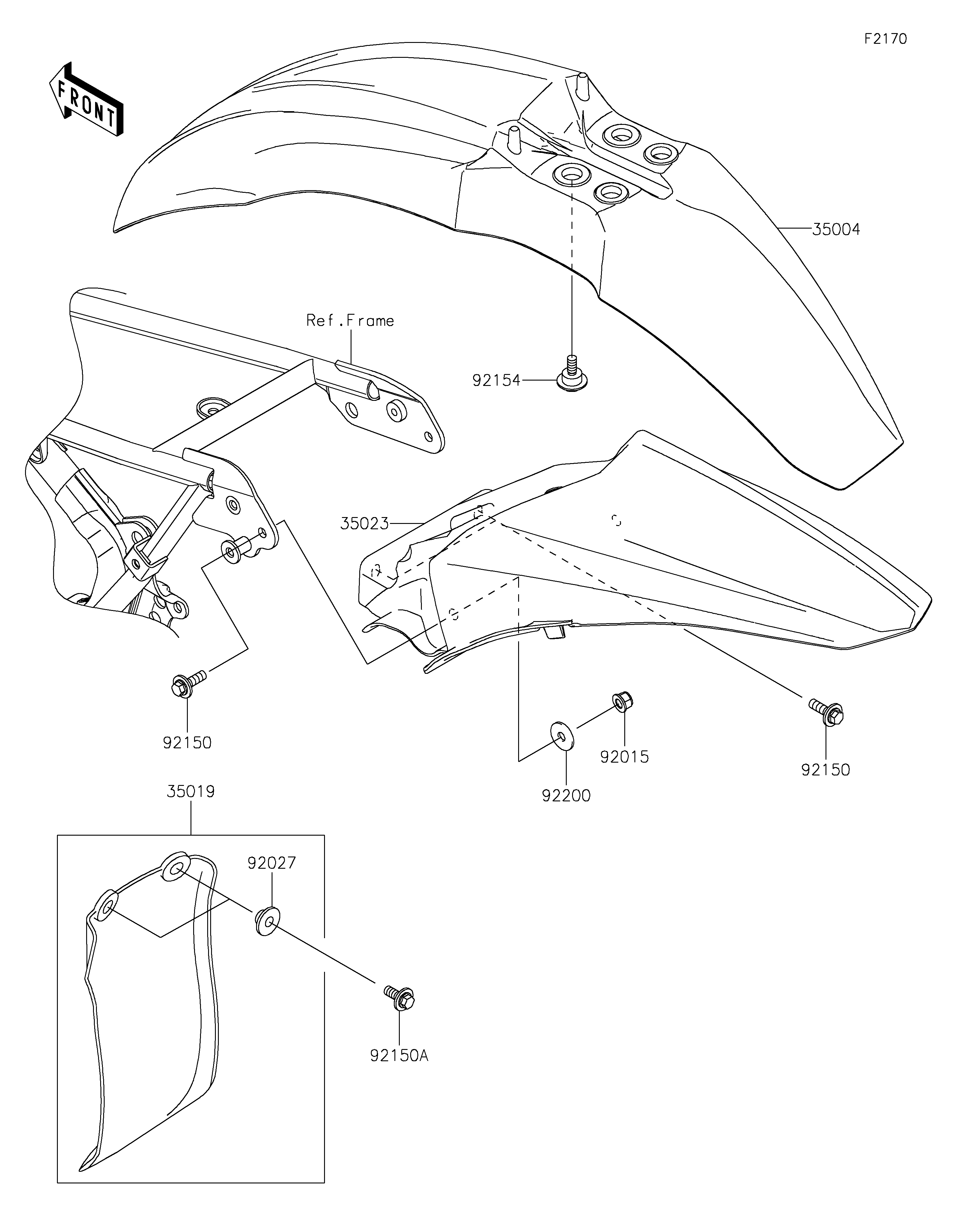

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-0329-290 1
FLAP,REAR FENDER 35019 35019-0080 1
FENDER-REAR,L.GREEN 35023 35023-0374-290 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
COLLAR 92027 92027-1757 2
BOLT,FLANGED,6X20 92150 92150-1339 4
BOLT,FLANGED,6X16 92150A 92150-1506 2
BOLT,6X18.5 92154 92154-0972 4
WASHER,6.5X20X1.6 92200 92200-0283 2
